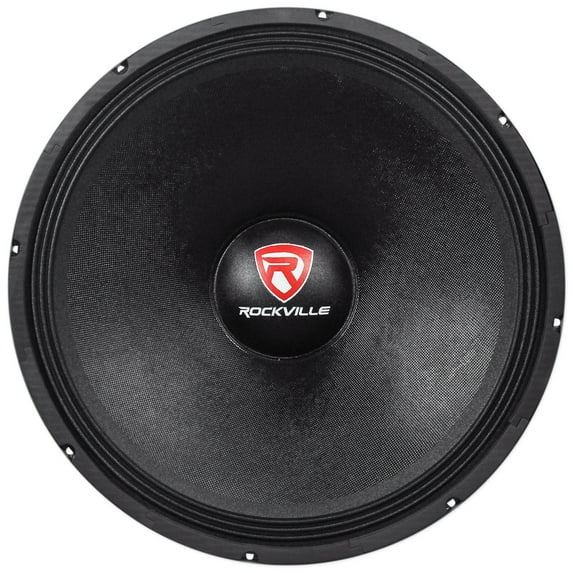

Rockville RVW1800P4 1800w 18" Raw DJ Subwoofer 4 Ohm Sub Woofer 107OZ Magnet

Package Includes:

(1) Rockville RVW1800P4 1800w 18" Raw DJ Subwoofer 4 Ohm Sub Woofer 107OZ Magnet

Unboxing Video For RVW1800P4:

Designed for high power applications in PA speaker mains, DJ touring speakers, sub-woofers and bass guitar systems the new Rockville Bass Rider Subwoofers are a milestone in high-power subwoofer design. The 18” woofers have an incredible power handling of 900 watts RMS/1800 watts peak. These “extra-long throw” woofers can reach amazing sound pressure levels of 105dB with clean, deep bass down to 20Hz that will rattle the walls of any venue!

Utilizing a new propriety mix of materials; the cones are Kevlar®-impregnated making them stronger and tougher than your average pro audio woofer cone. A newly designed “treated asymmetrical-W shape surround” provides for superior excursion and linear motion control.

The speaker connection terminals are high quality nickel-plated screw style terminals and accept large gauge wire. The terminals are attached to large diameter, high current tinsel leads with silver solder to withstand high current and high temperatures during long excursions.

The Rockville Bass Rider woofers’ voice coil use a specially formulated, polyimide-insulated, high temperature wire, designed especially for high SPL response. The winding is bonded onto an incredibly durable and heat resistant aluminum composite former. The voice coil winding length is an incredible 1”, which is 80% longer than most standard pro woofers voice coils. The long coil dissipates heat over a larger area and the increased length drives the cone to higher excursions. The coil is layered with a tough thermoset clear epoxy for added durability, abrasion and heat resistance.

The voice coil assembly is bonded to the cone’s “double, linear-progressive Nomex spider”, using a thermoset epoxy adhesive. The spider and surround are bonded to the frame with a high strength cyanoacrylate adhesive, which is also used to bond the dust cap to the cone.

The magnet motor structure is all new, and designed with a back plate and pole piece which are forged from a single massive block of low carbon steel. Utilizing an extended pole piece beyond the front plate improves magnetic linearity and voice coil cooling.

Features:

Rockville RVW1800W4 1800 Watt 18“ Raw DJ 4 Ohm Subwoofer
Power Rating :
Peak Power : 1800 Watts
Power RMS : 900 Watts
Kevlar Reinforced Ultra Stiff Paper Composite Cone
Pulp Composite Dust Cap
Expanded and Rolled Steel Basket
Treated Accordion, “Asymmetrical W” Cloth Surround
Ultra Saturated, High BL Magnetic Motor Gap
3“ High Temperature 4-Layer CCAW High SPL Voice Coil
Linear Progressive Conex Dual Spider System
Nickel Plated Banana Plug Terminals
Impedance : 4 Ohms
107 oz. Magnet Motor Structure
Mounting Depth: 7.36" inches
Frequency Response : 20 Hz to 500 Hz
Sensitivity : 105dB @ 1w/1m
REVC: 3.2 Ohm
FO: 31.852 Hz
SD: 128.825m M
BL: 15: 936 TM
QMS: 4.641
QES: 0.390
QTS: 0.360
NO: 3.042%
SPLO: 105 dB
VAS: 380.079 m M
CMS: 161.2
