DBX 234XS Professional Crossover with 2 way, 3 Way, 4 Way, or Mono Operation
Key item features
- Versatile Operation: Offers mode switches for mono 4-way or stereo 2-way/3-way operation, indicated by Stereo/Mono status LEDs.
- Precision Filtering: Utilizes 24dB per octave Linkwitz-Riley filters for accurate audio signal separation and cleaner sound.
- Comprehensive Controls: Features individual level controls on all outputs, a x10 range switch on both channels, and a phase reverse switch on all outputs.
- Enhanced Connectivity: Equipped with XLR balanced inputs and outputs, including a low frequency summed (subwoofer) output for flexible audio routing.
- Robust Performance: Delivers a wide bandwidth of 20Hz to 20kHz (+/-0.5dB), a dynamic range greater than 106 dB, and low THD + Noise of less than 0.004% at +4 dBu.
- Input/Output Specifications: XLR connectors with electronically balanced/unbalanced, RF filtered type, supporting a max input level of +21dBu and max output level of +20dBu.
- Audio Refinement: Includes a 40Hz high pass (low cut) filter on both channels to eliminate unwanted low frequencies.
Specs
- Channels2
- Crossover typeStereo 2-Way
- Crossover slope24 dB
- Freq range20 Hz
- BrandDBX
- Model166xs
- Free shipping
Free 30-day returns
(Only one option can be selected at a time)
How do you want your item?
More seller options (1)
Similar items you might like
Based on what customers bought
DBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic $284.90
$28490current price $284.90DBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic
Shipping, arrives in 3+ daysClearance Yammee 2 Unit Speaker Frequency Divider Crossovers Kit for Enhances Sound Performances $8.36 Was $9.34
Clearance
5 optionsAvailable in additional 5 optionsNow$836current price Now $8.36, Was $9.34$9.34More options from $8.26Yammee 2 Unit Speaker Frequency Divider Crossovers Kit for Enhances Sound Performances
Shipping, arrives in 3+ daysThree-Way 450W Professional Speaker High Power Splitter 750Hz/5000Hz Stage Home Theater 3-Unit Audio Crossover Filter $33.26
$3326current price $33.26Three-Way 450W Professional Speaker High Power Splitter 750Hz/5000Hz Stage Home Theater 3-Unit Audio Crossover Filter
Shipping, arrives in 3+ days1100W Audio Frequency Divider Two Way Speaker Crossover 12 15 Inch Stage Performance High Power $32.58
$3258current price $32.581100W Audio Frequency Divider Two Way Speaker Crossover 12 15 Inch Stage Performance High Power
Shipping, arrives in 3+ daysSpeaker Sound Optimizers, 400W 3 Way Audiophiles Crossovers with Adjustable Frequency Dividers $20.66
$2066current price $20.66+$0.90 shippingSpeaker Sound Optimizers, 400W 3 Way Audiophiles Crossovers with Adjustable Frequency Dividers
Shipping, arrives in 3+ days2PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover $22.70
$2270current price $22.702PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover
15 out of 5 Stars. 1 reviewsShipping, arrives in 3+ daysdbx 234S Stereo 2/3 Way Mono 4 Way Audio Crossover Dual Channel Precision Filters $330.00
$33000current price $330.00dbx 234S Stereo 2/3 Way Mono 4 Way Audio Crossover Dual Channel Precision Filters
Shipping, arrives in 3+ days3-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems $14.32
$1432current price $14.323-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems
Shipping, arrives in 3+ days200W Audios Bass Subwoofer Crossover 3Way Treble Midrange Bass Crossover Frequency Divider for Home Car Audios Systems $15.66
$1566current price $15.66200W Audios Bass Subwoofer Crossover 3Way Treble Midrange Bass Crossover Frequency Divider for Home Car Audios Systems
Shipping, arrives in 3+ days2Pcs 150W 3 Way Audio Speaker Crossover Treble Midrange Crossover Speakers F xc7119 $16.48
$1648current price $16.482Pcs 150W 3 Way Audio Speaker Crossover Treble Midrange Crossover Speakers F xc7119
Shipping, arrives in 3+ daysWHAMVOX Two Way Crossover Audio Divider Frequency Speaker $12.74
$1274current price $12.74+$1.99 shippingWHAMVOX Two Way Crossover Audio Divider Frequency Speaker
T-HOTLYST 400W 3 Way Audiophiles Speaker Crossovers Filters with Adjustable Treble and Bass Frequency Divider Distributor $24.95
$2495current price $24.95+$1.99 shippingT-HOTLYST 400W 3 Way Audiophiles Speaker Crossovers Filters with Adjustable Treble and Bass Frequency Divider Distributor
Shipping, arrives in 3+ daysFRCOLOR Audio Crossover Filter 3 Way Speaker Frequency Divider Module $10.18
$1018current price $10.18FRCOLOR Audio Crossover Filter 3 Way Speaker Frequency Divider Module

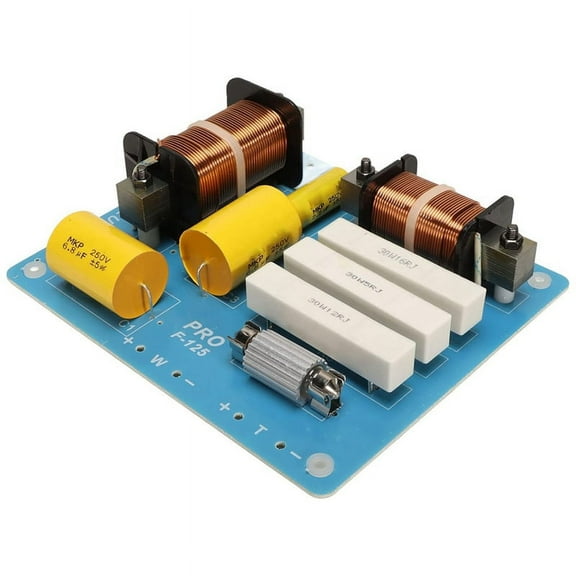

Shipping, arrives in 3+ days2 Way Crossover 800W Maximum Professional Frequency Divider for Stage Conference Speaker $28.86 Was $32.31
Now$2886current price Now $28.86, Was $32.31$32.312 Way Crossover 800W Maximum Professional Frequency Divider for Stage Conference Speaker

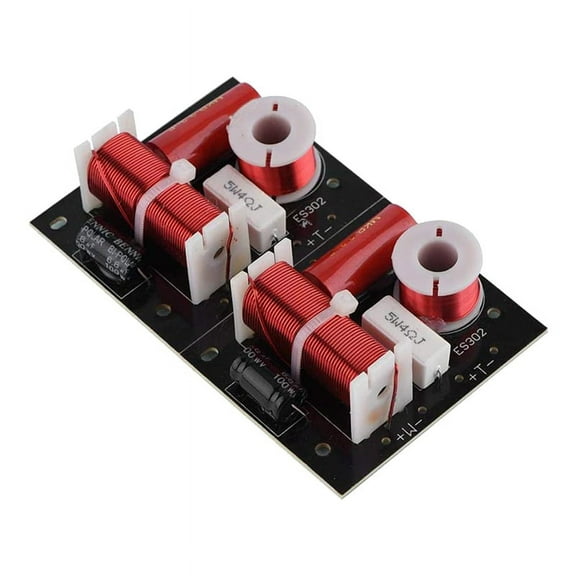

Shipping, arrives in 3+ days2Pcs 400W Speaker Frequency Divider 2 Way 2 Unit Hi-Fi Soundshelf Crossover Filtersk8232 $17.64
$1764current price $17.642Pcs 400W Speaker Frequency Divider 2 Way 2 Unit Hi-Fi Soundshelf Crossover Filtersk8232
Shipping, arrives in 3+ daysReduced price 80W Pure Bass Subwoofer Crossover Frequency Distributor Divider 2 Way Speaker Audio Crossover $8.61 Was $9.63
Reduced price
Now$861current price Now $8.61, Was $9.63$9.6380W Pure Bass Subwoofer Crossover Frequency Distributor Divider 2 Way Speaker Audio Crossover
Shipping, arrives in 3+ daysKP-12 Professional 2 Way Crossover Supports 4Ω/8Ω Impedance Adaptation for Loudspeaker with 300W Power Handling $10.67
2 optionsAvailable in additional 2 options$1067current price $10.67More options from $7.89KP-12 Professional 2 Way Crossover Supports 4Ω/8Ω Impedance Adaptation for Loudspeaker with 300W Power Handling
Shipping, arrives in 3+ daysAudio Speaker Frequency Divider Treble Bass 2 Unit Crossover $7.53
$753current price $7.53Audio Speaker Frequency Divider Treble Bass 2 Unit Crossover
15 out of 5 Stars. 1 reviewsShipping, arrives in 3+ days
About this item
Product details
Authorized DBX Dealer!
Description:
More Sound to Your Amps and Speakers
The secret to making speakers sound great lies with the crossover you use. With the dbx® 234xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 234xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 234xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.
The dbx 234xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.
Features
- dbx 234XS Rack Mount Stereo 2/3/4-Way Crossover Pro Audio Sound Processor/XLR
- XLR balanced ins and outs
- Mode switches for mono 4-way or stereo 2-way/3-way operation
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high pass (low cut) filter both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- 24dB per octave Linkwitz-Riley filters (the professional standard)
- Stereo/Mono status LEDs indicate the selected mode
Specifications:
- Features. dbx 234XS Rack Mount Stereo 2/3/4-Way Crossover Pro Audio Sound Processor/XLR. XLR balanced ins and outs. Mode switches for mono 4-way or stereo 2-way/3-way operation. Low frequency summed (subwoofer) output. x10 range switch on both channels. 40Hz high pass (low cut) filter both channels. Phase reverse switch on all outputs. Individual level controls on all outputs. 24dB per octave Linkwitz-Riley filters (the professional standard). Stereo/Mono status LEDs indicate the selected mode
- Specifications: Input: Connectors: XLR Type: Electronically balanced/unbalanced, RF filtered Impedance: Balanced >50k ohm, unbalanced >25k ohm Max Input Level: >+21dBu balanced or unbalanced CMRR: >40dB, typically >50dB at 1kHz. Connectors: XLR. Type: Electronically balanced/unbalanced, RF filtered. Impedance: Balanced >50k ohm, unbalanced >25k ohm. Max Input Level: >+21dBu balanced or unbalanced. CMRR: >40dB, typically >50dB at 1kHz
- Outputs: Connectors: XLR Type: Electronically-balanaced/unbalanced, RF filtered Impedance: Balanced 60 ohm, unbalanced 300 ohm Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater. Connectors: XLR. Type: Electronically-balanaced/unbalanced, RF filtered. Impedance: Balanced 60 ohm, unbalanced 300 ohm. Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater
- System Performance: Bandwidth: 20Hz to 20kHz, +/-0.5dB Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth Stereo Mode: >94dB (Low Output) >93dB (Mid Output) >90dB (High Output) Mono Mode: >94dB (Low Output) >94dB (Low/Mid Output) >92dB (High/Mid Output) >88dB (High Output) Dynamic Range: > 106 dB, un-weighted, any output THD + Noise: < 0.004% at +4 dBu, 1 kHz < 0.04% at +20 dBu, 1 kHz Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
- Bandwidth: 20Hz to 20kHz, +/-0.5dB. Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB. Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth. Stereo Mode: >94dB (Low Output) >93dB (Mid Output) >90dB (High Output). >94dB (Low Output). >93dB (Mid Output). >90dB (High Output). Mono Mode: >94dB (Low Output) >94dB (Low/Mid Output) >92dB (High/Mid Output) >88dB (High Output). >94dB (Low Output). >94dB (Low/Mid Output). >92dB (High/Mid Output). >88dB (High Output)
Specifications
Channels
Crossover type
Crossover slope
Freq range
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Compare with similar items
| Product | Viewing this itemDBX 234XS Professional Crossover with 2 way, 3 Way, 4 Way, or Mono Operation ![]() $380.00 current price $380.00 | DBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic ![]() $284.90 current price $284.90 | 2PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover ![]() $22.70 current price $22.7015 out of 5 Stars. 1 reviews | 3-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems ![]() $14.32 current price $14.32 | WHAMVOX Two Way Crossover Audio Divider Frequency Speaker ![]() $12.74 current price $12.74 |
|---|
| Channels | 2DBX 234XS Professional Crossover with 2 way, 3 Way, 4 Way, or Mono Operation | 2DBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic | 32PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover | 33-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems | 1WHAMVOX Two Way Crossover Audio Divider Frequency Speaker |
|---|---|---|---|---|---|
| Crossover type | Stereo 2-WayDBX 234XS Professional Crossover with 2 way, 3 Way, 4 Way, or Mono Operation | Stereo 2-WayDBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic | Stereo 3-Way2PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover | Stereo 3-Way3-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems | Stereo 3-WayWHAMVOX Two Way Crossover Audio Divider Frequency Speaker |
| Freq range | 20 HzDBX 234XS Professional Crossover with 2 way, 3 Way, 4 Way, or Mono Operation | 20Hz to 20kHzDBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic | 850 Hz2PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover | 850/5200Hz3-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems | 50Hz-20KHzWHAMVOX Two Way Crossover Audio Divider Frequency Speaker |
| Connection | XLRDBX 234XS Professional Crossover with 2 way, 3 Way, 4 Way, or Mono Operation | XLRDBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Sound Processor Samson Mic | -2PCS 3-Way 250W 850/5200Hz Frequency Divider DIY Speaker Filter Circuit Treble Medium Hifi Stereo Audio Crossover | -3-Way 250W 850/5200Hz Frequency Divider Filter Audio Speaker Crossover Module DIY Medium Hifi Stereo Audio Systems | -WHAMVOX Two Way Crossover Audio Divider Frequency Speaker |
Popular items in this category
Best selling items that customers love
dbx 231s Dual Channel 31-Band Equalizer $335.00
$33500current price $335.00dbx 231s Dual Channel 31-Band Equalizer
Shipping, arrives in 3+ daysProfessional XOB3 Audio Crossover $109.72
$10972current price $109.72Professional XOB3 Audio Crossover
14 out of 5 Stars. 1 reviewsShipping, arrives in 3+ daysEminence X-OversPXB3:5k0 3-Way Board Crossovers $99.99
$9999current price $99.99Eminence X-OversPXB3:5k0 3-Way Board Crossovers
15 out of 5 Stars. 1 reviewsShipping, arrives in 3+ daysFULODE Professional 2/3 Way Stereo/4 Way Mono Crossover with XLR Input and Output, Stereo Audio Sound Processing for PA System with Subwoofer $94.99
$9499current price $94.99FULODE Professional 2/3 Way Stereo/4 Way Mono Crossover with XLR Input and Output, Stereo Audio Sound Processing for PA System with Subwoofer
Shipping, arrives in 3+ days2 Way Crossover 800W Maximum Professional Frequency Divider for Stage Conference Speaker $29.75
$2975current price $29.752 Way Crossover 800W Maximum Professional Frequency Divider for Stage Conference Speaker

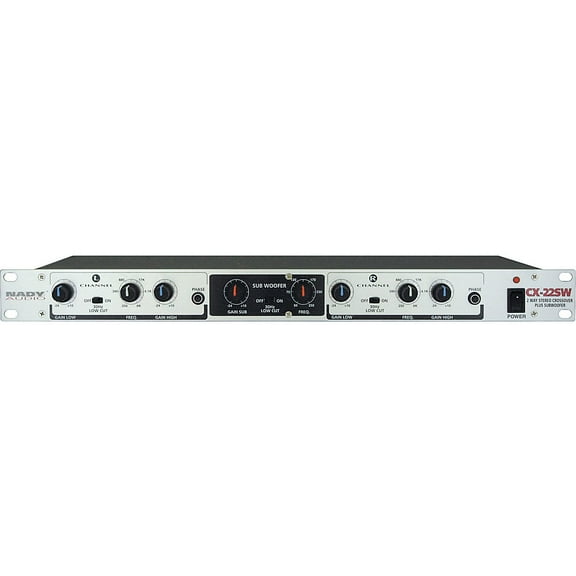

Shipping, arrives in 3+ daysNady CX-22SW 2-Way Stereo Crossover $131.99
$13199current price $131.99Nady CX-22SW 2-Way Stereo Crossover
Audiopipe XV-3XP 8V Max Output High-pass 3-Way Variable Crossover Mono/Stereo $81.99
$8199current price $81.99Audiopipe XV-3XP 8V Max Output High-pass 3-Way Variable Crossover Mono/Stereo

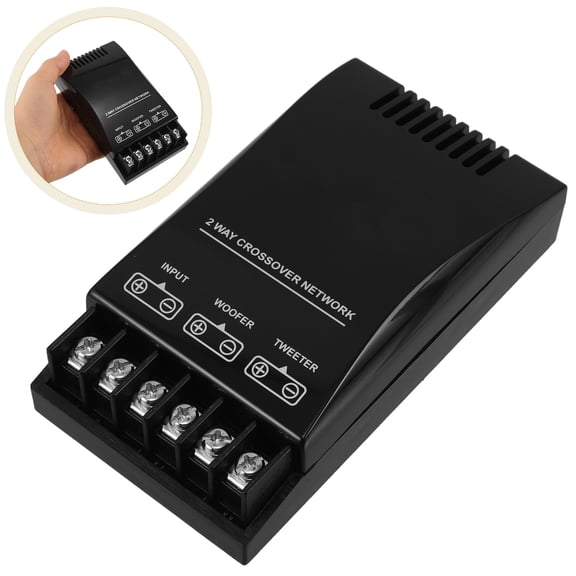

Shipping, arrives in 3+ daysOUNONA Black Car Audio Network with High Precision Audio Separation for Clear and Layered $15.09
$1509current price $15.09OUNONA Black Car Audio Network with High Precision Audio Separation for Clear and Layered
Shipping, arrives in 3+ days2X 400W Speaker Crossover 2 Way High-Low 4-16 Ohm Frequency Divider for Speaker $11.48
$1148current price $11.482X 400W Speaker Crossover 2 Way High-Low 4-16 Ohm Frequency Divider for Speaker
Shipping, arrives in 3+ daysBanda 3-way Electronic Car Crossover with Either Two-or Three-way System $110.94
$11094current price $110.94+$9.98 shippingBanda 3-way Electronic Car Crossover with Either Two-or Three-way System
Shipping, arrives in 3+ daysPRV Audio EX4.6PRO 4-Way Or 3-Way Electronic Car Audio Crossover $69.91 Was $84.97
Now$6991current price Now $69.91, Was $84.97$84.97PRV Audio EX4.6PRO 4-Way Or 3-Way Electronic Car Audio Crossover
Shipping, arrives in 3+ daysAudiopipeMap XV3V15BP 3 Way Active Crossover with Bandpass Filter $104.99
$10499current price $104.99AudiopipeMap XV3V15BP 3 Way Active Crossover with Bandpass Filter
Shipping, arrives in 3+ dayslanema 80W 2-Way Crossover Filters Frequency Divider $9.92
$992current price $9.92lanema 80W 2-Way Crossover Filters Frequency Divider
Shipping, arrives in 3+ daysdbx DriveRack VENU360 Complete Loudspeaker Management System $1,290.00
$1,29000current price $1,290.00dbx DriveRack VENU360 Complete Loudspeaker Management System
Shipping, arrives in 3+ daysClearance Necvior WEAH-83 Audio Speaker Crossover Pure Bass Frequency Divider Crossovers Filters $23.07 Was $25.66
Clearance
Now$2307current price Now $23.07, Was $25.66$25.66+$0.99 shippingNecvior WEAH-83 Audio Speaker Crossover Pure Bass Frequency Divider Crossovers Filters
Shipping, arrives in 3+ daysStetsom STX2848 DSP 8 Channel Crossover and Equalizer Processor Sequencer $104.00
$10400current price $104.00Stetsom STX2848 DSP 8 Channel Crossover and Equalizer Processor Sequencer
Shipping, arrives in 3+ days2 Way Crossover for Speaker, -2001 2Pcs Speaker Frequency Divider Speakers 2 Crossover Divider Crossover Filter $15.89 Was $17.79
Now$1589current price Now $15.89, Was $17.79$17.792 Way Crossover for Speaker, -2001 2Pcs Speaker Frequency Divider Speakers 2 Crossover Divider Crossover Filter

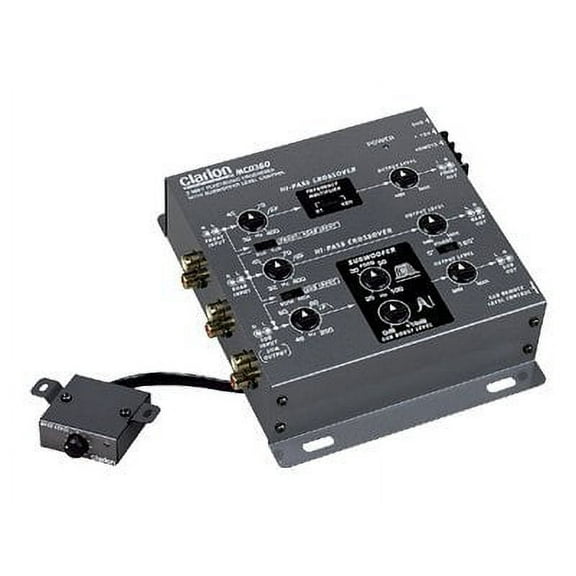

Shipping, arrives in 3+ daysClarion MCD360 3-Way 6-Channel Electronic Crossover with Subwoofer Control $133.54 Was $149.84
