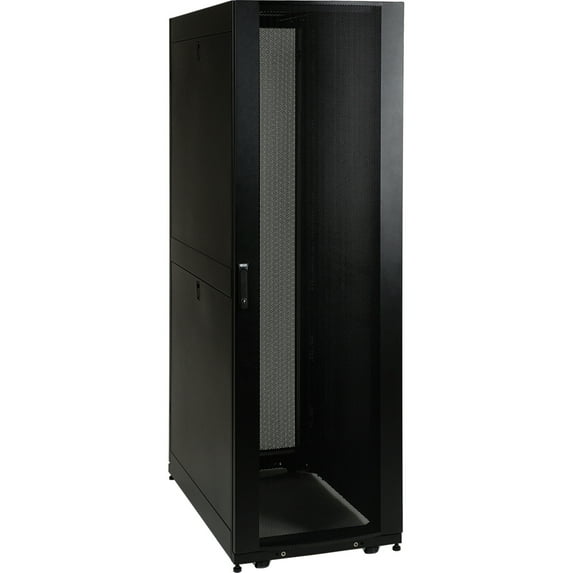

Tripp Lite 45U SmartRack Shallow-Depth Rack Enclosure Cabinet (SR45UBSD)

Physical Characteristics

Color Family: Black
Product Color: Black
Units Per Pallet: 1
Dynamic/Rolling Weight Capacity: 3000 lb
Static/Stationary Weight Capacity: 2250 lb
Height: 8.8"
Width: 23.6"
Depth: 32.5"
Weight (Approximate): 231.49 lb
Rack Height: 45U
Rack Width: 19"

Miscellaneous

Package Contents:

• 45U SmartRack Shallow Depth Premium Enclosure (Includes Doors and Side Panels)
• Mounting Hardware
• 50 x M6 Cage Nuts
• 50 x M6 Screws
• 50 x M6 Washers
• Stabilizing Bracket
• 4 x Side Panels
• 4 x Side Panel Locks
• 2 x Door and Side Panel Keys
• Owner's Manual

Additional Information:

• EIA-310-E Certification
• UL60950 Approval
• Front and back door frames
• Shallow depth enclosure is perfect for shallow-depth audio/video equipment, smaller equipment installs or areas with limited floor space
• Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters
• Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements
• Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure)
• Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
• Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements
• Maximum usable internal depth of 27 inches/68 cm (front to rear rail)
• Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles
• Casters are pre-installed and support a rolling load capacity of 2250 lbs, allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable
• Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable
• Compact design allows the enclosure to roll through standard height commercial doorways
• Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires
• Open bottom for cable access
• Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first
• Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
• Preinstalled casters and leveling feet
• Ideal for shallow depth A/V equipment or any venue with limited floorspace
• 4 Interior vertical posts with unthreaded square hole openings

Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 5 Year
