Regulator For CFMoto UForce 500 600 800 1000 ZForce 500 800 950 ATV 2015-2023

Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Voltage Regulator / Rectifier

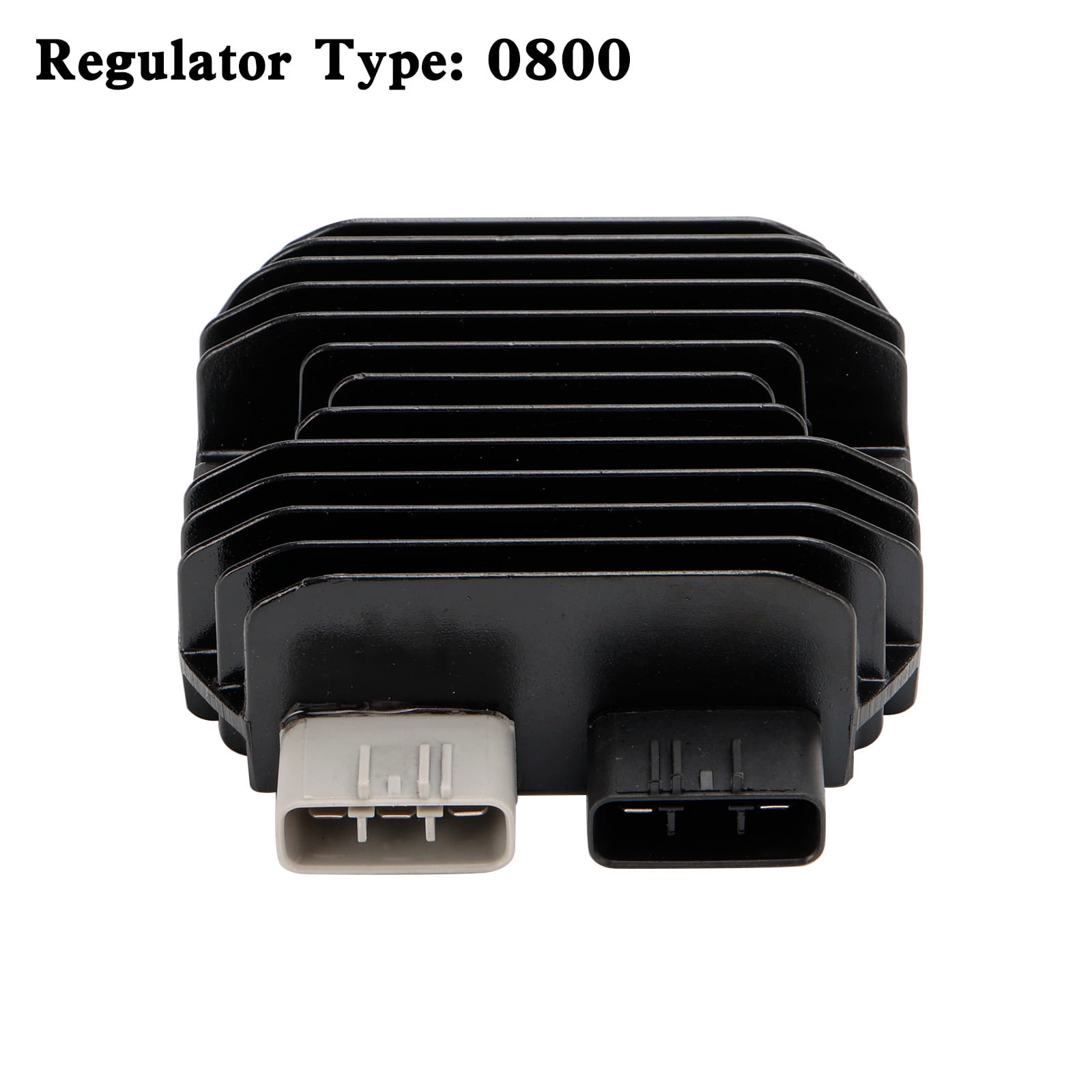

Regulator Type: 0800
Regulator Size: 119mm x 132mm
Mount spacing Hole: 101mm
Plug Size: 37mm x 14mm
Spacing between plug and plug: approx. 10.7mm

Other specifications :
Number of plugs : 2
Number of pins : 3 + 2

Pin Diagram:
3-pin plug (left to rgiht): IN3 - IN2 - IN1
2-pin plug (left to right): OUT - - - - GND

Replacement Part Number:
0800-177000-10000
0800-177000-20000

Fits Make/Model/Year:
0800-177000-10000
Fit for CFMoto UFORCE 500 CF500UU 2016-2017/2019-2020
Fit for CFMoto UFORCE 800 CF800-3 2019-2022
Fit for CFMoto UFORCE 800 EPS CF800-3 2017
Fit for CFMoto UFORCE 800 UF800EX 2016
Fit for CFMoto X8 (CFORCE) 2015-2016
Fit for CFMoto ZFORCE 500 CF500US 2016-2017/2019-2022
Fit for CFMoto ZFORCE 800 EX CF800 2015-2017
Fit for CFMoto ZFORCE 800 Trail CF800US-A 2017

0800-177000-20000
Fit for CFMoto ZFORCE 800 EX CF800 2020-2022
Fit for CFMoto ZFORCE 800 Trail CF800US-A 2020-2022

Please check and see if your original plug as same as our, there are another version, make sure this is what you want.
Check the spacing between the plug and the plug, our's about 10.7mm (0.39 inch), that will NOT fit if yours spacing much shorter than us.

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Voltage Regulator Rectifier

Note:
Before installing your new regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

How to distinguish CDI box with AC fired or CDI box with DC fired?
If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning  headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.

What does the voltage regulator do?
This regulator has the task of converting the alternating voltage (AC) generated by the alternator into the direct voltage (DC) 12V used in the vehicle electrical system and keeping the voltage within a certain range.
The voltage regulator is also responsible for ensuring that the battery is charged and that the light bulbs do not burn out.

How do I know if the charge regulator can be defective?
- Incandescent lamps burn out all the time.
- Headlights get brighter and darker.
- The battery is constantly empty.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
