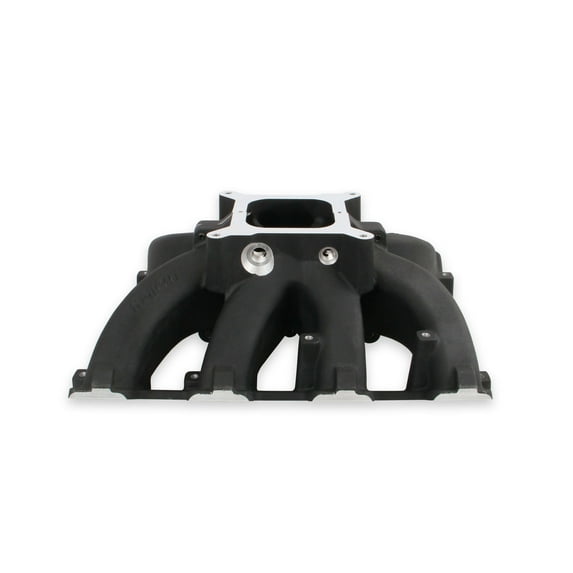

Holley 300-291BK Single Plane Split-Design Race Intake Manifold

Compatible with all GM LS Gen III or IV engines equipped with LS3/L92 style cylinder heads;

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.
The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.
The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.


Technical Data:
ï‚· A-B Height - 7.25 in. (0° carb flange angle)
ï‚· Port Size- 2.59 in. Height x 1.28 in. Wide
ï‚· Carburetor Flange - Standard 4150 for up to 1-3/4 in. diameter throttle bores
ï‚· As-Cast Runner Cross-Sectional Area - 4.5 in² at the runner entry tapered to 3.2 in² at the flange exit;
