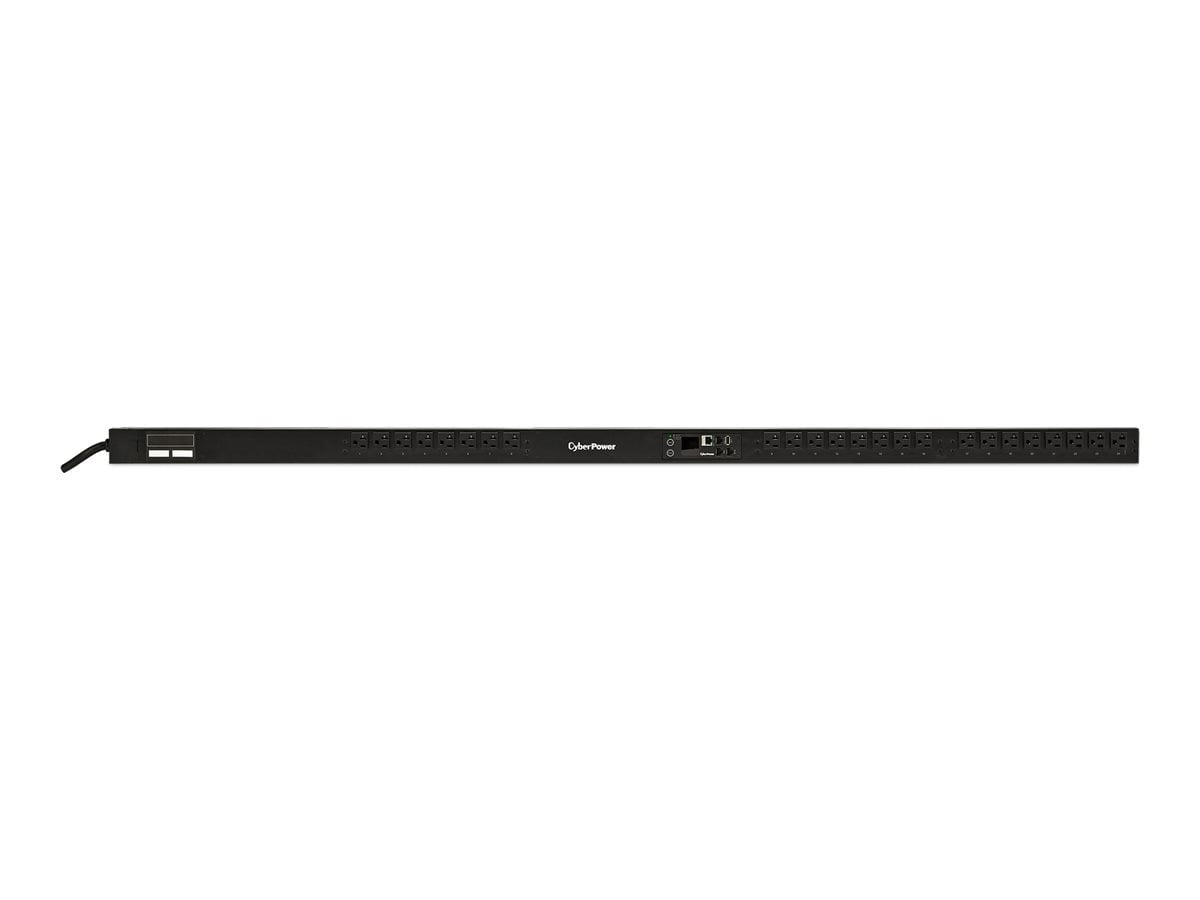

120V, 0U, 24 NEMA 5-20R OUTLETS, NEMA (L)5-20P PLUG, 10 FT CORD, SNMP, 3YR WTY

Technical Information

PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA L5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Protection Type: Overload Protection
Locking Receptacles: Cord Retention Tray
Features: LCD Display, LED Status Indicator

Power Description

Input Voltage: 120 V AC
Output Voltage: 100 V AC, 120 V AC
Output Voltage Range: 100 V AC - 120 V AC
Input Current: 20 A
Input Frequency: 60 Hz
Circuit Breaker: Yes

Management

Management: Protocols:

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD

Remote Outlet Switching: No

Interfaces/Ports

Network (RJ-45): Yes

Physical Characteristics

Color Family: Black
Product Color: Black
Product Material: Metal
Mounting Orientation: Vertical
Mount Type: Rack-mountable, Wall-mountable
Form Factor: Rack
Rack Height: 0U
Cord Length: 10 ft
Height: 65.5"
Width: 2.2"
Depth: 1.9"
Weight (Approximate): 13.20 lb

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 140°F (60°C)
Minimum Storage Temperature: 5°F (-15°C)
Maximum Storage Temperature: 149°F (65°C)

Miscellaneous

Package Contents:

• PDU31101
• Adaptor

Certifications & Standards:

• UL 60950-1
• FCC Class A

Country of Origin: China
TAA Compliant: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
UL Listed: Yes

Warranty

Limited Warranty: 3 Year
