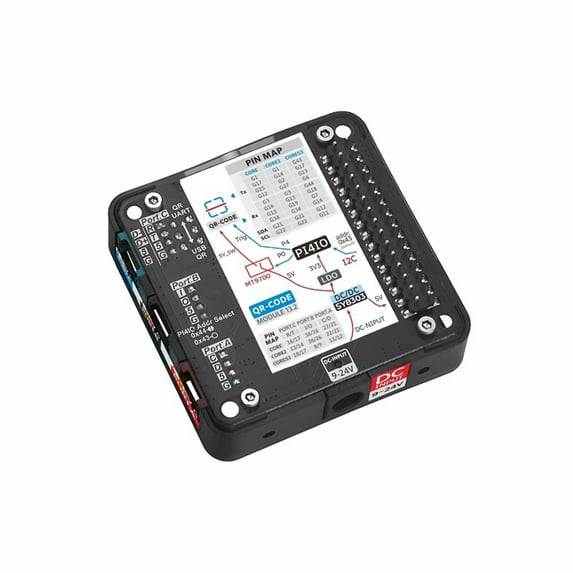

QR-Code Scanner Module 13.2 Barcode QR Code Scanning Module 640x480 CMOS USB or UART Interface

IO expansion chip: PI4I0E5V640812C 0x43 (default)/0x44
Sensor: 640x480 CMOS
Illumination: White LED
Focus: Red LED
QR Code Reading Types: PDF417, QR Code, Data Matrix
1D Code Reading Types: Code 11, Code 39, Code 93, Code 128, -13, -8, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, , GSl Databar
Reading Depth of Field: 50-160 mm
Reading Accuracy: ≥5
Print Contrast: ≥20%
Scanning Angle: Pitch ±55°, Tilt ±55°
Communication Interface: USB or UART communication. The USB interface can be connected to a computer via the Grove to USB-C accessory.
Expansion Interface: Three Grove ports: PORT.A, PORT.B, and PORT.C
DC Power Input: Input Voltage: DC9-24V, Dimensions: 5.5 x 2.1mm, Polarity: Positive inside, negative outside
Operating Current (with Core2 Host):
DC5V Module: 5.04V 74.42mA (Off), 5.09V 255.84mA (On)
DC9V Module: 9.09V 98.93mA (Off), 9.10V 153.44mA (On)
DC12V Module: 10.49V 79.96mA (Off), 10.38V 124.54mA (On)
Color: Black
Material: plastic

Package Contents:
1 x QR Code Scanner Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
