Pyrometer PCE-777N
(No ratings yet)
Key item features
- Temperature measuring range: -30 ... 260°C / -22 ... 500 °F
- Response: time: < 1 s
- Overload: LCD display "------"
- Polarity:
Automatically (no indication of positive polarity)
Minus (-) sign for negative polarity
- Emissivity (fixed): 0.95
- Measuring spot ratio: 8:1
- Laser point: A visible point laser beam power <1mW, Wavelength 630 ... 670 nm, Class II
- Spectral range: 6 ... 14 µm
- Automatic shutdown: After 8 seconds of inactivity
- Operating conditions: 0 ... 50°C / 32 ... 122°F, 10% ... 90% r.H.
- Storage conditions: -20 ... 60°C / -4 ... 140°F, < 80% r.H.
- Power supply: 9V block battery
- Dimensions: 82 x 41.5 x 160 mm / 3.2 x 1.6 x 6.3 in
- Weight: 180 g / < 1 lb
Specifications Infrared Thermometer
- Measuring range:
-30 ... 0 °C / -22 ... 32 °F (range 1)
0 ... 260 °C / 32 ... 500 °F (range 2)
- Resolution: 0.1 °C / 0.1 °F (both ranges)
- Accuracy:
±4 °C / ±4 °F (in range 1)
± 2% of reading / ± 2 °C / ± 4 °F (range 2)
Specs
- FeaturesLCD Display
- BrandPCE Instruments
- Rec. useIndustrial
- ColorNavy
- Weight180 g
- Count1
Current price is USD$49.00
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Tue, Feb 17
|
Sold and shipped by PCE Instruments
Free 30-day returns
Popular items in this category
Best selling items that customers love

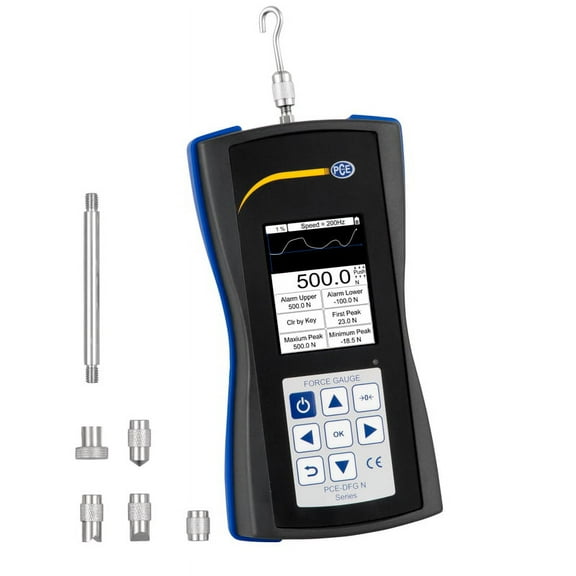

Dynamometer PCE-DFG N 500 $865.00
$86500current price $865.00Dynamometer PCE-DFG N 500
Shipping, arrives in 3+ daysContact Tachometer PCE-T 230 $92.00
$9200current price $92.00Contact Tachometer PCE-T 230
Shipping, arrives in 3+ daysNon-Contact Tachometer PCE-T 220 $79.00
$7900current price $79.00Non-Contact Tachometer PCE-T 220
Shipping, arrives in 3+ daysForce Gauge PCE-HFG 1K $838.00
$83800current price $838.00Force Gauge PCE-HFG 1K
Shipping, arrives in 3+ daysSupco Temperature Alarm,-10 to 80F TA2 $57.00
$5700current price $57.00Supco Temperature Alarm,-10 to 80F TA2
Save with
Shipping, arrives tomorrowLang Tools 13800 Digital Folding Pocket Thermometer $28.30 Was $31.64
Now$2830current price Now $28.30, Was $31.64$31.64Lang Tools 13800 Digital Folding Pocket Thermometer
Shipping, arrives in 3+ daysMagnetometer PCE-EMF 40 $693.00
$69300current price $693.00Magnetometer PCE-EMF 40
Shipping, arrives in 3+ daysBelt Tension Meter PCE-BTM 2000A $768.00
$76800current price $768.00Belt Tension Meter PCE-BTM 2000A
Shipping, arrives in 3+ daysTrumeter Ac Elapsed Time Meter 711-0160 $115.75
$11575current price $115.75Trumeter Ac Elapsed Time Meter 711-0160
Shipping, arrives in 3+ daysFowler 72-520-110 Dial Indicator $37.78
$3778current price $37.78Fowler 72-520-110 Dial Indicator
Save withShipping, arrives in 2 daysColorimeter PCE-CSM 3 $2,344.00
$2,34400current price $2,344.00Colorimeter PCE-CSM 3
Shipping, arrives in 3+ daysDwyer Instruments TE-TNS-N044N-14 $37.64
$3764current price $37.64Dwyer Instruments TE-TNS-N044N-14
Shipping, arrives in 3+ daysDwyer Instruments TE-TNS-N094N-14 $62.99
$6299current price $62.99Dwyer Instruments TE-TNS-N094N-14
Shipping, arrives in 3+ daysTriplett Heat Index Meter,Wet Bulb Globe,Plastic HS10 $68.81
$6881current price $68.81Triplett Heat Index Meter,Wet Bulb Globe,Plastic HS10
Vibration Meter PCE-VD 3 $224.00
$22400current price $224.00Vibration Meter PCE-VD 3
Shipping, arrives in 3+ daysThree Phase Power Data Logger PCE-PCM 1 $264.00
$26400current price $264.00Three Phase Power Data Logger PCE-PCM 1
Shipping, arrives in 3+ daysMaxitrol T120 - Selectrastat Controller for Precise Temperature Regulation $240.08
$24008current price $240.08Maxitrol T120 - Selectrastat Controller for Precise Temperature Regulation
Shipping, arrives in 3+ days
About this item
Product details

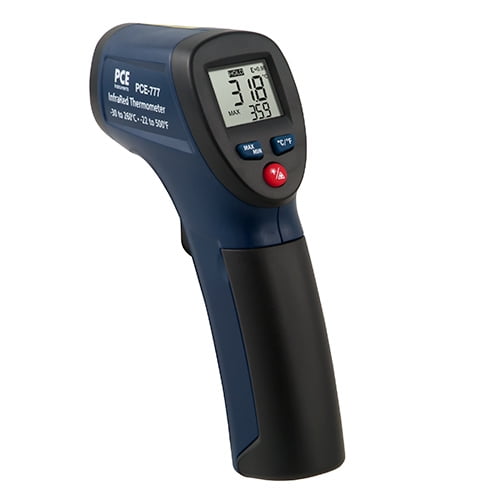

The contactless Pyrometer PCE-777 N measures the temperature of surfaces via infrared beam non-destructively and from a distance. This light contactless Pyrometer is characterized by simple operation and the red sighting tool. So you can accurately measure the temperature of a particular area on a surface. The contactless Pyrometer is for industry and craft, maintenance and servicing, e.g. in the field of heating, ventilation and air conditioning, automotive, and is useful in the control of electrical equipment and control systems. The contactless Pyrometer PCE-777 N can also be used under difficult conditions and provides you with measurement results. The backlight of the contactless Pyrometer is selectively turned on or off. The contactless Pyrometer has a visible sighting tool for precise contactless pointing and quick temperature measurement from a safe distance of hot or moving objects or of difficult measuring points. The emission level is fixed for this contactless Pyrometer at 0.95 and covers about 90% of all temperature measuring tasks.
- Temperature measuring range: -30 ... 260°C / -22 ... 500 °F
- Response: time: < 1 s
- Overload: LCD display "------"
- Polarity:
Automatically (no indication of positive polarity)
Minus (-) sign for negative polarity
- Emissivity (fixed): 0.95
- Measuring spot ratio: 8:1
- Laser point: A visible point laser beam power <1mW, Wavelength 630 ... 670 nm, Class II
- Spectral range: 6 ... 14 µm
- Automatic shutdown: After 8 seconds of inactivity
- Operating conditions: 0 ... 50°C / 32 ... 122°F, 10% ... 90% r.H.
- Storage conditions: -20 ... 60°C / -4 ... 140°F, < 80% r.H.
- Power supply: 9V block battery
- Dimensions: 82 x 41.5 x 160 mm / 3.2 x 1.6 x 6.3 in
- Weight: 180 g / < 1 lb
Specifications Infrared Thermometer
- Measuring range:
-30 ... 0 °C / -22 ... 32 °F (range 1)
0 ... 260 °C / 32 ... 500 °F (range 2)
- Resolution: 0.1 °C / 0.1 °F (both ranges)
- Accuracy:
±4 °C / ±4 °F (in range 1)
± 2% of reading / ± 2 °C / ± 4 °F (range 2)
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Features
LCD Display
Brand
PCE Instruments
Rec. use
Industrial
Size
82 x 41.5 x 160 mm / 3.2 x 1.6 x 6.3 in
Warranty
Warranty information
We warrant to you that for a period of two (2) years any Product manufactured by us and purchased from us through our Website will conform in all material respects with its description, be of reasonably satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied, and for any Product not manufactured by us, then to the extent a manufacturer’s warranty exists with respect to such Product, we will pass such manufacturer’s warranty on to you.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warranty url
Warnings
Ingestion Hazard
This product contains a battery. Death or serious injury can occur if ingested. A swallowed battery can cause Internal Chemical Burn in as little as 2 hours. Keep new and used batteries OUT OF REACH OF CHILDREN. Seek Immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
