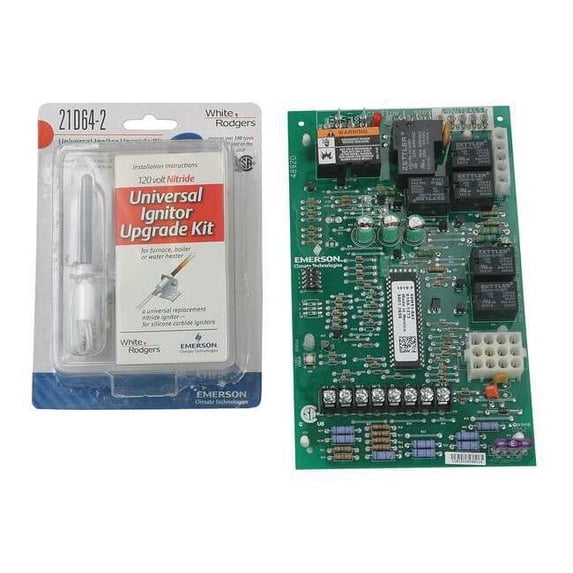

White-Rodgers Control,Hot Surface Ignition,2 Retries 21M51U-843

Name: White-Rodgers Control,Hot Surface Ignition,2 Retries 21M51U-843
Brand: Emerson
SKU: 35831080
Price: 260.75 USD
Availability: InStock

(No ratings yet)

White-Rodgers Control,Hot Surface Ignition,2 Retries 21M51U-843 White Rodgers Integrated Furnace Control 24V AC 21M51U 843

Actual Color:Multi

Key item features

Includes Trane Ignitor Mounting Bracket
Standards CSA Certified
For use with Residential, Commercial Heating Equipment

Features:

120 VAC Igniter Output
120 VAC Two-Speed Inducer Output
120 VAC Humidifier Output
120 VAC Electronic Air Cleaner Output
120 VAC 3-Speed PSC Circulator Output
2-Stage Gas Valve Output
Fuse Protection – 3 Amp
Furnace Status LED – Tri-Color (Green, Red and Amber)
Heat Fan OFF Delay (Dipswitch Selectable)
Fan ON Delay for Cooling
Auto Second Stage Delay (Dipswitch Selectable Mode)
Historical fault retrieval by pushbutton
YLO, Y, W1, W2, R, G, C, TWIN terminals
Pressure switch inputs and monitoring
Flash microprocessor with non-volatile memory
Flame current measurement points

Replaces:

White-Rodgers 50M51-242 and all 50M61-xxx’s Two-Stage HSI systems with 80V or 120V Igniter
Easy Install Kit includes everything you need for quick and accurate replacement
Ignition Control Module
Universal 120V Nitride Igniter Kit – 21D64-2
Installation Instructions and OEM Cross-Reference

Specs

Brand
Emerson
Model
21M51U-843
Pieces
1
Weight
3 oz

Current price is Now $260.75

You save $120.24

was $380.99

Price when purchased online

Free shipping

How do you want your item?

Columbus, 43215

Arrives by Thu, Feb 26

Sold and shipped by Buildcom

4.220680958385876 stars out of 5, based on 3172 seller reviews(4.2)

Report an issue with this seller

Return policy

More seller options (3)

Starting from $260.87

About this item

Product details

Integrated Furnace Control, Product Type Integrated Furnace Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 5 min, Pre-Purge Time 15 sec, Number of Retries 2, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.3 uA, Ignition Cycle Time 90 seconds (HSI), 15 seconds (pre-purge), 15 seconds (post purge), Automatic Reset Time 1 hr, Compatible with Brand Goodman, Lennox, Trane, White-Rodgers

Includes Trane Ignitor Mounting Bracket
Standards CSA Certified
For use with Residential, Commercial Heating Equipment

Features:

120 VAC Igniter Output
120 VAC Two-Speed Inducer Output
120 VAC Humidifier Output
120 VAC Electronic Air Cleaner Output
120 VAC 3-Speed PSC Circulator Output
2-Stage Gas Valve Output
Fuse Protection – 3 Amp
Furnace Status LED – Tri-Color (Green, Red and Amber)
Heat Fan OFF Delay (Dipswitch Selectable)
Fan ON Delay for Cooling
Auto Second Stage Delay (Dipswitch Selectable Mode)
Historical fault retrieval by pushbutton
YLO, Y, W1, W2, R, G, C, TWIN terminals
Pressure switch inputs and monitoring
Flash microprocessor with non-volatile memory
Flame current measurement points

Replaces:

White-Rodgers 50M51-242 and all 50M61-xxx’s Two-Stage HSI systems with 80V or 120V Igniter
Easy Install Kit includes everything you need for quick and accurate replacement
Ignition Control Module
Universal 120V Nitride Igniter Kit – 21D64-2
Installation Instructions and OEM Cross-Reference

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

Emerson

Model

21M51U-843

Pieces

Weight

3 oz
