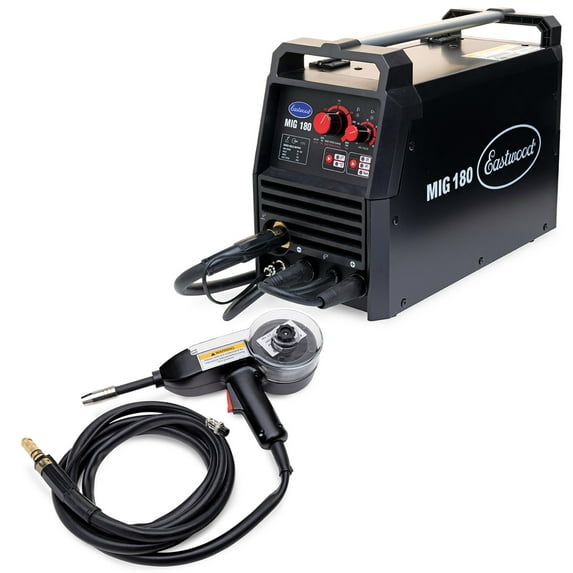

Eastwood 180 Amp MIG Welder with Included Spool Gun

Whether you're a professional or enthusiast, you can now get even more industrial-quality features like inverter technology, 2T/4T modes and a tack weld setting in this hard-working, affordable MIG welder. Our R&D guys have been constantly improving our welders since 2009 and are proud of this newly designed Eastwood MIG 180 that's great for steel, aluminum and all-around metal fab and auto restoration.

Many cars and trucks have aluminum parts, or you may need to weld aluminum for a metal fabrication project, and with the included spool gun, you can weld 14-gauge to 1/4-inch aluminum. Quickly and easily connect or remove it as needed for working on different parts and panels. Save money on a spool gun when you buy it together with the Eastwood MIG 180.

Specifications

Rated Electrical Input: 120 VAC; 24 AMP - 240 VAC; 29.6 AMP
Required Breaker Size: 30 amp
Power Voltage: 1 Phase, 120VAC / 240VAC, 60 Hz
Power Cord Receptacle Plug: NEMA 6-50R
Max Voltage at No Load: 61 V DC
Rated Duty Cycle 120V: 30% @ 90A, 60% @ 65A, 100% @ 50A
Rated Duty Cycle 240V: 30% @ 180A, 60% @ 130A, 100% @ 100A
Torch Consumables: Tweco style nozzle and contact tips
Wire Feed Rate (IPM/Inches Per Minute): 120V: 80 - 314 IPM/240V: 80 - 551 IPM
Wire Sizes: 0.023”(0.6mm) – 0.035”(0.9mm) mig wire, 0.030”(0.8mm) – 0.035”(0.9mm) flux core wire
Welding Wire Spool: 4” and 8” spool, up to 11 lbs
Maximum Welding Thickness - Steel: 5/16"
Output Current Range: 120V: 30 - 140 Amps/240V: 30 - 180 Amps
Weight: 25.3 lbs (11.5 kg)
Overall Dimensions: 18” X 8.5" X 13.25”

Contents

MIG 180 Welder
Spool Gun with 9.5' cable (works with a 4 inch wire spool only) and .035" (0.9mm) Contact Tip
4043 Aluminum Wire Spool 0.035 (0.9mm), 4 inch (1 lb)
Gas Regulator with hose
8.5' Ground Clamp and Cable
NEMA 5-15P to NEMA 6-50R Adapter Cord (240v to 120v), 2'
MIG Torch, Nozzle, 0.030" (0.8mm) Contact Tip and 8' Cable
Contact tip wrench
Additional contact tips (.030" and .035")
Instruction Manual
