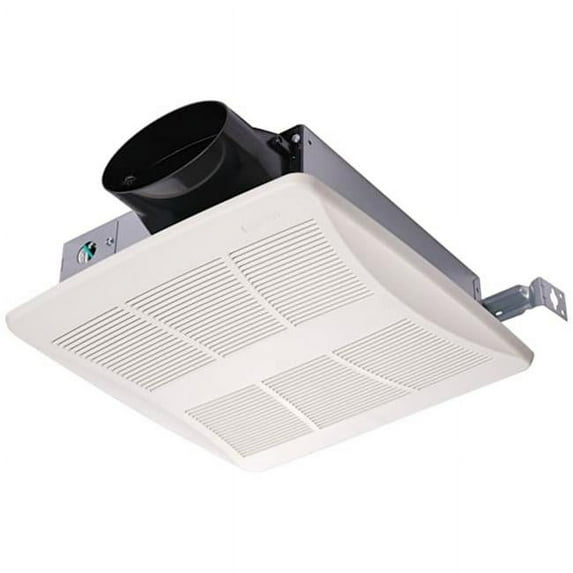

Broan NuTone LP510R 50, 80 & 100 Selectable CFM Low-Profile Energy Star Continuous Run Exhaust Fan

The Broan Lo-Profile fan is their solution for installations where conventional ventilation simply won't fit. The Lo-Profile fan is narrow enough to be installed in a wall between 2x4 studs, such as multi-family applications. This fan is the only exhaust ventilation fan on the market that features selectable CFM, between 50, 80, and 100 CFM and pre-installed continuous run that allows a user to set their low-speed mode between 30 and 100 CFM. Features TRUE CFM which when installed the fan will not lose CFM performance regardless of how complicated the ducting.

• Meets ASHRAE 62.2 and is Energy Star certified.
• 100 CFM provides powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
• 1.2 audible sones for ultra quiet performance
• Energy Star certified for energy efficient operation
• Adjustable low CFM setting allows precise adjustment to prevent over-ventilating and maximize energy efficiency
• 4 inch oval duct connection for installation flexibility, allows for ceiling or wall mounting
• Powerful enough for rooms up to 90 sq. ft.
• ETL listed for use over bathtubs and showers when connected to GFCI protected branch circuit (ceiling installation only)
• Meets ASHRAE 62.2

• CFM: 100, 50, 80
• Depth: 13 in.
• Duct Size: 4" Round
• Grille Length: 13.75 in.
• Grille Width: 13 in.
• Housing Depth: 3.375 in.
• Housing Length: 10.25 in.
• Housing Width: 10.25 in.
• Length: 13.75 in.
• Width: 13 in.
• Fan Only: Yes
• Duct Discharge: Horizontal, Vertical
• Fan Type: Bath Fan
• Grille Shape: Rectangle
• Housing Shape: Square
• Material: Plastic
• Mount Type: Ceiling
