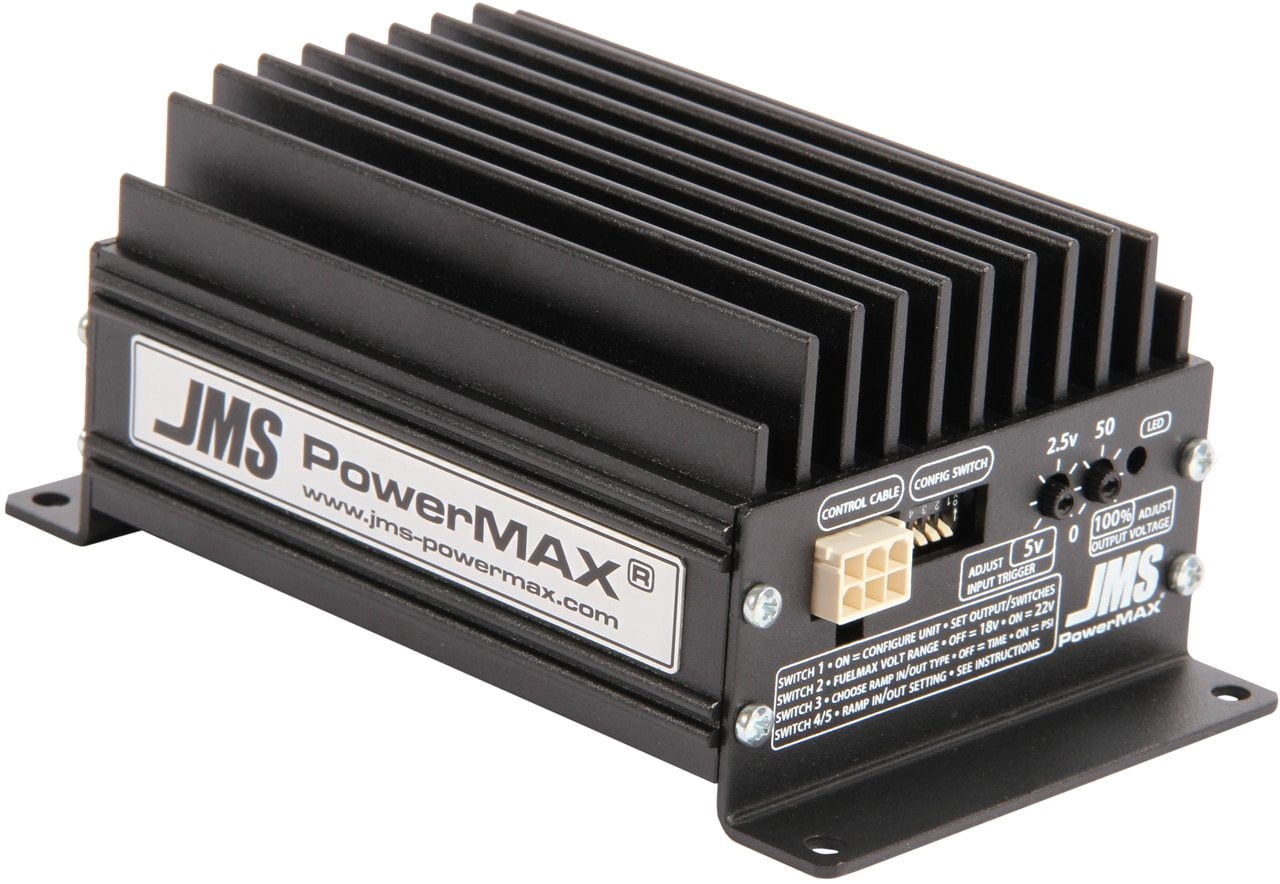

JMS 2015-2021 Fits Ford Mustang Fuelmax Fuel Pump Voltage Booster V2 Plug & Play Single Output P2000PPM15

Features:

• Adjust the Voltage Ramp In / Out time correct & eliminate fuel pressure spikes
• Single Or Dual Input/ Output Versions
• 4 models available for complete coverage
• LED to visually monitor the status Of your powerMAX Boost-A device
• New Enables 0-5V or Optional Internal Boost
• Works on all vehicles
• Domestics & Imports
• Compatible with all 12V or 16V  battery systems
• Plug & Play Versions
• Simple installation

Since 2010, PowerMAX has set the standard for Boost-A devices. PowerMAX combines the best of two worlds into one product Clean continuous voltage & the highest available amperage. PowerMAX Version 2 offers single or dual outputs along with multiple new features.

SIMPLE INSTALLATION:

• Choose the Plug & Play version or splice into your existing fuel pump, ignition system, intercooler pump or cooling fan via included installation kit.

CASE / ENCLOSURE:

• Industrial Black Heatsink With four mounting tabs.

DIMENSIONS:

• LENGTH: 47/8"
• WIDTH: 3 7/8'
• HEIGHT: 27/16"

Overview:

• High performance Digital Voltage Booster-Regulator
• Available with either Single or Dual Inputs & Outputs
• Trigger boosted output voltage via Ground Or 0-5V sensor
• Optional Trigger via adjustable Internal Boost Sensor

Output:

Continuous Output Rating: 31 AMPS @
peak Output Rating:             38 @ (60 seconds)

Input:
Input voltage:   9.5V -19V DC
Input Fuse:        80 AMPS (dual) or 40 AMPS (single)

Maximum Voltage output For each Model:
FuelMAX:          22V or 18V (dual range adjustable Output)
SparkMAX:       25V (adjustable output)
SparkMAX Race: 31 V (adjustable output)
InterC001MAX:  16V (continuous output)
FanMAX:             15V (continuous output)
COMPATIBILITY:

• Compatible with all 12V or 16V battery
• systems (9.5Vto 19V)

LOWEST VOLTAGE DROP:
When PowerMax is not boosting output voltage the voltage drop across the unit is only: 0.05V
USER ADJUSTABLE OUTPUT VOLTAGE:

• Adjust the output voltage via the knobs on the front panel,
• Use the dip switches to save the voltage setting.
• Optional remote mounted voltage control knob overrides
• saved voltage setting and can be adjusted from the drivers seat.
• Adjustment range: 14.5V

• Installation Kit Included:

  • Enable Wire harness, adapter fitting (1/8th NPT to barb)
  • Hobbs switch preset @ 5psi (user adjustable 3-7psi), solder
  • heat shrink ring terminals, heat shrink wire splices, tie straps
  • self-tapping screws, vacuum line, 1/4" to 3/1 6" vacuum tee
  • 3/16" vacuum tee, 3/16 to 3/8" vacuum tee and 30 amp mini-fuse.

  Note: The installation kit is specific to each PowerMAX model

  Brand: JMS
  UPC: 021201230263

  • 2015-2021 Fits Ford Mustang
