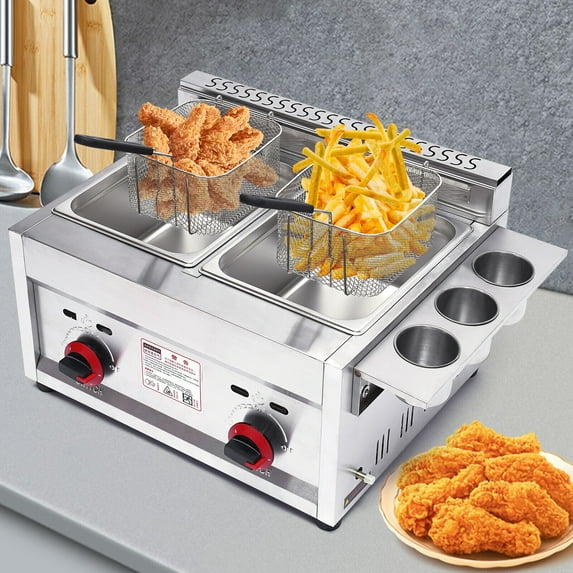

Miumaeov Stainless Steel Countertop Gas Fryer,Commercial Deep Fryer 2 Basket Propane LPG

Specification

Material: 430 stainless steel

Heating Power: 18000Btu/hr

Furnace: Round Infrared Stove

Temperature Range: 200-350 Degrees Fahrenheit

Frying Basket Size: 18.5*20.5*10.5cm/7.3*8.1*4.1in

Frying Basket Handle Length: 21cm/8.3in

Oil Pan Size: 26*32.5*14.5cm/10.2*12.8*5.7in

Capacity: 6L*2/1.59GAL*2

Product Dimensions: 57*47*35cm/22.4*18.50*13.80in

Gross Weight: 15kg/33.07lbs

Net Weight: 13kg/28.66lbs

Type: LPG + pressure reducing valve (low pressure valve needs to be purchased by the customer)

Without Ignition:

1. The cylinder valve is not open. (Unscrew the valve )

2. Air is mixed into the trachea. (Repeat 3Times)

3. The ignition nozzle is blocked by the burner nozzle. (Insert a thin iron wire into the nozzle hole）

Electronic Ignition Dim or Malfunction:

1. Improper distance between firing needle and firing switch. (The correct position is 3.5-4mm)

2. The firing needle is dirty. (Wipe off with a dry cloth or emery cloth)

3. Piezoelectric ceramic components fail. (Replace piezoelectric ceramics)

Abnormal Burning:

1. The fire hole is blocked by dirt. (Remove dirt)

2. Insufficient air pressure. (Replace with new gas)

3. Improper air conditioning. (Adjust the air valve)

Package Included

1*Gas Fryer

1*Trachea

2*Frying Baskets

2*Pot Lids

4*Foot Pads

2*Oil Pans

2*Frying Basket Handles

2*Switches

3*Small Buckets

1*Bucket Holder

Notes

Please notice that the low-pressure valve is not included in the package.

Please notice that when used for the first time, the damper must be adjusted to avoid the occurrence of yellow flame or flame separation, which will affect the ignition or even extinguish the flame.

Please notice that the damper is at the bottom of the cooker. The flame state can be adjusted to achieve the best combustion effect by simply turning the air flap handle.

Please notice that the machine must be placed outside/well ventilated/equipped with a smoke extraction device.

Please notice that only LPG and low-pressure valves are allowed to be used in this machine, the high-pressure valve is forbidden to be used, and the gas cylinder should be strictly prevented from being inverted. Otherwise, it is very easy to cause an explosion and fire accident and gas nozzle blockage. Gas cylinders must be placed 2 meters away from the machine in a place with a partition wall.

Please notice that during use, the operator must not leave the stove and observe the burning of the stove. If the flame goes out, the valve of the gas cylinder should be closed immediately.
