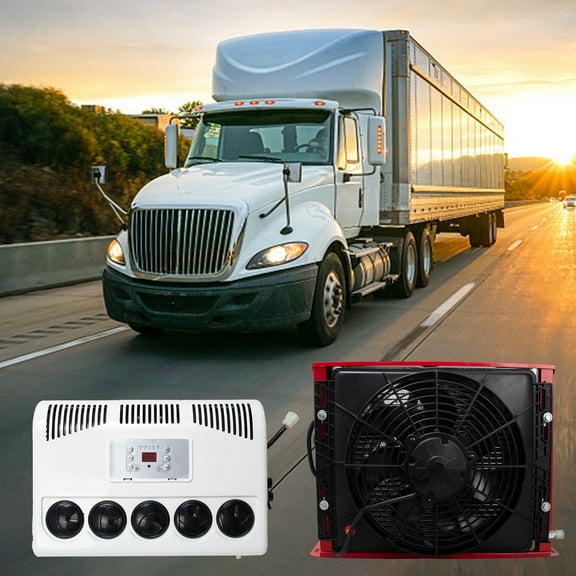

Miumaeov 12V DC 12000 BTU Truck Split A/C Air Conditioner Sets For Semi Trucks Bus Caravan Cab RV

NOTE:

Installation Manual Is Included

Professional Installation Is Highly Recommended

The Air conditioner outdoor unit color is red and white shipped randomly

Specification:

12V

Current (A)：60A-80A

Rated power：960W

Cooling capacity：1000W-3000W

Refrigerant：R134A 600g (Not include)

Oil：90ml-120ml POE68

Circulating air volume: 600m³/H

Range of speed：1000-3000

Outdoor unit size：660*490*210 (mm)

Indoor unit size：450*330*160 (mm)

Manual measurement, there is a certain error, for reference only

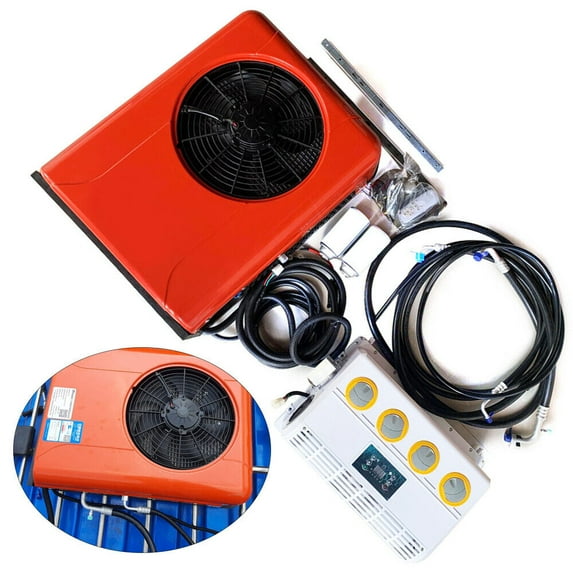

Package includes:

1 x Air Conditioner Set

1 x Product Manual

Electric Air Conditioner Usage Instructions

Panel, remote control operation

1." Power ": short press to start, long press to shut down. Long press in 10 seconds in the state of shutdown, to restore the factory settings.

2.“ Air volume”: “+” key increase air supply and the under voltage protection value. “-” key decrease air supply and the under voltage protection value.

3.“AC mode”：Circular long press by one second switching mode: air supply, manual, automatic, strong; 10 seconds go into the under voltage value and the under voltage recovery value adjustment state. After finishing adjusting the under voltage value, it will automatically memory and exit after 5 seconds.

4. “Temperature”: “+”key increase temperature and the under voltage protection value. “-” key decrease temperature and the under voltage protection value.

Under voltage protection value and under voltage recovery value adjustment: long press the mode key. 10 seconds to go into the adjustment interface. Adjust the wind speed plus and minus key to set the under voltage protection value. Adjust the temperature plus and minus key to set the under voltage recovery value.

5. “Strong” key: Press to enter the strong refrigeration model.

6.“ Energy saving” key: Press to enter the energy saving refrigeration mod

7. Full frequency conversion energy saving function: the temperature sensor sends out the outlet to induce the outlet temperature, automatically adjusts the speed of the compressor, and realizes energy saving and electricity saving.

Fault code description

If there is any fault, the fault indicator light will light up. All the faults will cause the compressor to stop. Please check the fault code to identify the specific fault.

Temperature sensor failure EC Check whether the sensing line is off or invalid
Run high current protection E-2 Check whether the refrigerant is overcharged and whether the fan is running normally
Compressor stall protection E-3 Cleaning the air conditioning system
Undervoltage protection E-4 The generator power is insufficient, and the battery does not store electricity
Poor cooling protection E-5 Check whether the position of the sensor is correct or lack of refrigerant
Electronic fan failure E-6 Replace the fan
Compressor phase loss E-7 Check whether the terminal is in bad contact
Temperature protection E-9 Lack of refrigerant or hot air from the air-conditioning host, change the location of the host to avoid heat sources near the air inlet
