Hero image 0 of Mitsubishi Electric SVZ-KP24NA - 24000 BTUH MultiPosition Indoor Unit (SVZ-KP24NA), 0 of 5
Mitsubishi Electric SVZ-KP24NA - 24000 BTUH MultiPosition Indoor Unit (SVZ-KP24NA)
(No ratings yet)
Key item features
- Features Energy Efficient Circulation The SVZ-KP air handler includes an ECM blower motor to provide more efficient and more intelligent airflow for your home. Airtight The SVZ-KP air handler features a positive pressure cabinet with less than 2.0% air leakage, allowing your comfort system to produce results at its full potential. Simple Maintenance With a removable blower, the air handler can be easily cleaned and maintained. The air handler also includes a washable filter to ensure the air in your home is as fresh as can be. Flexible Venting With the ability to be installed vertically or horizontally, the SVZ-KP air handler can be easily adapted to fit in any duct system. Specs
- Product Category: Mini Split System Components
- Type: Ducted Vertical Air Handler
- Product Line: M-Series
- Product Category: Mini Split System Components
- Operating Mode Learn More: Heating and Cooling
- Multi-Zone Compatible: Yes
- Indoor Unit Size(s): 24
- Installation Location: Indoor
- Cooling BTU: 24000
- Cooling Capacity: 24000 BTU
- Maximum Air Flow: 735 CFM
- Minimum Air Flow: 515 CFM
- Minimum Sound Level: 30 dB
- Maximum Sound Level Learn More: 38 dB
- Phase: 1
- Frequency: 60 Hz
- Gas Connection Size: 5/8 Inch
- Liquid Connection Size: 3/8 Inch
- Product Height: 39 13/16 Inches
- Product Width: 17 Inches
- Product Depth: 21 5/8 Inches
- Product Weight: 106 Pounds
- Shipping Weight: 106 Pounds
- ETL Listed: Yes
- Parts Warranty Learn More: 5 Years
- Crafted from durable materials and designed for a long service life.
- Engineered to withstand heavy use and harsh conditions.
- Easy to install to for everyone, whether for DIY enthusiasts or professional installation.
- Thoroughly tested to meet industry standards and deliver reliable results.
- Air Handlers & Indoor Units
Specs
- BrandMitsubishi Electric
- Volts230 V
- Has written warrantyNo
- ColorBlack
- Dimensions12.01 x 12.01 x 39.00 Inches
- Weight106 lb
Current price is USD$250.00
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SVZ-KP24NA is a heat pump air handler unit designed to bring high-efficiency temperature control to larger zones. This unit features a highly efficient, completely enclosed EC motor and a positive pressure cabinet with air leakage of less than 2.0%. Its unique blow through design allows for simple coil cleaning when the blower is removed. Pair the SVZ-KP24NA with a Mitsubishi outdoor condenser for efficient and effective home comfort for years to come.
- Features Energy Efficient Circulation The SVZ-KP air handler includes an ECM blower motor to provide more efficient and more intelligent airflow for your home. Airtight The SVZ-KP air handler features a positive pressure cabinet with less than 2.0% air leakage, allowing your comfort system to produce results at its full potential. Simple Maintenance With a removable blower, the air handler can be easily cleaned and maintained. The air handler also includes a washable filter to ensure the air in your home is as fresh as can be. Flexible Venting With the ability to be installed vertically or horizontally, the SVZ-KP air handler can be easily adapted to fit in any duct system. Specs
- Product Category: Mini Split System Components
- Type: Ducted Vertical Air Handler
- Product Line: M-Series
- Product Category: Mini Split System Components
- Operating Mode Learn More: Heating and Cooling
- Multi-Zone Compatible: Yes
- Indoor Unit Size(s): 24
- Installation Location: Indoor
- Cooling BTU: 24000
- Cooling Capacity: 24000 BTU
- Maximum Air Flow: 735 CFM
- Minimum Air Flow: 515 CFM
- Minimum Sound Level: 30 dB
- Maximum Sound Level Learn More: 38 dB
- Phase: 1
- Frequency: 60 Hz
- Gas Connection Size: 5/8 Inch
- Liquid Connection Size: 3/8 Inch
- Product Height: 39 13/16 Inches
- Product Width: 17 Inches
- Product Depth: 21 5/8 Inches
- Product Weight: 106 Pounds
- Shipping Weight: 106 Pounds
- ETL Listed: Yes
- Parts Warranty Learn More: 5 Years
- Crafted from durable materials and designed for a long service life.
- Engineered to withstand heavy use and harsh conditions.
- Easy to install to for everyone, whether for DIY enthusiasts or professional installation.
- Thoroughly tested to meet industry standards and deliver reliable results.
- Air Handlers & Indoor Units
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
Mitsubishi Electric
Volts
230 V
Has written warranty
No
Color
Black
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Popular items in this category
Best selling items that customers love
MrCool MVP-60-HP-MUAH-230A00-O VersaPro 2nd Gen 60K BTU Central Ducted Multiposition Air Handler $1,883.02
Sponsored$1,88302current price $1,883.02MrCool MVP-60-HP-MUAH-230A00-O VersaPro 2nd Gen 60K BTU Central Ducted Multiposition Air Handler
Shipping, arrives in 3+ daysMRCOOL MVP-48-HP-MUAH-230A00-O VersaPro 4 Ton Central Ducted Air Handler $1,768.39
Sponsored$1,76839current price $1,768.39MRCOOL MVP-48-HP-MUAH-230A00-O VersaPro 4 Ton Central Ducted Air Handler
Shipping, arrives in 3+ daysGe Air Cond Disconnct Swtch240VAC,10HP U065P010 $345.68
$34568current price $345.68Ge Air Cond Disconnct Swtch240VAC,10HP U065P010
Shipping, arrives in 3+ daysRevolv 4 Ton 13.4 SEER2 R-454B Mobile Home Air Conditioner Condenser | HSA4MD5M1SN48K $2,474.51
$2,47451current price $2,474.51Revolv 4 Ton 13.4 SEER2 R-454B Mobile Home Air Conditioner Condenser | HSA4MD5M1SN48K
Shipping, arrives in 3+ daysGe Air Cond Disconnct Swtch,Plastic,240VAC P065F $66.08
$6608current price $66.08Ge Air Cond Disconnct Swtch,Plastic,240VAC P065F
Shipping, arrives in 3+ daysGE RVAC W/ HEAT PUMP -WHT 13.5K $1,139.94
$1,13994current price $1,139.94GE RVAC W/ HEAT PUMP -WHT 13.5K
35 out of 5 Stars. 3 reviewsShipping, arrives in 3+ daysMRCOOL MVP-36-HP-MUAH-230-00 MRCOOL VersaPro Central Ducted Air Handler $1,404.83
Sponsored$1,40483current price $1,404.83MRCOOL MVP-36-HP-MUAH-230-00 MRCOOL VersaPro Central Ducted Air Handler

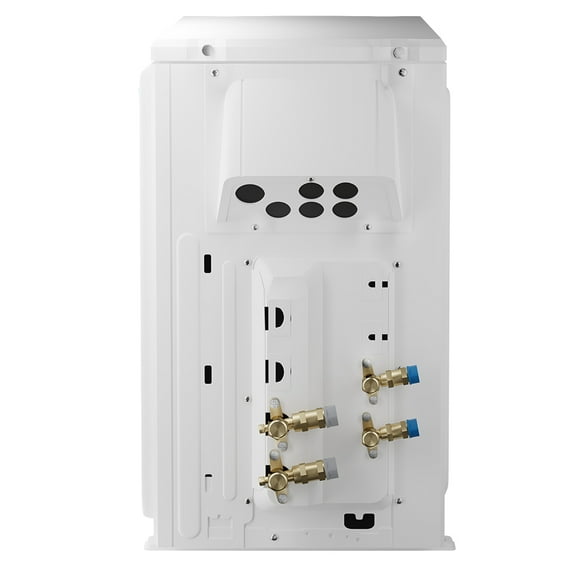

Shipping, arrives in 3+ daysMRCOOL DIY 4th Gen Multi-Zone 2-Zone Heat Pump Condenser - Up to 21 SEER - 230V $2,431.66
$2,43166current price $2,431.66MRCOOL DIY 4th Gen Multi-Zone 2-Zone Heat Pump Condenser - Up to 21 SEER - 230V
Shipping, arrives in 3+ daysMidea America 262573 115 V S2 7K Portable Air Conditioner $457.17
$45717current price $457.17Midea America 262573 115 V S2 7K Portable Air Conditioner
Shipping, arrives in 3+ daysFrigidaire Through-the-Wall Air Cond, 14000 BtuH FHTE143WA2 $1,475.95 Was $1,650.99
Now$1,47595current price Now $1,475.95, Was $1,650.99$1,650.99Frigidaire Through-the-Wall Air Cond, 14000 BtuH FHTE143WA2
84.4 out of 5 Stars. 8 reviewsShipping, arrives in 3+ daysGE RVAC HIGH EFFICIENCY BLK 13.5K $797.51
$79751current price $797.51GE RVAC HIGH EFFICIENCY BLK 13.5K
22 out of 5 Stars. 2 reviewsShipping, arrives in 3+ daysDorman 620-308 A/C Condenser Fan Assembly for Specific Mitsubishi Models Fits 2000 Mitsubishi Mirage $56.95
$5695current price $56.95Dorman 620-308 A/C Condenser Fan Assembly for Specific Mitsubishi Models Fits 2000 Mitsubishi Mirage
Save with

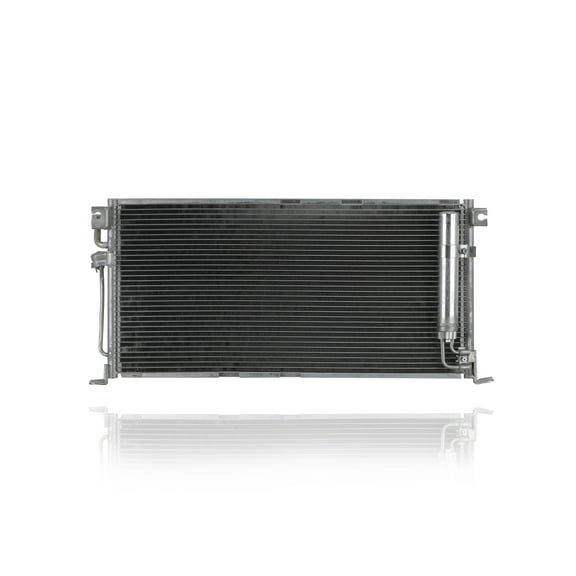

Shipping, arrives tomorrowA/C Condenser - Pacific Best Inc For/Fit 3398 04-07 Mitsubishi Lancer 2.0L WITH Receiver & Dryer $117.99
