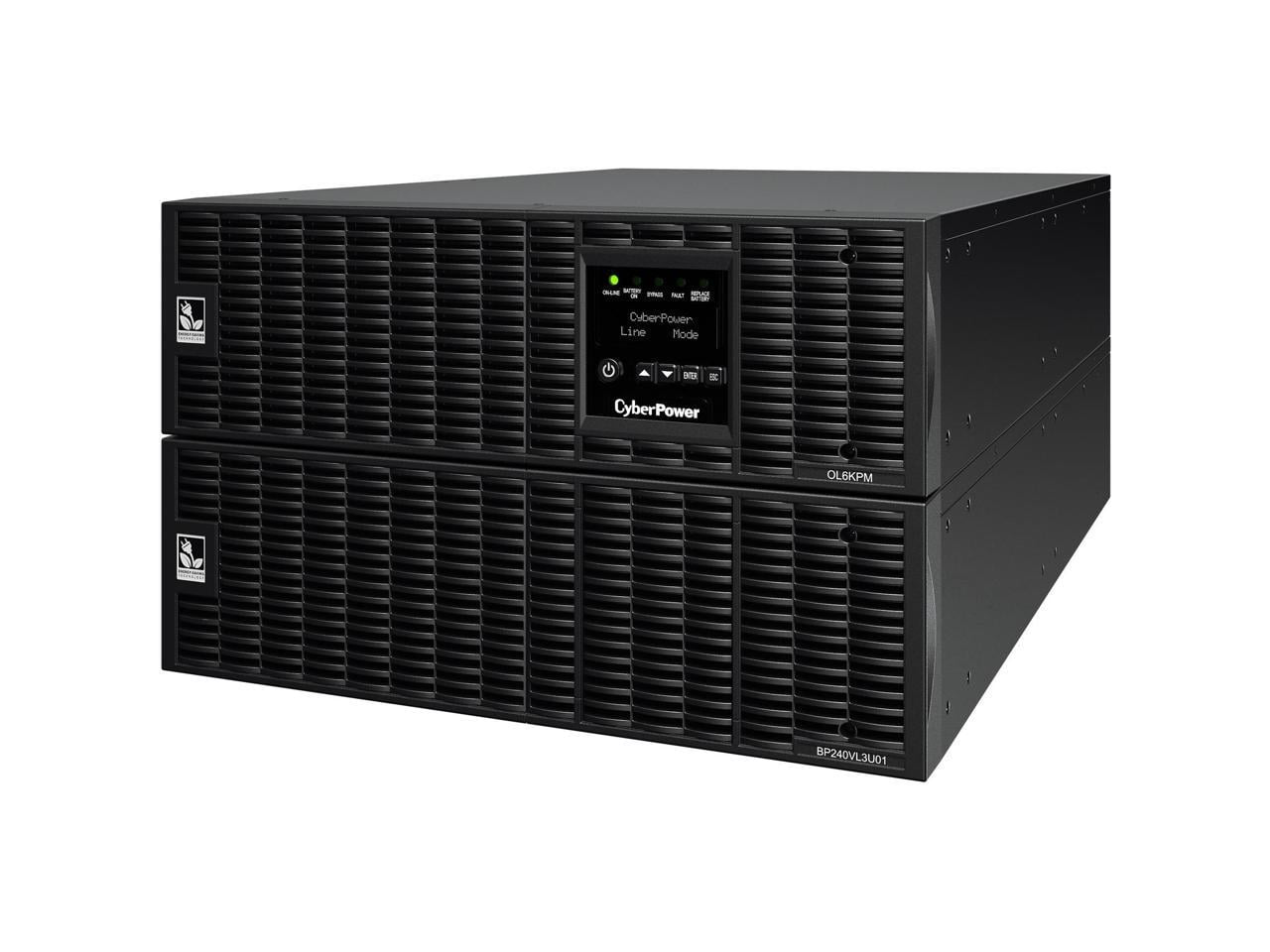

CyberPower Smart App Online OL6KRT Rack Mountable UPS

Technical Information

Plug/Connector Type: NEMA L6-30P
Receptacle Type: NEMA L6-20R, NEMA L6-30R
Receptacle Detail: 2 x NEMA L6-20R, 2 x NEMA L6-30R
Transfer Time: 0 ns
Dataline Protection: RJ-11, RJ-45
Protection Type: Backfeed, Short Circuit
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Energy Saving: ECO Mode Efficiency up to 96%
Application/Usage: IT Infrastructure, Network, Server Room, Generator
Cord Length: 10 ft
Crest Factor: 3:1
Circuit Breaker Current Rating: 30 A

Power Description

Load Capacity (VA): 6000 VA
Load Capacity (Watt): 5400 W
Input Voltage: 120 V AC, 230 V AC
Input Voltage Range: 120 V AC - 139 V AC, 180 V AC - 280 V AC
Output Voltage: 198 V AC, 292 V AC, 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Input Frequency: 40 Hz, 70 Hz
Output Frequency: 49.75 Hz, 50.25 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 2430 J
Input Power Factor: 0.99
Output Power Factor: 0.9

Display & Graphics

Display: LCD

Management

Network Management: Dry Contact
Alarm: Battery Mode

Controls/Indicators

Status Indicators:

LED Indicators:

• Power On (White)

Interfaces/Ports

Serial Port: Yes
Network (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
EPO Port: Yes

Battery Information

Number of Batteries: 20
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 5.40 Minute
Backup/Run Time (Half Load): 15 Minute
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)
Storage Temperature: -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation: 10000 ft
Maximum Storage Elevation: 50000 ft
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 65 dB(A)
Thermal Dissipation: 560.35 W

Physical Characteristics

Color Family: Black
Product Color: Black
Form Factor: Rack/Tower
Rack Height: 6U
Height: 10.5"
Width: 17"
Depth: 26"
Weight (Approximate): 222.20 lb

Miscellaneous

Package Contents:

• Smart App Online OL6KRT 6000VA Tower/Rack Mountable UPS
• Rack Mounting Hardware
• USB Cable
• Serial Cable
• Phone Cable

Energy Star: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Directly Connected Equipment Guarantee: $300000 Lifetime
