Hartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump

(No ratings yet)

Key item features

Direct Mounting: Mounts directly to the sink tailpiece, simplifying installation and saving space by eliminating the need for traps or additional inlet piping.
Versatile Application: Fits under various fixtures including wet bars, kitchenettes, vanities, and utility sinks, offering broad installation flexibility.
Compact Design: Features a compact ABS plastic housing (7" W x 8" D x 11" H) that takes up no floor space, allowing installation without breaking concrete.
Efficient Performance: Equipped with a 1/8 hp motor, providing a maximum lift of 14 ft and flow rates up to 27.5 gpm at a 4' lift.
Simplified Installation: Complies with N.S.P.C. Section 11.7.9, eliminating the need for a main stack vent connection, which reduces installation complexity (*Check Local Codes*).
Key Specifications: Operates at 115 V with a 2.2 A current, has a 1" male discharge OD, and an 8 ft cord and plug.

Generated by AI

Specs

Gallons per minute
27.5 GPM
Power type
Corded Electric
Brand
Hartell
Features
Compact
Volts
115 V
Assembled product height
11 in

Current price is $514.51

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Fri, Feb 6

Sold and shipped by Patriot Supply

4.779874213836478 stars out of 5, based on 159 seller reviews(4.8)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $851.02

About this item

Product details

Hartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump

The Hartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump offers a compact and efficient solution for draining sinks, laundry trays, wet bars, kitchenettes, vanities, and utility sinks. Here are its key features and specifications:

Specifications:

• Model: LTA-1
• Current: 2.2 A
• Voltage: 115 V
• Motor Power: 1/8 hp
• Motor Speed: 1670 rpm
• Head Size: 14 ft
• Discharge OD: 1" Male
• Inlet Size: 1 1/2 inches
• Max. Lift: 14 ft
• Weight: 15 lb
• Flow Rate:
- At 4' Lift: 27.5 gpm
- At 8' Lift: 23.0 gpm
- At 12' Lift: 13.0 gpm
- At 6' Lift: 1560 gal/h
- At 12' Lift: 750 gal/h
• Cord and Plug: 8 ft
• Auxiliary Switch: No
• 20' Tubing: No
• Shut off: 14 ft
• Reservoir: Direct Mount
• Max. Temperature: 140 ºF
• Unit Dimensions (W x D x H): 7" x 8" x 11"
• Width: 7 inches
• Depth: 8 inches
• Height: 11 inches

The Hartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump is designed for efficient and hassle-free drainage in various residential and commercial applications. Its compact design, easy installation, and versatile features make it an ideal choice for space-limited environments.

Direct Mounting: Mounts directly to the sink tailpiece, simplifying installation and saving space.
No Traps or Inlet Piping Required: Eliminates the need for traps or additional inlet piping, streamlining the installation process.
No Main Stack Vent Connection Required: Complies with N.S.P.C. Section 11.7.9, reducing installation complexity. (*Check Local Codes*)
Versatile Installation: Fits under various fixtures including wet bars, kitchenettes, vanities, and utility sinks.
Simple Installation: Easy installation process saves time and effort.
Space-Saving Design: Compact ABS plastic housing takes up no floor space, allowing for installation without breaking concrete.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Plumbing pump type

Sink Drain-Laundry Tray Pump

Gallons per minute

27.5 GPM

Power type

Corded Electric

Brand

Hartell

Warranty

Warranty information

Pump Products honors all manufacturer warranties. If an issue occurs with a product purchased through us and is still covered by a valid warranty, contact us at 1-800-429-0800. We will assist in getting your product evaluated. The manufacturer will likely require you to first troubleshoot the issue with them directly in order to obtain a case or claim number. Warranties are good for repair or replacement of the same make and model only. They are not eligible to return for refunds or credit. This process can take 1 to 4 weeks to process. If approved Pump Products will ship the replacement item from our stock. It is the customerâs responsibility to ship the product to the manufacturer. Shipping costs are also the responsibility of the customer, and will be charged prior to shipment. In addition to a $25 handling charge for ground shipments, $35 charge for freight shipments will be included in the cost of the shipping to cover the cost of properly packaging the pump.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.

Compare with similar items

Comparison Overview:

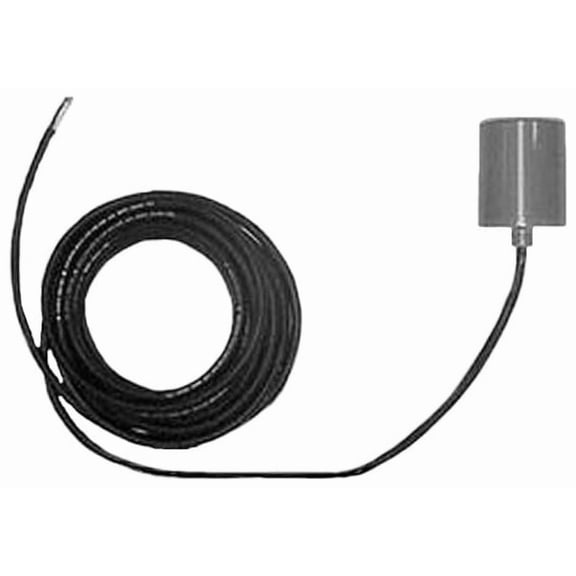

Product	Viewing this item Hartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump current price $514.51 Hartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump	Multiquip 1 Hp Submersible Trash Pump With Float current price $476.99 Multiquip 1 Hp Submersible Trash Pump With Float	Zoeller 10-0748 115V/230V 20A Piggyback Variable Level Float Switch current price $483.71 Zoeller 10-0748 115V/230V 20A Piggyback Variable Level Float Switch	SFA Saniflo 984468 13.75 in. 4.8 LPF White Grinder Pump current price Now $410.00, Was $436.00 SFA Saniflo 984468 13.75 in. 4.8 LPF White Grinder Pump 5 out of 5 Stars. 4 reviews	Hartell Sink Drain Pump System,Piggyback,1/4 HP LTP-1 current price $585.14 Hartell Sink Drain Pump System,Piggyback,1/4 HP LTP-1	Zoeller 267-0001, 1/2 HP, 115 Volts, Waste-Mate Sewage Plumbing Pump current price $514.50 Zoeller 267-0001, 1/2 HP, 115 Volts, Waste-Mate Sewage Plumbing Pump 1 out of 5 Stars. 1 reviews

Comparison Chart:

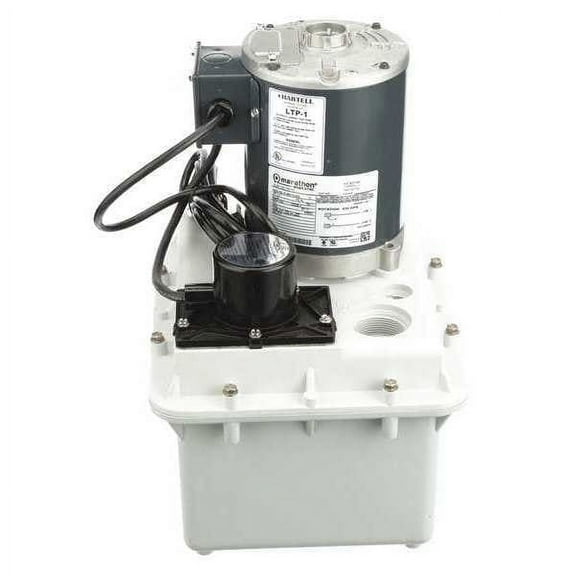

Gallons per minute	27.5 GPMHartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump	-Multiquip 1 Hp Submersible Trash Pump With Float	-Zoeller 10-0748 115V/230V 20A Piggyback Variable Level Float Switch	4.8 GPMSFA Saniflo 984468 13.75 in. 4.8 LPF White Grinder Pump	45 GPMHartell Sink Drain Pump System,Piggyback,1/4 HP LTP-1	125 GPMZoeller 267-0001, 1/2 HP, 115 Volts, Waste-Mate Sewage Plumbing Pump
Power type	Corded ElectricHartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump	Corded ElectricMultiquip 1 Hp Submersible Trash Pump With Float	-Zoeller 10-0748 115V/230V 20A Piggyback Variable Level Float Switch	ElectricSFA Saniflo 984468 13.75 in. 4.8 LPF White Grinder Pump	Corded ElectricHartell Sink Drain Pump System,Piggyback,1/4 HP LTP-1	Corded ElectricZoeller 267-0001, 1/2 HP, 115 Volts, Waste-Mate Sewage Plumbing Pump
Features	CompactHartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump	CompactMultiquip 1 Hp Submersible Trash Pump With Float	AdjustableZoeller 10-0748 115V/230V 20A Piggyback Variable Level Float Switch	DurableSFA Saniflo 984468 13.75 in. 4.8 LPF White Grinder Pump	-Hartell Sink Drain Pump System,Piggyback,1/4 HP LTP-1	DurableZoeller 267-0001, 1/2 HP, 115 Volts, Waste-Mate Sewage Plumbing Pump
Volts	115 VHartell 802210 LTA-1 120V Sink Drain-Laundry Tray Pump	115 VMultiquip 1 Hp Submersible Trash Pump With Float	125 VZoeller 10-0748 115V/230V 20A Piggyback Variable Level Float Switch	120 VSFA Saniflo 984468 13.75 in. 4.8 LPF White Grinder Pump	115 VHartell Sink Drain Pump System,Piggyback,1/4 HP LTP-1	115 VZoeller 267-0001, 1/2 HP, 115 Volts, Waste-Mate Sewage Plumbing Pump
