Hero image 0 of Mean Well EPP-400-48 Power Supply 254W 48V, 0 of 1

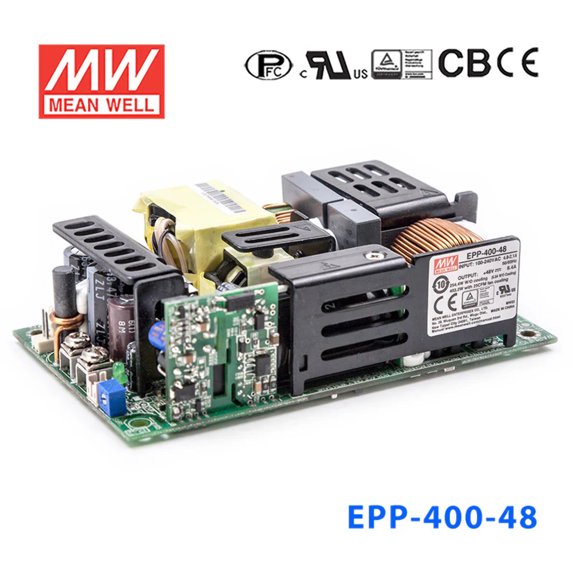

Mean Well EPP-400-48 Power Supply 254W 48V

Name: Mean Well EPP-400-48 Power Supply 254W 48V
Brand: unknown
SKU: 5790707985
Price: 77.54 USD
Availability: InStock

(No ratings yet)

Key item features

Specs

Watts
254 Watts
Brand
unknown
Volts
48 V

Current price is $77.54

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives between Feb 20 - Feb 24

Sold and shipped by Power Supply Mall

3.75 stars out of 5, based on 4 seller reviews(3.8)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Features

Universal AC input / Full range

Built-in active PFC function
EMI Class B for Class I & Class A for Class II configuration

High efficiency up to 93%

Withstand 300VAC surge input for 6 seconds
No load power consumption<0.5W by PS ON control
5"x3" miniature size
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 250W and 400W with 25 CFM forced air
Built-in 12V/0.5A FAN
With power good and fail signal output
Built-in remote sense function

No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @ 0.6A without fan

LED indicator for power on
Output 18V available

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range	80 ~ 264VAC; 113 ~ 370VDC
AC inrush current	COLD START 40A/115VAC
Leakage current	<0.75mA / 240VAC
Overload protection	105 ~ 135% rated output power
Over-voltage protection	108%~130% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 16ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	127x76.2x35
Packing	36pcs / 15kg

Mean Well EPP-400-48 Power Supply 254W 48V
