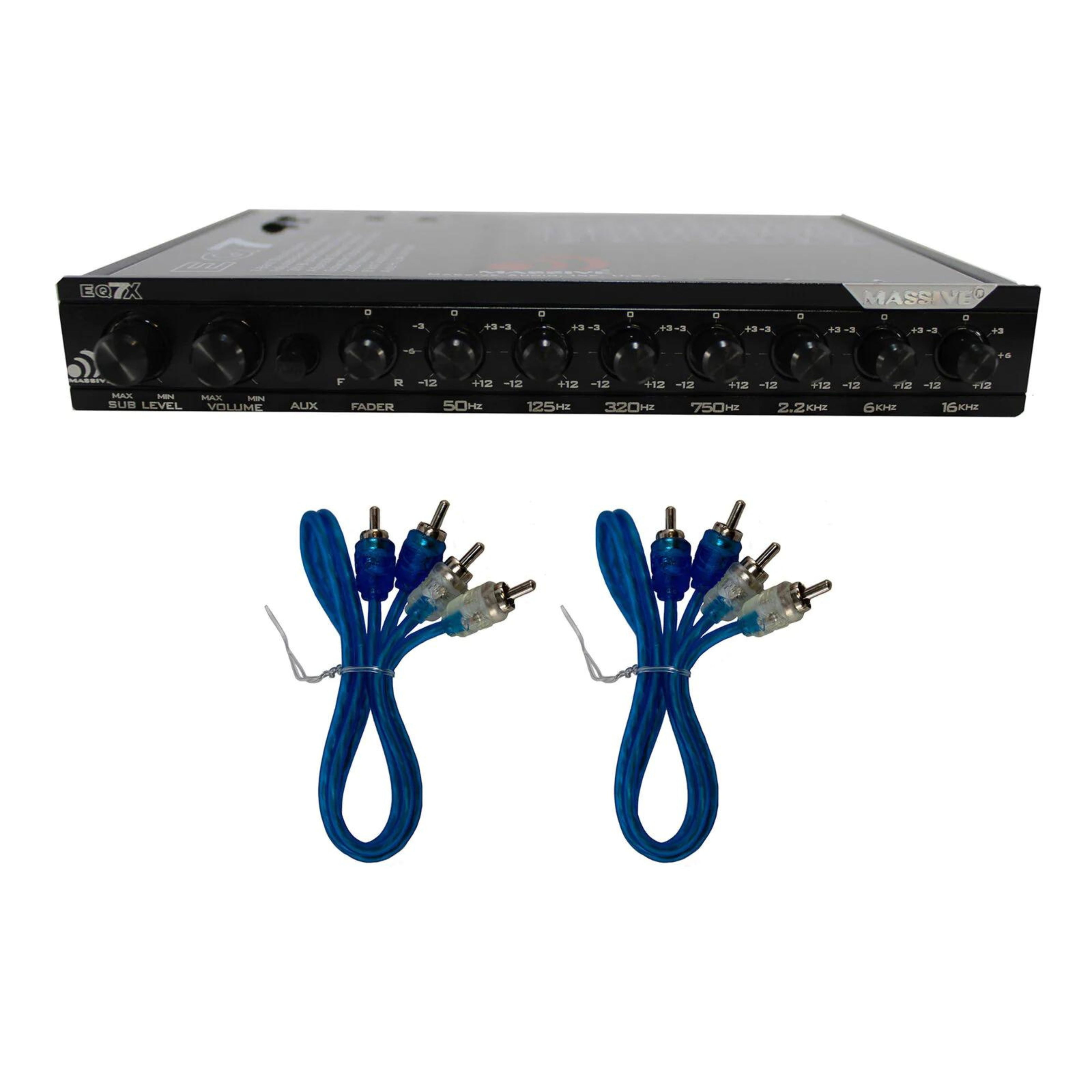

Massive Audio 7 Band Graphic Equalizer EQ7X + Male to Male 18" R2RCA18IN

Massive Audio 7 Band Graphic Equalizer EQ7X + Male to Male 18" R2RCA18IN

The Massive EQ 7X is a half din 7 Band Graphic EQ that will correct peaks and dips in sound characteristics associated with most vehicles' interior that dampens and limits both speaker output and imaging. This EQ provides powerful features in a compact size.

This listing includes:
(1) Equalizer EQ7X
(1) Pair of 18" RCA Cable R2RCA18IN
- 2 Channel RCA Cables
- Male to Male (Both Channels)
- Coaxial Shielded Cable

Equalizer Features:
- Adjustable Master Volume Level Control
- Adjustable Active Gain Preamp
- Adjustable Subwoofer Level Control
- Gold Plated RCA Connectors
- Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs

Equalizer Specifications:
1/2 DIN
7 Band Graphic Equalizer
50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz
Each Frequency Adjustable From -12dB to +12dB
* -15dB to +15dB for Subwoofer Frequencies
Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz
8 Volt Output Line Driver
RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone
6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)
Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N
30V Bi-Polar Switching Power Supply
20dB Headroom
Input Impedance 20K Ohms
Output Impendance 2K Ohms
Stereo Separation 82dB / 1KHz
Operating Voltage 11V - 15V Negitive Ground
ISO Mounting Holes / Removable Trim Ring
2-Channel RCA Input with Adjustable Gain

Equalizer Dimension:
7"(W) " 1"(H) " 4 1/8"(D)
