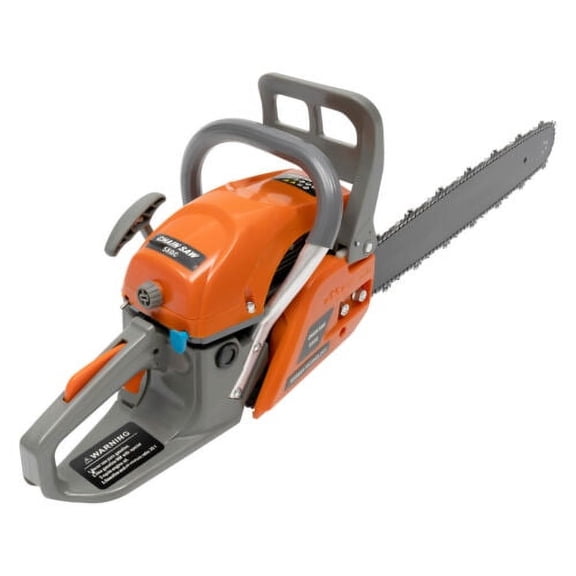

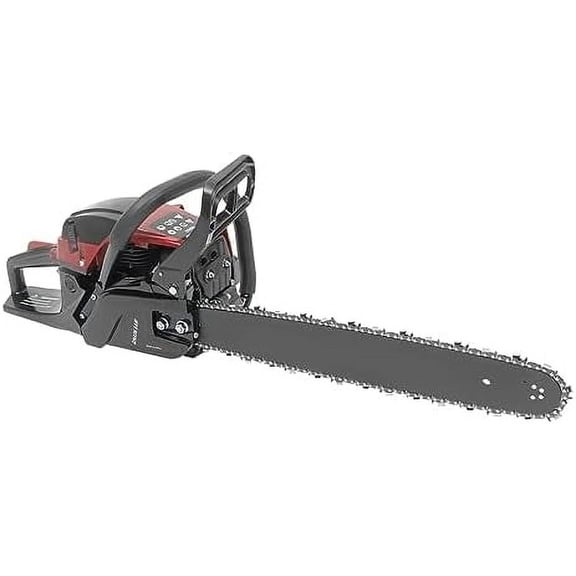

Manual 20" Gasoline Chainsaw Powered Wood Cutting Garden Gas Chain Saw 58CC

With High-quality Materials, Superior Performance, and a Powerful Engine, This Gasoline Chainsaw Is an Efficient Professional Cutting Tool That Saves You Time and Labor. Silent and Vibration-dampening Design, Ergonomic Handle, Dual on/off Switch, Brake Flap, and Pull-type Ignition Make It Comfortable and Safe to Use.

How to Assemble the Chainsaw

Install the Jam Teeth in the Right Direction
Install the Guide bar
Install the Chain
Cover the Side Cover
Adjust the Chain Tightness
Tighten the Screw

How to Start the Chainsaw

1. Push the Brake

2. Move the on/off Switch to the on Position

3. Pull the Choke Knob Fully out to Position

4. Pull the Start Handle(Max 6 Times)

5. Push the Choke Knob Back Fully

6. Pull the Starter Until the Engine Start

Specification

Style: Modern

Model: 5800

Assembly Required: Yes

Material: Nylon, Mn Steel, Aluminum

Engine Type: Single Cylinder, Air-cooled, 2-Stroke

Ignition System: Self-reset Pull Start

Fuel Tank Capacity: 550ml/18.6oz

Chain Fuel Tank Capacity: 140ml/4.73oz

Bore: 45.2mm/1.78inch

Volume: 116db

Power: 2.4kw

Speed: 10000rpm

Displacement: 58cc

Oil Mixture: 25:1(90# Gasoline: Oil)

Chain Length: 50cm/20inch

Max. Cutting Diameter: 50cm/20inch

Overall Size: 91*24*29cm/35.82*9.44*11.41inch

Package Size: 50*27*30cm/19.68*10.63*11.81inch

Gross Weight: 7.5kg/16.53 Lbs

Net Weight: 7kg/15.43 Lbs

Package Included

1* Gas Chainsaw

1* Chain

1* Guide bar

1* Chain bar Cover

1* Fuel Tank

1* Tool Bag

1 Pair* Gloves

1* Screwdriver

1* Funnel

1* English Manual

Other Accessories for Assembly

Notes

Before Starting the Gasoline Chainsaw, Please Ensure That It Fits Well with the Guide bar, and Use a Wrench to Adjust the Chain. When Installing the Guide bar, Please Note That the Screw Column on the Side Cover Must Be Aligned with the Guide bar Hole Before Installation(the Function of the Screw Column Is to Adjust the Chain Tightness.).
Please Use Gasoline 90# with Special 2-Cycle Engine Oil and Never Use Pure Gasoline. Gasoline and Oil Mixture Ratio: 25:1. the Oil Output Can Be Controlled to Turn Larger to the Left and Smaller to the Right.
Please Note That After the First Ignition Sound, Closing the Choke and Repeatedly Pulling the Start Handle Will Suck in Too Much Fuel and Prevent the Engine from Starting.
If the Choke Knob Is Not Fully Pushed Back After Pulling the Starter Handle up to 6 Times, the Engine Preheating May Be Missed. Too Much Fuel Will Flow out and Submerge the Spark Plug. Then You Can't Start the Chainsaw. the Damper Is Used to Regulate Air Intake. When the Engine Is Cold or Not Used for a Long Time, the Damper Needs to Be Pulled. If the Engine Is Hot, It Can Be Started Directly. This Is the Same As the Principle of Starting a Motorcycle! Close the Damper, Pull the Start Handle Again 1-3 Times to Start It, and Then You Can Use It Normally.
Please Pay Attention to the Tightness of the Chain During Installation (Pull the Chain by Hand. the Distance Between the Chain and the Guide Plate Is 0.12-0.2 Inches.), Otherwise, It Will Affect the Use Effect.
After the Chainsaw Is Started (the Oil Filler Door Must Be Empty.), It Must Wait for the Chain to Receive Oil Before Starting to Work(the Oil Pump Will Discharge Oil and the Ground Will Become Wet.).
The Carburetor Must Be Cleaned After Every 100h of Operation Before Use. the Air Filter Must Be Cleaned After 8h of Operation. When the Chainsaw Is Not in Use, It Is Better to Pack It in Plastic Bags to Avoid Dust and Water Entering the Machine and Affecting Its Use.
