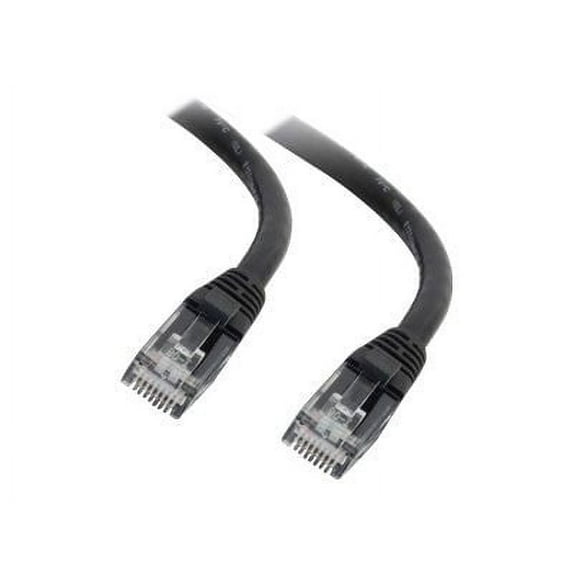

C2G Cables to Go 6ft Cat6 Snagless Unshielded (UTP) Network Patch Cable - Black 03983

The C2G 3975 6' black Cat6 snagless network patch cable is suitable for fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data or video distribution applications. This patch cable is compatible with network adapters, hubs, switches, routers, patch panels and other high performance networking applications. This cable offers RJ-45 male to RJ-45 male connection. The snagless design safeguards clips while plugging and unplugging. It has 50-micron gold plated contacts and four pairs of 24 AWG stranded bare copper conductors. It has DC resistance of 9.38 Ohm/100 m and voltage rating of 30 V. This patch cable has molded PVC hood, copper alloy contact and HDPE insulation.

• Category 6 for Network Device.
• RJ-45 Male.
• 6ft.
• Black.
• Certifications Standards: TIA/EIA.
• 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity.
• 50-micron gold plated contacts for protection against corrosion.
• 0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor.
• DC resistance: 9.38 Ohm/100 m max.
• Voltage: 30 V.
• Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum.
• Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications.
• Temperature rating: 60 deg C.
• Snagless design secures clips when plugging and unplugging.
• Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss.
• Meets RoHS compliance and TIA/EIA standards and certifications.
• Weight: 0.18 lbs.

• Sold as 1 Each.
