AEM 30-2212 CAN Sensor Module - 22 Channel

(No ratings yet)

Check if this fits your vehicle

Key item features

Versatile Conversion: Converts analog, digital, and frequency-based inputs into an AEMnet CAN bus signal for display on CD-5 Carbon and CD-7 Dashes.
Expanded Connectivity: Ideal for carbureted vehicles to add a CD Dash display and for EFI users to add more channels without multiple CAN-based devices.
Robust Design: Features an IP65-rated enclosure, making it dust-tight and water-resistant, ensuring durability in various environments.
Comprehensive Inputs: Includes four 0-5V analog, four temperature, four user-configurable analog, one fuel level, six configurable digital/frequency, one tach, and two VR pair frequency inputs.
Flexible Configuration: Offers jumper-selectable CAN bus speeds (250k, 500k, 1M), terminating resistor, and header length (11-bit or 29-bit).
Compact Dimensions: Measures 4.7" L x 4.3" W x 1.4" H (excluding connector) and weighs 6.4oz / 180g, with a 36-inch wiring harness included.

Generated by AI

Specs

Vehicle model
30-2212
Automotive electrical part & accessory type
Modules
Compatibility
CD Dashes
Vehicle fitment type
Specific
Brand
AEM
Automotive parts division
Performance

Current price is $423.95

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

I want delivery savings with

Try 30 days of Free Shipping with Walmart+! Choose plan at checkout.

How do you want your item?

Columbus, 43215

Arrives by Mon, Feb 9

Sold and shipped by Walmart.com

Free 90-day returns

This item is gift eligible

More seller options (1)

Starting from $423.95

Get free delivery, shipping and more*

*Restrictions apply

Try Walmart+ now

Compare with similar items

Comparison Overview:

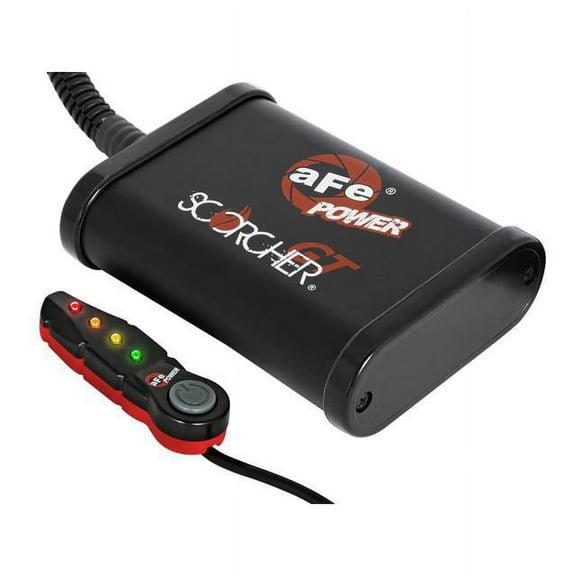

Product	Viewing this item AEM 30-2212 CAN Sensor Module - 22 Channel current price $423.95 AEM 30-2212 CAN Sensor Module - 22 Channel	aFe Power SCORCHER GT Module 77-46407 current price $442.00 aFe Power SCORCHER GT Module 77-46407	Ignitor Prestolite IAT-4403 current price $272.10 Ignitor Prestolite IAT-4403

Comparison Chart:
Vehicle model	30-2212AEM 30-2212 CAN Sensor Module - 22 Channel	77-46407aFe Power SCORCHER GT Module 77-46407	2561Ignitor Prestolite IAT-4403
Automotive electrical part & accessory type	ModulesAEM 30-2212 CAN Sensor Module - 22 Channel	ModulesaFe Power SCORCHER GT Module 77-46407	ModulesIgnitor Prestolite IAT-4403
Compatibility	CD DashesAEM 30-2212 CAN Sensor Module - 22 Channel	-aFe Power SCORCHER GT Module 77-46407	-Ignitor Prestolite IAT-4403
Vehicle fitment type	SpecificAEM 30-2212 CAN Sensor Module - 22 Channel	SpecificaFe Power SCORCHER GT Module 77-46407	SpecificIgnitor Prestolite IAT-4403

Now hiding additional rows in the Table

About this item

Product details

Converts analog, digital and frequency inputs into an AEMnet CAN bus signal ;

"AEM’s 22 Channel CAN Sensor Module (PN 30-2212) converts analog, digital and frequency inputs into an AEMnet CAN bus signal that can be transmitted to the CD-5 Carbon and CD-7 Digital Dashes. This expansion module provides a way for users with carbureted vehicles to add a CD Digital Dash Display and lets users with existing CAN-based devices add more channels to the display for viewing and/or data logging (data logging requires CD-5L Carbon or CD-7L logging Dashes). The 22-Channel CAN Sensor Module is compatible with the CD Dashes only; it will run in parallel with 3rd party CAN devices on the CD dashes but it is currently not compatible with AEM’s AQ-1 Data Logger, Series 2 or Infinity ECUs, or 3rd party ECUs or loggers. WHAT YOU GET;

Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
Perfect for users with carbureted vehicles who want to add a CD Dash display
Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
Daisy chain two Modules together for additional channels
IP65-rated enclosure is 'dust tight' and water resistant
Wiring harness included with 36-inch flying leads and pre-wired CAN cable
Four dedicated 0-5V Analog inputs
Four Temperature (thermistor) inputs
Four user-configurable Analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
One dedicated Fuel Level input (0 to 250 ohm range)
Six configurable Digital or Frequency inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
One Tach input, trigger when low, 12v internal Pull Up
Two VR Pair Frequency inputs (crank, wheel or drive shaft speeds)
Jumper selectable CAN bus speeds, 250k,500k,1M
Jumper selectable terminating resistor
Jumper selectable header length, 11bit or 29 bit
Dimensions: 4.7" L x 4.3" W x 1.4" H (not including connector)
Weight: 6.4oz / 180g
