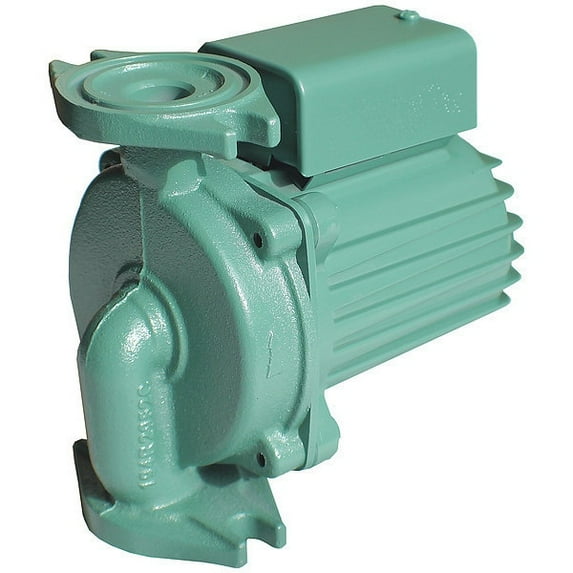

Taco 009-F5 Cast Iron Cartridge Circulator - 009 Series, 115 V

The Taco 009 is designed for a wide range of residential and light commercial higher-head/lower-flow water circulating applications. Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems. The Stainless Steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct drive, low power consumption design is ideal for high-efficiency jobs. Features: standard high capacity output-compact design, quiet and efficient operation, direct drive - low power consumption, unique replaceable cartridge design - field serviceable, self lubricating, no mechanical seal, unmatched reliability, maintenance free, universal flange to flange dimensions, and cast iron construction. Motor Type: Permanent Split Capacitor Impedance Protected. Maximum Flow: 10 GPM. Maximum Range: 35'. Minimum Fluid Temperature: 40°F (4°C). Maximum Fluid Temperature: 230°F (110°C). Maximum Working Pressure: 150 PSI. Connection Sizes: 3/4", 1", 1-1/4", and 1-1/2" Flanged. Dimensions: 7" x 5-11/16" x 3-3/16" x 3-15/16" x 4-1/8" x 6-3/8".
