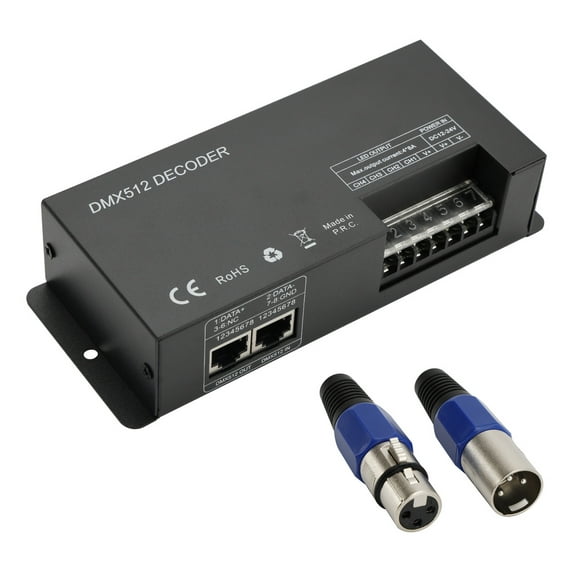

4 Channel DMX 512 Decoder, RGBW PWM Dimming Controller, LED Strip Light
Description:
This DMX512 decoder adopts an advanced microcontroller unit and can receive the internationally widely used DMX-512 standard digital control signal. It converts the signal into a PWM control signal to drive the LED light. It can also be connected to a digital DMX console to change the light or perform various dynamic effects. In addition, when the decoder is not connected to a DMX console, it can be used as a synchronous controller.
That is, you can synchronously control the number of decoders and LED lights.
Technical parameters:
1. Working temperature: -20 to 60 C.
Supply voltage: 12 24 V DC.
3 channels:
4 channels. External dimensions: 164 × 65 × 40 mm long.
Output current: 8 A each channel.
Output power: 12V: <384W, 24V: <768W.
DMX512 Standard: DMX512/1990. The
Package includes:
1 x 4-Channel RGBW LED Controller, 2 x 3-Pin XLR Connectors (1 Male/1 Female), 1 x English Manual
