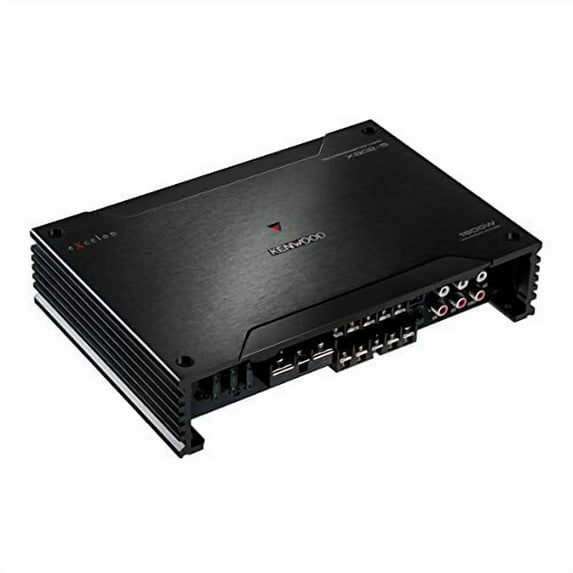

Kenwood Excelon X802-5X Series 5-channel Car amplifier

Class D technology ensures that this compact amp will run cool and perform reliably. Kenwood divided the amp's internal circuitry — analog, digital, and power supply — onto separate, non-overlapping circuit boards for improved overall sound quality. The X802-5 accepts input signals via RCA cables from an aftermarket receiver or by way of your vehicle's speaker wiring, so it'll work with almost any mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box.

Product Highlights:

• 5-channel car amplifier
• 1600W Max Power Handling
• 50W x 4 + 300W 4 Ohms
• 75W x 4 + 500W 2 Ohms
• 150W x 2 bridged at 4 ohms + 500W x 1 at 2 ohms
• CTA-2006 compliant
• Class D amp technology
• Separate variable high-pass filters on front and rear channels (50-200 Hz at 12 dB/octave)
• Variable low-pass filter on subwoofer channel (50-200 Hz at 24 dB per octave)
• Variable bass boost on sub channel (0-18 dB at 40 Hz)
• Optional KCA-RC01A wired remote control available for sub channel
• Preamp and speaker-level input
• Wiring and hardware not included with amplifier
• 4-gauge power and ground leads recommended
• Fuse rating: 30A x
• Dimensions: 9-13/16"W x 2-1/8"H x 6-3/4"D
• Warranty: 2 years
• Our 30-day Money-Back Guarantee
• MFR # X802-5

Channel Layout: The 5-channel amplifier is effectively three amps built into one chassis, two 2-channel amps labeled A (left and right) and B (left and right), and a mono amp labeled Sub. Both the A and B channels are bridgeable, so it can be wired as 5-channel, 4-channel, or 3-channel.

Class D Amplifier Design: The amplifier design is Class D, which uses digital switching power supplies. The result is the amplifier runs more efficiently, generating less heat than Class AB amps. The Class D design also allows the amplifier to be built on a small chassis, and installed where space is limited.
