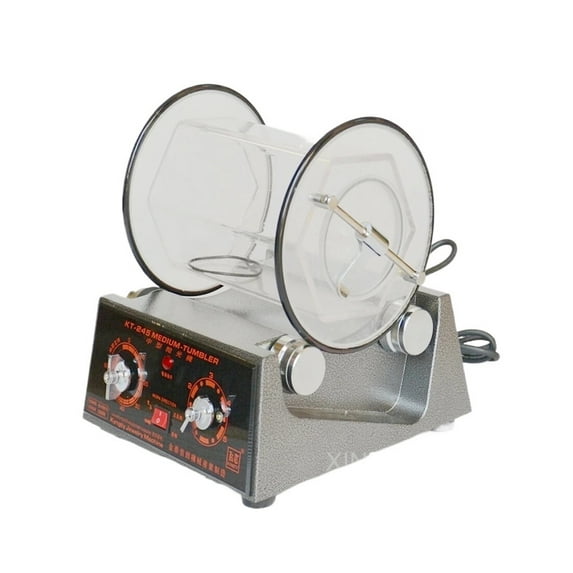

KT-245 Drum Polishing Machine, Vibratory Tumbler Finishing Machine, Rotary Tumbler Polisher 8kgs Jewelry Surface Polishing Tools ,Powerhouse Performance

KT-245 Drum Polishing Machine Vibratory Tumbler Finishing Machine Rotary Tumbler Polisher 8kgs Jewelry Surface Polishing Tools

Introduction:

Designed specifically for timing polishing, automatic bi-directional rotation-time 0-60 minutes, withdraw at the end polished trim, with four different speed , so that precious jewelry get more care treatment.

Specification:

Dimension:280mm x 300mm x 320mm

Rolling drum dimension:250X220mm

Gross Weight:12kg

Net weight:10.5kg

Capacity:8kg

Specially designed for fixed time tumbling (0-60 minutes). Auto-reverse function enables thorough tumbling. With 5variable speeds control so that jewelries can be polished with good care.

How To Load Rotary Barrels For Metal Workpieces

Effective and professional results from your tumbling processes depends on knowing how to properly load your barrel for the best result. Follow these steps to achieve the best finish and most cost-effective process for your jewelry pieces using your rotary tumbler.

Set-Up

These tumblers come fully assembled. Simply place the tumbler base on a sturdy, level work surface.

Step 1: Set the barrel on end and remove the lid.

Step 2: Add steel media to the barrel depend on the max capacity

Step 3: Add your workpieces using 1 part workpieces to 4 parts media, by volume.

Step 4: Add your compound solution to the barrel, filling the barrel to about 1/2" above the level of the media. (Follow instructions on the label of the compound you're using to mixing the solution properly.)

Step 5: Secure the lid onto the barrel. Position barrel between roller guides.

Step 6: Position barrel between roller guides and start tumbling.

Step 7: Tumbling for no more than 120 minutes.Step 8: Rinse the workpieces, stainless steel shot and the tumbler barrel. Dry the workpieces.

Warning:

Rotating rollers can be dangerous. Turn the rollers off when loading the barrel. Tie hair securely behind the head and wear snug-fitting garments. Keep hair and loose clothing away from the machine at all times.

Package list:

1 X Complete Machine
