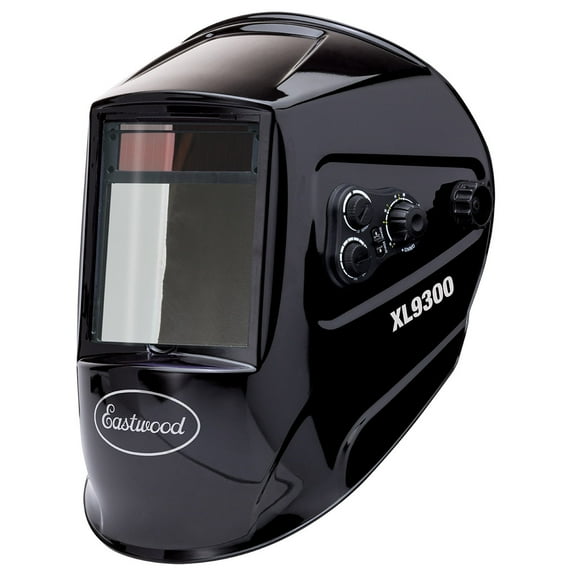

Eastwood XL View Auto Darkening Welding Helmet - XL9300

Enjoy great protection and visibility as you weld with the Eastwood Auto XL Welding Helmet. The most important aspect of an Eastwood welding helmet is that it protects your eyes from intense light and scorching hot materials. Our headgear does just that with an impact-resistant nylon shade and variable shade lens that automatically darkens to the right level. It’s incredibly strong yet comfortable enough to wear for hours at a time. We’ve given this model an extra-large viewing window so you can see the entirety of large welds. True Color Technology makes the image you see much more realistic, further improving weld quality.

Grind mode allows you to quickly reshape your tungsten, grind spot welds and more, without having to remove the helmet. An extra-large 3.9-by-3.6-inch view area assures accurate MIG or TIG welding without neck strain, and adjustable head gear eliminates fatigue. It includes a replaceable Li Mn battery with arc charging for up to three years usage. It has earned CE, ANSI and RoHs certifications.

Specifications

Color: Gloss Black
Cartridge Size: 4.5in. x 5.25in. (114mm x 133mm)
View Window Size: 3.9in. x 3.6in. (100mm x 93mm)
Optical Clarity: 1/1/1/2
Magnifying Lens Compatible: (Plate size: 2" x 4.25")
Number of Sensors: 4
Shade Control: Outside and step-less
Variable Welding Shades: Light state: DIN 4, Dark state DIN 5-9/9-13 with Grind
Sensitivity control: Variable Shade, Delay and Light sensitivity
Power: Replaceable Li-Mn & Solar Combination with arc charging for up to 3 years usage
Light to Dark Switch Time: 1/25000 sec.
Delay Control (dark to light): 0.15 sec. min. -0.8 sec.max
TIG capability: >2 amps
Certification: CE, ANSI, RoHS
Operating Temp: 23-131 deg. F (-5-55 deg. C)
Weight: 1.09lbs. (495g)
Replacement Batteries: (2) CR2032

Contents

Welding Helmet
Outer Replacement Lens
Inner Replacement Lens
