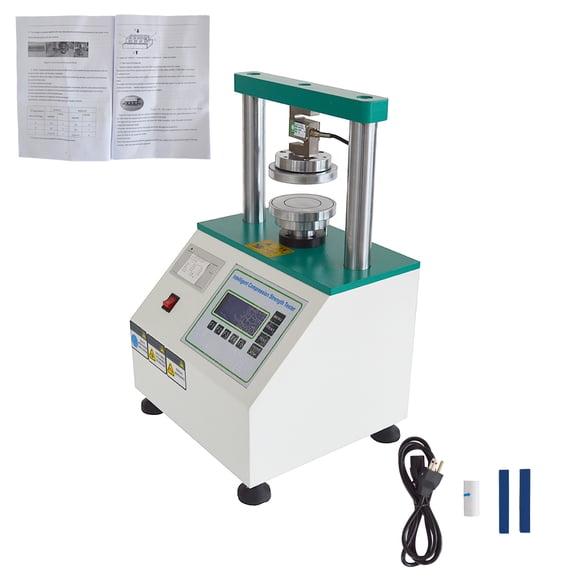

Intelligent Paper Cardboard Compression Tester Multifunctional Strength Testing Machine

Product Overview:
Cardboard compression tester known as computer monitoring control compression tester, electronic compression tester, is the basic instrument of cardboard / paper compressive strength testing. The tester equipped with various special accessories can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhesive Strength.Testing and other general compression testing, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.

Product Parameters:
Voltage: AC110V/60Hz
Measurement range: ≤200 kg(441lb)
Accuracy: ± 1%
Unit switch: N, kN, kgf, gf, lbf
Test speed: 0.5"/min
Return speed: 1.2"/min
Upper and lower platen parallelism: < 0.05mm
Pressure plate size: Diameter:4.3"/Φ110 mm(can be customized according to customer requirements)
Up and down pressure plate spacing: 2.4"/60mm (can be customized according to customer requirements)
Resolution ratio: 0.1N
Product size: 14.2"*12.6"*22.8"(36*32*58cm)
Gross weight: 101.8lb(46.2kg)

Item Included(056428):
Paperboard/paper tester *1
Printing paper * 1
Auxiliary iron *2
English instruction manual *1
