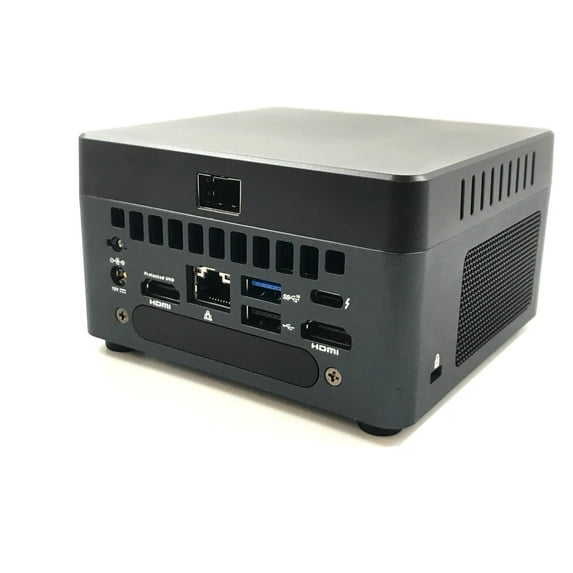

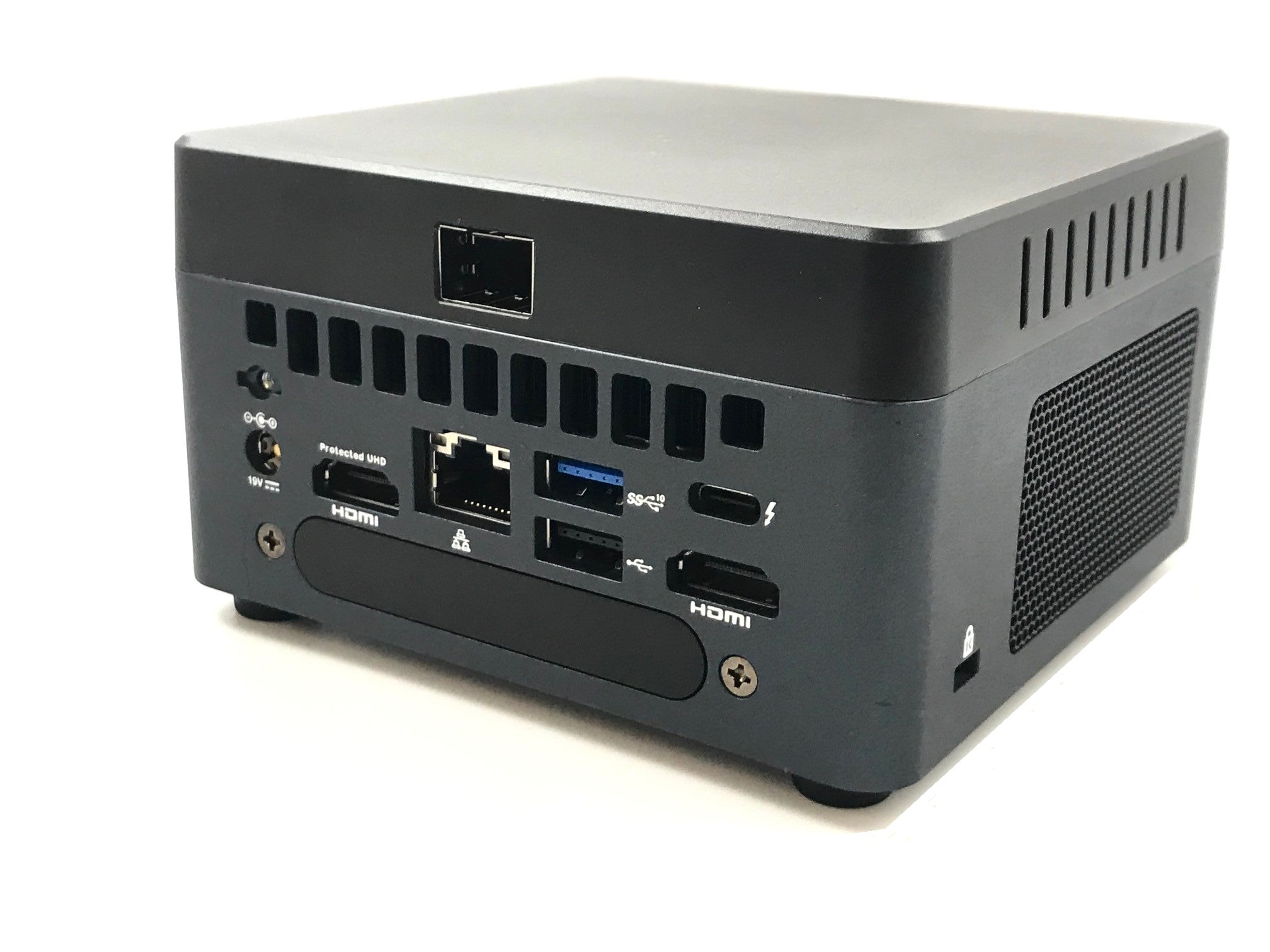

Intel NUC Gigabit SFP Fiber Ethernet LID

‌Intel NUC Gigabit SFP Fiber Ethernet LID

Description :

This is an Intel NUC Gigabit SFP Fiber Network LID that uses controller RTL8153 which its features higher bandwidth and improved protocols for data exchange between the host and the device. The RTL8153 supports IEEE802.3az-2010, also known as Energy Efficient Ethernet (EEE), and it is fully compliant with Microsoft NDIS5, NDIS6(IPv4,IPv6,TCP,UDP)checksum features ,and supports IEEE802 IP layer 2 priority encoding and IEEE802.1Q Virtual bridged Local Area network(VLAN).

Features :

Hardware

The Gigabit SFP Fiber Ethernet LID is Connected to the NUC MB via a cable connection to the USB 3.0 Internal 10 pin internal header

• Integrated 10/100/1000M transceiver

• Auto-Negotiation with Next Page capability

• Supports CDC-ECM

• Supports LPM (Link Power Management)

• Supports pair swap/polarity/skew correction

• Crossover Detection & Auto-Correction

• Supports Wake-On-LAN and ‘RealWoW!’ (Wake-On-WAN) Technology

• Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts

• XTAL-Less Wake-On-LAN

• Supports power down/link down power saving

• Transmit/Receive on-chip buffer support

• EEPROM Interface

• Embedded OTP memory can replace external EEPROM

• Built-in switching regulator and LDO regulator

• Supports Customizable LEDs

• Supports hardware CRC (Cyclic Redundancy Check) function

Software Offload :

Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation

Task-offload (Large send v1and Large send v2) support

Supports jumbo frame to 9K bytes

IEEE :

Supports Full Duplex flow control (IEEE 802.3x)

Fully compatible with IEEE 802.3 and IEEE 802.3u

PN # GR-LID-1969
