High Frequency RF/AM Radio Frequency Signal Generator 110V TSG-17 100kHz-150MHZ

Features:

• Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.



• Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.


• Output wave form: sine and amplitude modulation wave.



• RF/AM output：Min 100mv rms(up to 35Mhz unloaded.)



• Output control:1mV to 100m(measured from output terminal)


• External modulation signal can be set between 50Hz to 20 KHz.

• Specifications:



• Frequency ranges:A: 100 KHz to 300 KHz B: 300 KHz to 1MHz
  C: 1MHz to 3.2MHz

D: 3MHz to 10MHz
E: 10MHz to 35MHzF: 32MHz to 150MHz

• Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)



• Frequency accuracy: Over±10%



• Output waveform: RF/AM signal waveform



• Output impedance: 600Ω



• Radio frequency output: Over 100Mv rms (when frequency ?35MHz)



• Level control: 1mV to100mV



• External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.



• Norml operation: 50Hz to 20 KHz for any setting.



• Temperature/Humidity: 10 oC to 35 oC/with 85%RH


• Power supply: 110V+/-10%, 50Hz/60Hz


• Dimensions: 239*140*200mm



• Weight: about 2.5kg

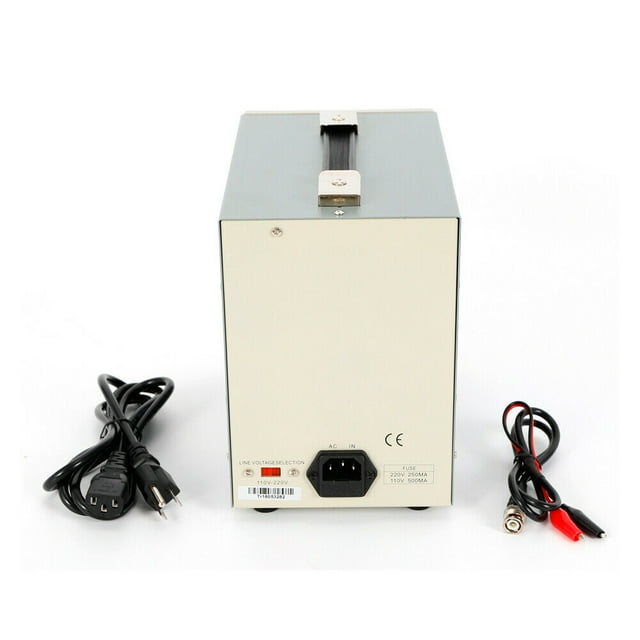

Package included:
- 1x 110V
- 1x Power Cord
- 1x Clip cable
- 1x Instruction manual
