Hero image 0 of Hard HighP|R1504 R, 0 of 4

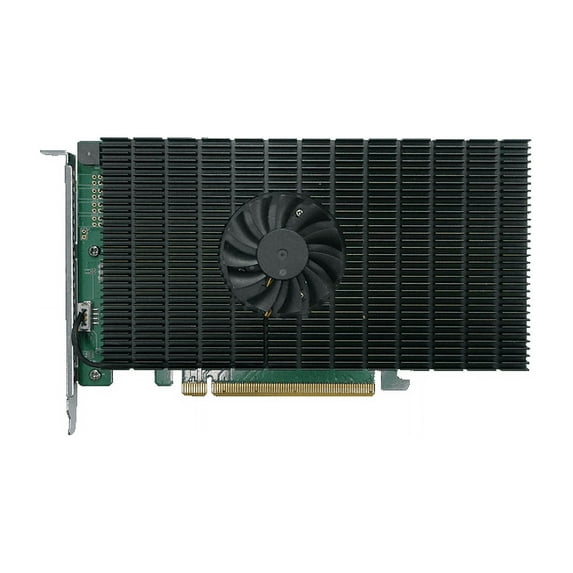

Hard HighP|R1504 R
(No ratings yet)
Key item features
- Bus Interface :PCI-Express 4.0 x16
- Number of Channel / Port :8x U.2 NVMe port (Dedicated Dual PCIe 4.0 x4 per port)
- Data Transfer Rate :16 GT/s
- Number of device : 8x U.2 NVMe SSD
- SSD Form Factor :2.5'' U.2
- Form Factor :Low-Profile
- Card Dimensions :6.50''W *2.27''H *0.80''D
- Card Weight :0.64 lbs.
- Supported Operating Systems
- Windows :Windows 11,10
- Windows Server 2022, 2019
- Microsoft Hyper-V
- Linux :Linux Kernel 3.10 or later
- macOS :n/a
- FreeBSD :FreeBSD 12.1 and later
Specs
BrandHighPoint
Dimensions13.20 x 7.50 x 2.70 Inches
Current price is USD$793.63
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
The Rocket 1500 Series were designed with simplicity in mind. All you need is a little patience and a screwdriver; just install the M.2 SSDs and plug in the card!
Key Features
• Fully compliant with Industry standard PCIe 3.0 Slots; no-Bifurcation dependency or need for specific brand/model of motherboards
• Integrated, Intelligent, Next-Gen PCIe 4.0 Switch controller chipset
• Native, in-box NVMe driver support for all major OS platforms
• Gen 4 Hyper Cooling Solution Product feature
Rocket 1504 Bus Interface
PCI-Express 4.0 x16 Number of Channel / Port
4x M.2 NVMe port (Dedicated PCIe 4.0 x4 per port) Data Transfer Rate
16 GT/s Number of device
4x M.2 NVMe SSD SSD Form Factor
2242/2260/2280/22110 (supports single and double sided) Form Factor
Full-Height Supported Operating Systems
Windows
Windows 11,10, Windows Server 2022, 2019, Microsoft Hyper-V
Linux
Linux Kernel 3.10 or later
macOS
macOS 10.13 to macOS ventura 13.x
ESXi
ESXi 6.7 and later
FreeBSD
FreeBSD 12.1 and later System Requirements
Mac Platforms:
- Apple Mac Pro Systems: 2012 and later Mac Pro systems, 5.1, 7.1 (2019) / Note: PCIe 4.0 required for maximum performance
- Intel and Apple M1 Platform compatible
- ThunderboltTM 3 Connectivity via ThunderboltTM Expansion chassis: RocketStor6661A PC Platforms:
- Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required). Note: PCIe 4.0 is required for maximum performance.
- ThunderboltTM 3 Connectivity (requires a PC platform with a Thunderbolt 3 port) and ThunderboltTM Expansion chassis: RocketStor6661A Cooling System
Full-Length Anodized Aluminum Heat sink with built-in Low-Noise fan Operating Environment
Work Temp
+5oC to + 55oC
Storage Temp
-20oC to +80oC Operating Voltage
PCI-e: 12V, 3.3V Power
Typical: 17.72W MTBF (Mean Time Before Failure)
920,585 Hours Certification / Approval
CE, FCC, RoHS, REACH, WEEE Kit Contents
1x R1504
1x Quick Installation GuideItem Dimension (L inchxW inchxH inch)
14 x 8 x 3
Weight
3.00 lb
Warranty Information
2 Years
Key Features
• Fully compliant with Industry standard PCIe 3.0 Slots; no-Bifurcation dependency or need for specific brand/model of motherboards
• Integrated, Intelligent, Next-Gen PCIe 4.0 Switch controller chipset
• Native, in-box NVMe driver support for all major OS platforms
• Gen 4 Hyper Cooling Solution Product feature
Rocket 1504 Bus Interface
PCI-Express 4.0 x16 Number of Channel / Port
4x M.2 NVMe port (Dedicated PCIe 4.0 x4 per port) Data Transfer Rate
16 GT/s Number of device
4x M.2 NVMe SSD SSD Form Factor
2242/2260/2280/22110 (supports single and double sided) Form Factor
Full-Height Supported Operating Systems
Windows
Windows 11,10, Windows Server 2022, 2019, Microsoft Hyper-V
Linux
Linux Kernel 3.10 or later
macOS
macOS 10.13 to macOS ventura 13.x
ESXi
ESXi 6.7 and later
FreeBSD
FreeBSD 12.1 and later System Requirements
Mac Platforms:
- Apple Mac Pro Systems: 2012 and later Mac Pro systems, 5.1, 7.1 (2019) / Note: PCIe 4.0 required for maximum performance
- Intel and Apple M1 Platform compatible
- ThunderboltTM 3 Connectivity via ThunderboltTM Expansion chassis: RocketStor6661A PC Platforms:
- Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required). Note: PCIe 4.0 is required for maximum performance.
- ThunderboltTM 3 Connectivity (requires a PC platform with a Thunderbolt 3 port) and ThunderboltTM Expansion chassis: RocketStor6661A Cooling System
Full-Length Anodized Aluminum Heat sink with built-in Low-Noise fan Operating Environment
Work Temp
+5oC to + 55oC
Storage Temp
-20oC to +80oC Operating Voltage
PCI-e: 12V, 3.3V Power
Typical: 17.72W MTBF (Mean Time Before Failure)
920,585 Hours Certification / Approval
CE, FCC, RoHS, REACH, WEEE Kit Contents
1x R1504
1x Quick Installation GuideItem Dimension (L inchxW inchxH inch)
14 x 8 x 3
Weight
3.00 lb
Warranty Information
2 Years
- Bus Interface :PCI-Express 4.0 x16
- Number of Channel / Port :8x U.2 NVMe port (Dedicated Dual PCIe 4.0 x4 per port)
- Data Transfer Rate :16 GT/s
- Number of device : 8x U.2 NVMe SSD
- SSD Form Factor :2.5'' U.2
- Form Factor :Low-Profile
- Card Dimensions :6.50''W *2.27''H *0.80''D
- Card Weight :0.64 lbs.
- Supported Operating Systems
- Windows :Windows 11,10
- Windows Server 2022, 2019
- Microsoft Hyper-V
- Linux :Linux Kernel 3.10 or later
- macOS :n/a
- FreeBSD :FreeBSD 12.1 and later
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
HighPoint
Dimensions
13.20 x 7.50 x 2.70 Inches
Warranty
Warranty information
Limited Warranty period (parts): 1095 days
Limited Warranty period (labor): 1095 days
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Check out these related products
Supermicro Add-on Card AOC-USAS-H8IR, LSISAS 1078 8 Port SAS RAID Controller - 256MB DDR2 - PCI Express - Up to 300MBps per Port $377.99
$37799current price $377.99Supermicro Add-on Card AOC-USAS-H8IR, LSISAS 1078 8 Port SAS RAID Controller - 256MB DDR2 - PCI Express - Up to 300MBps per Port
Supermicro AOC-SLG3-4E4T PCIe Add-On Card 12.8GB/s quad-Port Gen-3 NVMe Host Bus $247.99
$24799current price $247.99Supermicro AOC-SLG3-4E4T PCIe Add-On Card 12.8GB/s quad-Port Gen-3 NVMe Host Bus
Sonnet Solo10G 10GBASE-T 1-Port 10 Gigabit Ethernet PCI Express 3.0 Adapter Card, Thunderbolt Compatible $109.99
$10999current price $109.99Sonnet Solo10G 10GBASE-T 1-Port 10 Gigabit Ethernet PCI Express 3.0 Adapter Card, Thunderbolt Compatible
HighPoint SSD7505 PCIe 4.0 x16 4-Channel M.2 NVMe RAID Controller $805.08
$80508current price $805.08HighPoint SSD7505 PCIe 4.0 x16 4-Channel M.2 NVMe RAID Controller
ZPAQI PCIE to RS232 Serial DB9 DB25Com Adapter Card for Smart WCH382L Chip 6Gb/s $51.24 Was $66.45
$5124current price $51.24, Was $66.45$66.45ZPAQI PCIE to RS232 Serial DB9 DB25Com Adapter Card for Smart WCH382L Chip 6Gb/s

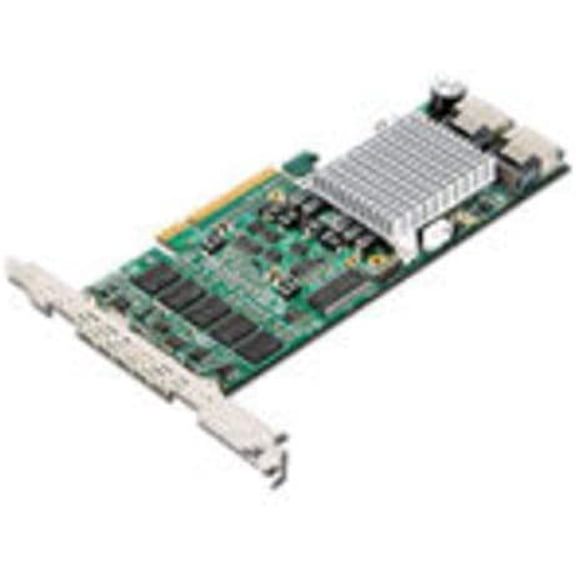

Supermicro AOC-USASLP-H8IR $488.18
