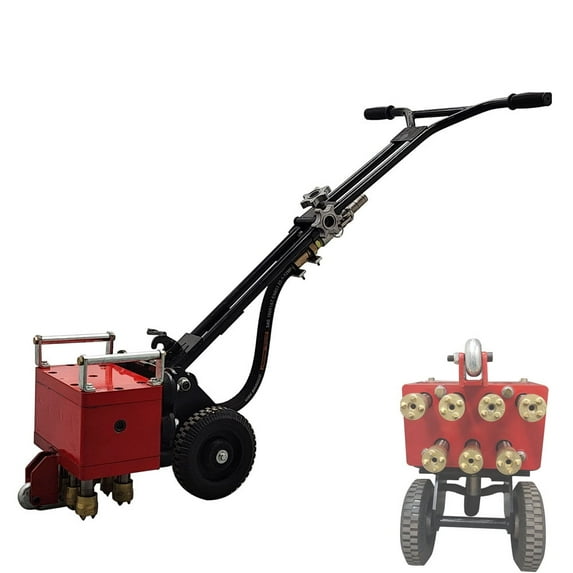

Hand-pushed Concrete Pavement Scabler Grinder 7 Head Pneumatic Concrete Floor Grinder

Product Overview:
The chiseling machine is mainly used to treat the surface of concrete to improve the bonding strength and surface roughness of concrete structures, thereby enhancing the durability and safety of concrete structures.

Product Parameters:
1. Power: Pneumatic
2. Head: 7
3. Size: 29*49*127cm
4. Working width: 29cm
5. Air consumption: 1600L/ min
6. Noise level DB: 97 dB
7. Average equivalent of vibration level: 4.96㎡/ s
8. Air compressor matching requirements: the pressure is 7 kg square centimeter, the displacement is 3m3/ min

NOTE:
Customers need to bring their own air compressor to ensure that the air pressure is 0.63Mpa.

Attention
1.Do not press the chisel hard against the concrete surface. After starting, pull the handle back and forth. Otherwise, the machine will be damaged.
2.The faster the speed is, the smaller the depth is. The more slowly you move, the deeper the drill is. 3.The chiseling depth of each operation can be 1-3cm, you need to chisel the concrete for 3-4 times on the same plane if you need the depth of 10cm.
4.First, an air compressor with a displacement of 3 cubic meters per minute and a pressure level of 7 kilograms per square centimeter is matched. The air pressure can be adjusted to 7 kilograms of pressure to do normal work.
5.The length of the air duct should be less than 10m, and if it is extended to 15m, the pressure will drop by 0.16kg/㎡ 6.Recommended air duct specification: 25/32 "fiber reinforced PVC hose.
7.Do not use the gouging machine,and store the grinder indoors. Place it on the clean and dry level surface. Cover it with canvas.Prevent water and dust from entering the machine to cause rust and wear. To avoid failure.
8.Please take protective measures when using the machine.For example, the operators wear goggles, face masks, overalls, etc.

Item Included: 220565
Concrete Scabler Grinder Scarifier
