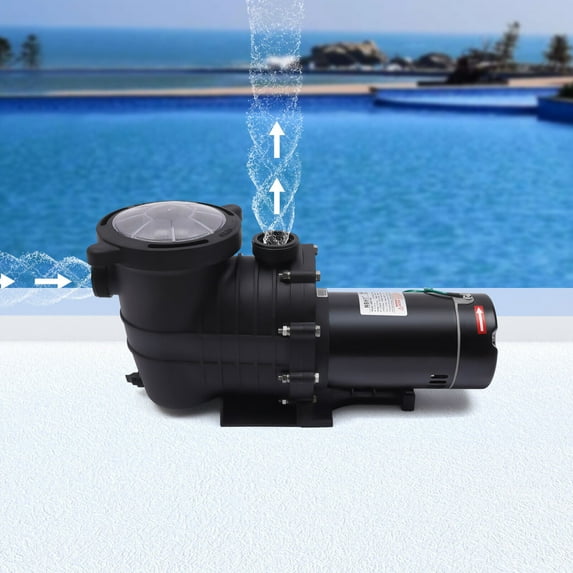

HBP1100 Electric Pool Pump For Hot Tubs 1.5HP Swimming Pool Pump Filter Basket Pool Pump

Description
The 1.5HP swimming pool pump is a reliable pool tool that allows you to swim comfortably in the summer without worrying about the water quality and you can relax and enjoy the refreshing pool water. With a reinforced PP shell and copper motor that offers high-performance suction power and optimal flow, it can efficiently filter the circulating water and is suitable for various swimming pools, hot tubs, and spas, bringing you a pleasing swimming experience.

Specification
Pump Model: HBP1100
Motor Model: HT-13
Color: Black
Material: Iron, PP
Processes: Injection Molding, Electroplating
Style: Modern
Power Source: Corded Electric
Plug: US Standard
Motor Type: Single-speed Pure Copper Motor
Noise: ＜75dB
Voltage: 110-120V, 60Hz
Power: 1100W, 1.5HP
Current: 9.1A
Flow: 350-180L/min, 92.46-47.5GPM
Maximum Flow: 380L/min, 100.4GPM
Head: 5-10m/16.4-32.8ft
Maximum Head: 12.5m/41ft
Rotation Speed: 3450r/min
CAP: 124-148μF
I.CL.: 155(F)
Protection Grade: IP X5
Insulation Class: F Class
Max. Temperature: 50℃/122℉
Inner Coupling: 1/2" NPT
Connector Diameter: 48.5mm/2inch
Cord Length: 95cm/37.4inch
Net Weight: 13kg/28.66 lbs
Gross Weight: 13.3kg/29.3 lbs
Package Size: 62*24*35cm/24*9.45*13inch

Package Included
1* Pool Pump
1* English Manual
Other Accessories for Assembly

Details
Filter Basket with Clear Cover: The extra-large filter basket allows for easy leaf/debris/hair/lint removal, ensures free flow, and extends the time between cleanings. Its removable design allows for easy cleaning. And the lockable clear cover helps determine if the basket needs to be cleaned and ensures safe closing.
O-shaped Sealing Ring: The heat-resistant O-shaped sealing ring between the filter basket and the filter pipe can effectively strengthen the sealing of the filter port and avoid water leakage during operation.
Drain Plug: You just need to open the cap of the drain plug at the bottom to easily drain water, which can avoid water accumulation in winter, facilitate pump maintenance, and prevent it from affecting normal operation.

Application
It is mainly used for in/above-ground pools, hot tubs, and spas in all types and sizes. It is also widely suitable for water circulation in hotels, restaurants, aquaculture, hydro massage baths, spas, jets, rinses, and other filtration systems, and also does water circulation and filtration in water treatment facilities and decorative pools and other circulation systems.

Notes
This pump is for use with permanently installed pools only. Please do not use it with storable pools.
Please fill the pump with water before use to prevent the motor from overheating and avoid damage to mechanical seals and impellers.
This pump can only be installed and repaired by qualified professionals. All wiring must be carried out by licensed electricians to ensure compliance with all state and local regulations.
To reduce the risk of electric shock, please install it at least 10ft from the inside walls of a pool and do not use an extension cord to connect the unit to the electric supply. Please connect it to a grounding-type receptacle protected by a ground-fault circuit interrupter (GFCI).
For the safety of your device, please do not cut the power cord without authorization during use, and it's advised to protect electrical components from the weather.
