Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump
Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump
Hero image 0 of Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump, 0 of 5
Grundfos

Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump

(No ratings yet)

Key item features

  • Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump

  • SQ innovative motor technology
    SQ pumps feature an innovative motor design incorporating permanent-magnet technology. By combining permanent-magnet motors and a Grundfos micro-frequency converter, we are able to deliver unmatched performance and the ability to control and communicate with the pump in ways never before possible.

    SQ pump models operate at a constant speed much like today’s conventional pumps. The difference is that SQ delivers the benefits of an electronically controlled permanent-magnet motor that cannot be achieved with a conventional induction motor.

    SQ pumps are available for single-phase power; a simple 2-wire design makes installation easy.

    High pump efficiency
    The hydraulic pump components are polyamide reinforced with 30 % glass fiber. The hydraulic design provides for high pump efficiency resulting in low energy consumption and therefore low energy costs.

    High motor efficiency
    The motors are based on a permanent magnet rotor (PM motor) featuring high efficiency within a wide load range.

  • Wear resistance
    The pump design features "floating" impellers (not fastened to the shaft). Each impeller has its own tungsten carbide/ceramic bearing. The construction and materials ensure high wear resistance to sand for long product life.

    Protection against upthrust
    Starting up a pump with a very low counter pressure involves the risk of the entire impeller stack being lifted, also called upthrust. Upthrust may cause breakdown of both pump and motor.
    SQ motors are fitted with a top bearing protecting both pump and motor against upthrust, thus preventing breakdown during the critical start-up phase.

    Excellent starting capabilities
    The integrated electronic unit of the motor features soft starting. Soft start reduces the starting current and thus gives the pump a smooth and steady acceleration.
    The soft starter minimizes the risk of wear on the pump and prevents overloading of the mains during start-up.
    The excellent starting capabilities are a result of the high locked-rotor torque of the permanent magnet motor together with the few pump stages. The high starting reliability also applies in case of low voltage supply.
  • Overvoltage and undervoltage protection
    Overvoltage and undervoltage may occur in case of unstable voltage supply.
    The integrated protection of all motors prevents damage to the motor in case the voltage moves outside the permissible voltage range.
    The pump will cut out if the voltage falls below 150 V or rises above 315 V. The motor is automatically cut in again when the voltage again falls within the permissible voltage range. Therefore no extra protection relay is needed.

    Overload protection
    Exposure of the pump to heavy load causes the current consumption to rise. The motor will automatically compensate for this by reducing the speed to 3000 rpm.  Further overload will lead to stop.
    If the rotor is being prevented from rotating, this will automatically be detected and the power supply will be cut out. Consequently, no extra motor protection is needed.

    Overtemperature protection
    A permanent magnet motor gives off very little heat to its surroundings. In combination with an efficient internal circulation system leading the heat away from the rotor, stator and bearings, this ensures optimum operating conditions for the motor.
    As an extra protection, the electronic unit has a built-in temperature sensor. When the temperature rises too high, the motor is cut out; when the temperature has dropped, the motor is automatically cut in again.
Current price is $2,490.00
Price when purchased online
  • Free shipping
  • Free 30-day returns
Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

How do you want your item?

How do you want your item?
Columbus, 43215
Arrives between Feb 13 - Feb 19
|
Sold and shipped by Aqua Science
4.75 stars out of 5, based on 4 seller reviews(4.8)
Report an issue with this seller
Free 30-day returns

About this item

Product details

Specifications

Warranty

Compare with similar items

Comparison Overview:
Product

Viewing this item

Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump
Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump
current price $2,490.00
Grundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump

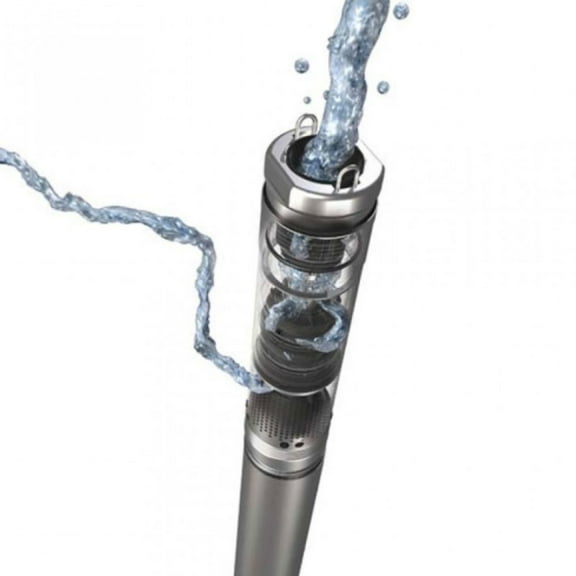

Grundfos 96160158 22 Sq15220 3" Multistage, Submersible Pump
Grundfos 96160158 22 Sq15220 3" Multistage, Submersible Pump
current price $1,686.00
Grundfos 96160158 22 Sq15220 3" Multistage, Submersible Pump

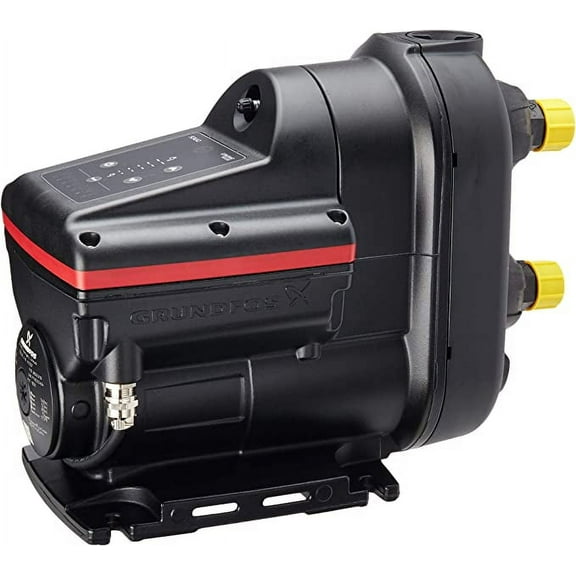

Grundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115v
Grundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115v
current price $990.23
Grundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115v
4.2 out of 5 Stars. 10 reviews
GrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
GrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
current price $2,550.00
GrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
Comparison Chart:
Gallons per minute5 GPMGrundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump22 GPMGrundfos 96160158 22 Sq15220 3" Multistage, Submersible Pump11.4 GPMGrundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115v814 GPMGrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
Horsepower1 HPGrundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump2.48 HPGrundfos 96160158 22 Sq15220 3" Multistage, Submersible Pump1.0 HPGrundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115v1 HPGrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
Plumbing pump typeSubmersible Well PumpGrundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well PumpSubmersible PumpGrundfos 96160158 22 Sq15220 3" Multistage, Submersible PumpPressure Booster PumpGrundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115vBooster PumpGrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
Volts230 VGrundfos 5SQ10-410-230V, 5GPM, 1HP, 230V, 2 Wire, 96160137, 3" Stainless Steel Submersible Well Pump230 VGrundfos 96160158 22 Sq15220 3" Multistage, Submersible Pump115 VGrundfos SCALA2 3-45 98562818 Water Pressure Booster Pump 115v115 VGrundfosTSW T66 1HP, 2.4 Amps, 230 Volts Steel Black Petrol Water Transfer Pump, 814 GPM
