High-Current Solid-State Relay 35Ax4, Black

Name: High-Current Solid-State Relay 35Ax4, Black
Brand: BCCX
SKU: 670799045
Price: 222.95 USD
Availability: InStock
Rating: 5 (3 reviews)

5 stars out of 3 reviews

(5.0)|

3 ratings

Key item features

Robust Power: Operates with a 7-Volt to 20-Volt supply, providing a combined continuous current rating of 140 amps across four independent channels.
High Current: Each channel delivers 35 Amps continuous or 100 Amps for 8 seconds, with channels capable of parallel operation for higher current needs.
Simplified Wiring: Replaces four standard relays, offering a clean installation with minimal wiring and single-wire activation via power or ground.
Advanced Protection: Features integrated over-temperature, short circuit, and overload protection for enhanced safety and reliability.
Diagnostic Feedback: Includes diagnostic LEDs and status indicators for easy monitoring of operational status.
PWM Capability: Supports Pulse Width Modulation (PWM) with a maximum frequency of 150 hertz and a duty cycle range of 50% to 90%.
Versatile Mounting: Designed with multiple mounting options to suit various installation requirements.

Generated by AI

Specs

Amps
35 Amps
Input voltage
7 V
Electrical system relay type
Solid State
Brand
BCCX
Accessories
mounting hardware
Features
Adjustable

Current price is $222.95

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

I want delivery savings with

Try 30 days of Free Shipping with Walmart+! Choose plan at checkout.

How do you want your item?

Columbus, 43215

Arrives by Tomorrow

Order within 9 hr 21 min

Sold and shipped by Walmart.com

Free 90-day returns

This item is gift eligible

More seller options (14)

Starting from $222.95

Get free delivery, shipping and more*

*Restrictions apply

Try Walmart+ now

Compare with similar items

Comparison Overview:

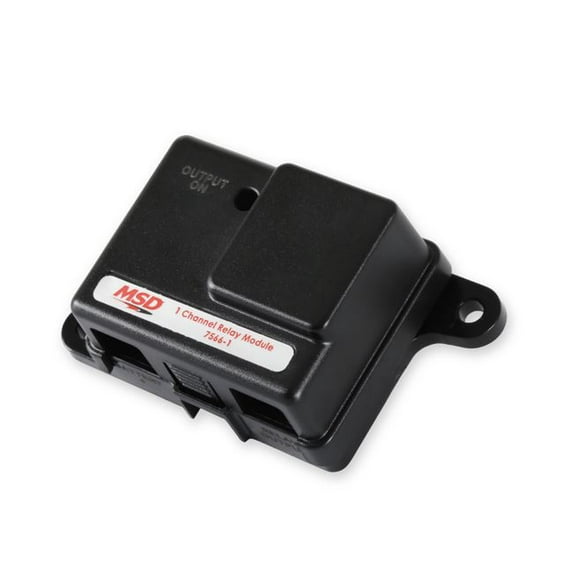

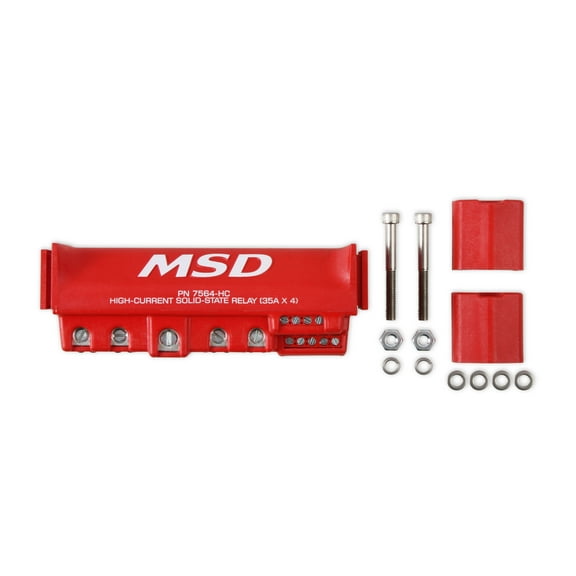

Product	Viewing this item High-Current Solid-State Relay 35Ax4, Black current price $222.95 High-Current Solid-State Relay 35Ax4, Black 5 out of 5 Stars. 3 reviews	MSD 7566-1 Single Channel Relay Module current price $58.95 MSD 7566-1 Single Channel Relay Module	MSD 7564-HC Solid State Relay, 35AX4, Red current price Now $222.95, Was $245.95 MSD 7564-HC Solid State Relay, 35AX4, Red	MSD 7564 Multi Purpose Relay Kit current price $204.95 MSD 7564 Multi Purpose Relay Kit 5 out of 5 Stars. 3 reviews	Hella 007794041 Micro Plug Relay current price $7.94 Hella 007794041 Micro Plug Relay	Hella 933332601 Relays current price $11.71 Hella 933332601 Relays

Comparison Chart:
Amps	35 AmpsHigh-Current Solid-State Relay 35Ax4, Black	40 AmpsMSD 7566-1 Single Channel Relay Module	35 AmpsMSD 7564-HC Solid State Relay, 35AX4, Red	50 AmpsMSD 7564 Multi Purpose Relay Kit	20 AmpsHella 007794041 Micro Plug Relay	40 AmpsHella 933332601 Relays
Input voltage	7 VHigh-Current Solid-State Relay 35Ax4, Black	7 VMSD 7566-1 Single Channel Relay Module	20 VMSD 7564-HC Solid State Relay, 35AX4, Red	-MSD 7564 Multi Purpose Relay Kit	12 VHella 007794041 Micro Plug Relay	12 VHella 933332601 Relays
Electrical system relay type	Solid StateHigh-Current Solid-State Relay 35Ax4, Black	AutomotiveMSD 7566-1 Single Channel Relay Module	Solid StateMSD 7564-HC Solid State Relay, 35AX4, Red	Solid StateMSD 7564 Multi Purpose Relay Kit	5-PinHella 007794041 Micro Plug Relay	5-PinHella 933332601 Relays
Features	AdjustableHigh-Current Solid-State Relay 35Ax4, Black	RemovableMSD 7566-1 Single Channel Relay Module	AdjustableMSD 7564-HC Solid State Relay, 35AX4, Red	AdjustableMSD 7564 Multi Purpose Relay Kit	DurableHella 007794041 Micro Plug Relay	-Hella 933332601 Relays

Now hiding additional rows in the Table

About this item

Product details

Clean up your wiring with an MSD Solid-State High Current Relay Block. This high current module takes the place of 4 standard relays and eliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channel is capable of handling up to 35 Amps of continuous current, providing up to 140 Amps of power. It also has the capability of Pulse Width Modulation (PWM). With a PWM input, you can control the output at a rate of 15 hertz and a duty cycle of 50-90%. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.

Operates from 7-Volts to 20-Volt supply
4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
Combined total continuous current rating of 140 amps
Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
Clean, easy install with minimum wiring
Over-temp, short circuit and overload protection
Diagnostic LED’s and status indicators
Multiple mounting options
Single wire activation by switching power or ground
Available in Red or Black
A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.
-
-
-
-
-
-

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Amps

35 Amps

Input voltage

7 V

Electrical system relay type

Solid State

Brand

BCCX

Warranty

Warranty information

Manufacturers Limited 1 Year Warranty

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.

Warranty url

https://www.nosoemparts.com/pages/returns

Warnings

Warning Text

California Proposition 65
