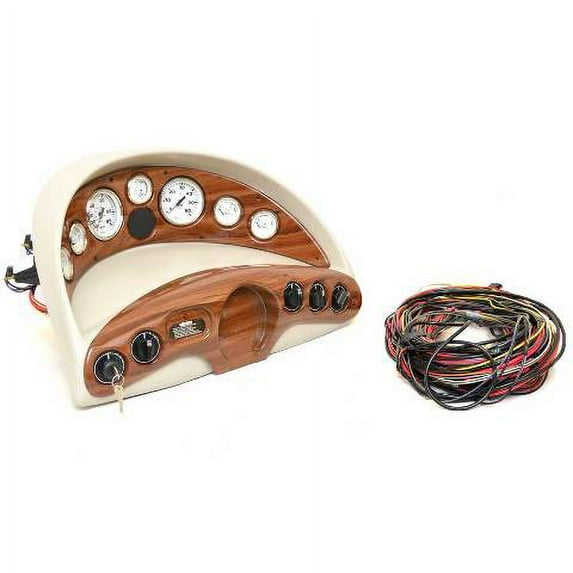

Glastron Boat Dash Panel 025-4438 | 209 GT Mercury Inboard Off-White

Boat part number 8202464 is a new OEM dash panel for a 209 GT model from Glastron Boats, part number 025-4438 . Year unavailable.

This dash panel is constructed out of off-white textured marine grade plastic with woodgrain inserts. Measures approximately 24" L x 13 1/8" H x 14 5/8" D overall. The pre-installed harness assembly hosts (1) fuse box, (1) 12-Pin female, (1) 2-Pin female, (1) 7-Pin male, (2) Spade female, and (4) female wire lead connections. Included is a harness that hosts (1) 7-Pin female, (1) 3-Pin female, (1) 12-Pin male, (1) 6-Pin female, (1) 2-Pin male, and (6) Spade female connections.

This dash panel features (7) Faria gauges from the Euro White SS series. Each of these halogen clear illuminated gauges feature a silver bezel, domed lens, white face, black lettering, numerals and accents, and black needles.
This panel features the following gauges:

• (1) 65 MPH Speedometer | SEK622A | (2) single spade and (1) pitot
• (1) 6000 RPM Tachometer| TCC027A | (1) 6-Pin male connectors | Set up for 4/6/8 Cylinder and 12 Pulse engines | (2) 6 pin deutsch
• (1) Trim Gauge | GPC605B | Set up for Mercury Engines | (1) 4 pin deutsch
• (1) Temperature Gauge | GPC606E | (1) 4 pin deutsch
• (1) Oil Gauge | GPC607E | (1) 4 pin deutsch
• (1) Volt Gauge | VPC603B | (1) 4 pin deutsch
• (1) Fuel Gauge | GPC608E | (1) 4 pin deutsch

This panel also includes the following pre-installed black rotary switches:

• (1) Push Button "HORN"
• (1) 3-Position ignition with (2) keys
• (1) 1-Position "BLOWER"
• (1) 2-Position "ANCHOR/ NAV"
• (1) 3-Position "LIGHTS / PANEL / INT. / BOTH"
• (1) 3-Position "BILGE / ACC / BOTH"

Sold as a single.

Specifications

• Boat Manufacturer: Glastron Boats
• Model: 209 GT
• Year: Unavailable
• Part Number: 025-4438
• Material: Marine Grade Plastic
• Color: Off-White / Woodgrain (Inserts)
• Finish: Textured
• Overall Dimensions: 24" L x 13 1/8" H x 14 5/8" D
• Connections: Pin Male and Female and Wire Leads
• Set up for 4/6/8 Cylinder and 12 Pulse Engines
• Set up for Mercury Engines

Sold as seen in pictures. Customers please note every computer shows colors differently.
All measurements are approximate. Hardware and instruction / installation manual not included.
