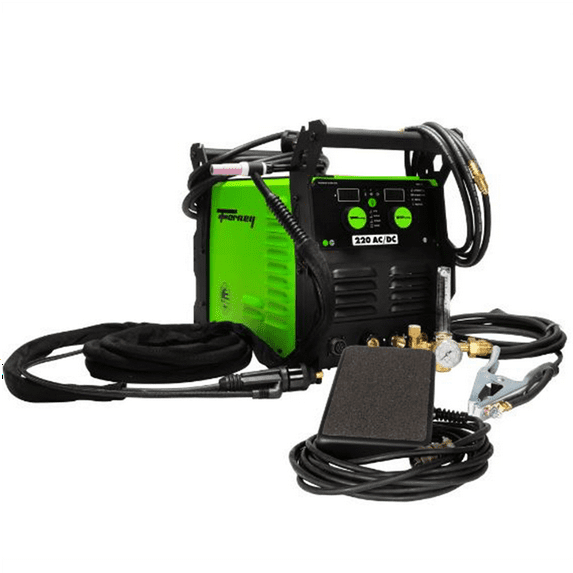

Forney Industries 420 220 AC/DC Welder (Stick/TIG)

Features and Benefits:

• AC/DC TIG welder
• Features 120V/240V input power and 220 AMPs of welding power
• Processes SMAW (Stick), GTAW- DC (TIG) and GTAW- AC (TIG)
• Tig Output Power: 120V: 25% @ 120 AMP (AC)
• Tig Output Power: 120V: 25% @ 130 AMP (DC)
• Tig Output Power: 240V: 35% @ 220 AMP
• Stick Output Power: 120V: 40% @ 85 AMP
• Stick Output Power: 240V: 35% @ 200 AMP
• Input Power: 120V @ 24.8 AMP
• Input Power: 240V@ 32 AMP
• Welding Capacity: Up to 1/2 inch
• Stick WIRE/ELECTRODE DIAMETERS: 1/16 inch (1.6 mm) to 5/32 inch (4.0 mm)
• Tig WIRE/ELECTRODE DIAMETERS: 040 inch (1.02 mm) to 1/8 inch (3.2 mm)
• Stable Arc at 5 AMPs
• Pulse Welding
• High Frequency Starts
• Ability to Turn Off High Frequency
• TIG Torch/Foot Pedal Combination
• Dual-Voltage
• Digital Gauges
• INCLUDED ACCESSORIES:12.5ft (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck12.5ft (3.81 m) 7 Pin Foot Pedal15ft (4.57 m) Ground Clamp with Cable15ft (4.57 m) Electrode Holder with Cable15ft (4.57 m) Input Power CableFlowmeter with Hose
• RECOMMENDED ACCESSORIES AND CONSUMABLES:ITEM# 85660 - 150 AMP 17F Amptrol TIG Torch 12.5ft
• FOR USE ON: Solid Steel, Cast Iron/Steel, Stainless Steel and Aluminum
• Unit Weight of Welder Out of Display Box: 54 lbs. (24.54 kg)
• Unit Dimensions of Welder Out of Display Box:H: 15.5" (393.7 mm), L: 23.25" (263.53 mm), W: 10.375" (590.55 mm)



The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/240V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What?s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze! Unit Weight of Welder Out of Display Box:* 54 lbs. (24.54 kg) Unit Dimensions of Welder Out of Display Box:* H: 15.5" (393.7 mm) * L: 23.25" (263.53 mm) * W: 10.375" (590.55 mm) For Use On: * Solid Steel * Cast Iron/Steel * Stainless Steel * Aluminum
