Eastwood MIG 90 Amp Welder for Steel Up to 1/8", 14.52 lbs

Eastwood's MIG 90 Welder
A true 90 Amp MIG Welder at an incredible to get started in this hobby! Beware of other units that are billed as MIG but are truly Flux Core welders that will not provide the quality and ease of use you need for welding, especially thin metal. This machine is designed for the enthusiast who wants to get started in this hobby, learn to weld and start fabricating great projects. The best part is that this machine is READY TO WELD out of the box with an included gas regulator, hose and spool of wire

Since the Eastwood MIG 90 can weld steel up to 1/8", not only is it great for light metal fab, but it's also capable of most projects on an auto restoration. Because it can also be used as a flux core welder, you can weld without a gas bottle, which makes the unit more portable.

Specifications
Recommended Breaker Size: 20 amp
Minimum Breaker Size: 15 amp
Input Voltage: 1 Phase, 120VAC, 50/60 Hz
Power Cord Receptacle Plug: NEMA 5-15P
Max Voltage at No Load: 56 V DC
Rated Duty Cycle: 25% @ 90 Amps60% @ 65 Amps and 100% @ 50 Amps
Torch Consumables: Tweco style nozzle and contact tips
Wire Feed Rate (IPM/Inches Per Minute): 80 - 278 IPM
Wire Sizes: 0.023"(0.6mm) - 0.030"(0.9mm) MIG wire or 0.030" Flux Cored wire
Welding Wire Spool: 4" Spool
Maximum Welding Thickness - Steel: 1/8"
Output Current Range: 120V: 30 - 90 Amps
Weight: 14.52 lbs (11 kg)
Overall Dimensions: 10.75" X 5.50" X 10.75"

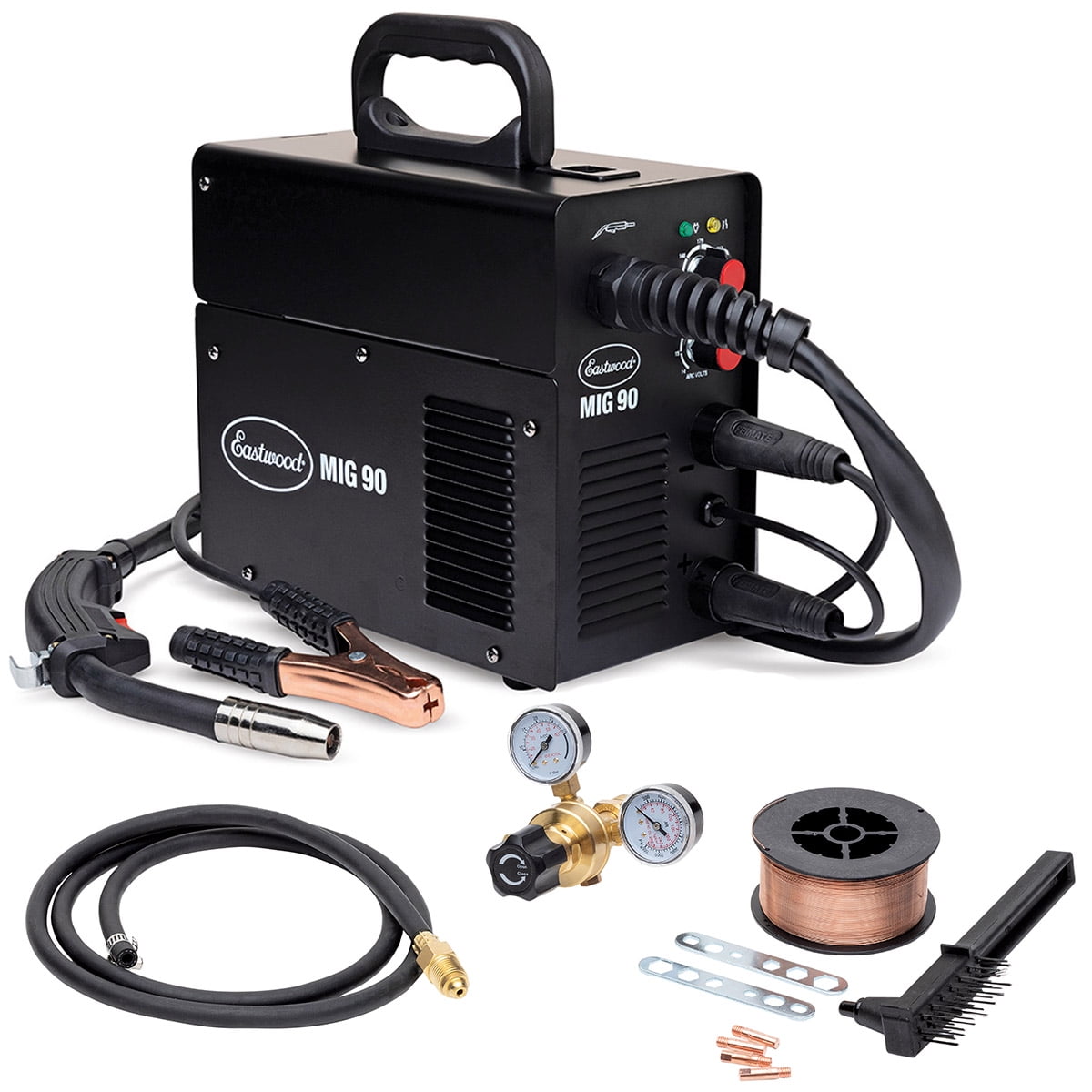

Contents
MIG 90 Welder
MIG Wire Spool 0.023 (0.7mm), 4 inch (2 lbs)
Gas Regulator with hose
8' Cable and Ground Clamp
MIG Torch, Nozzle, 0.023" (0.7mm) Contact Tip and 8' Cable
Face shield with lens and handle
Welding brush/hammer
Contact tip wrench
Instruction Manual
