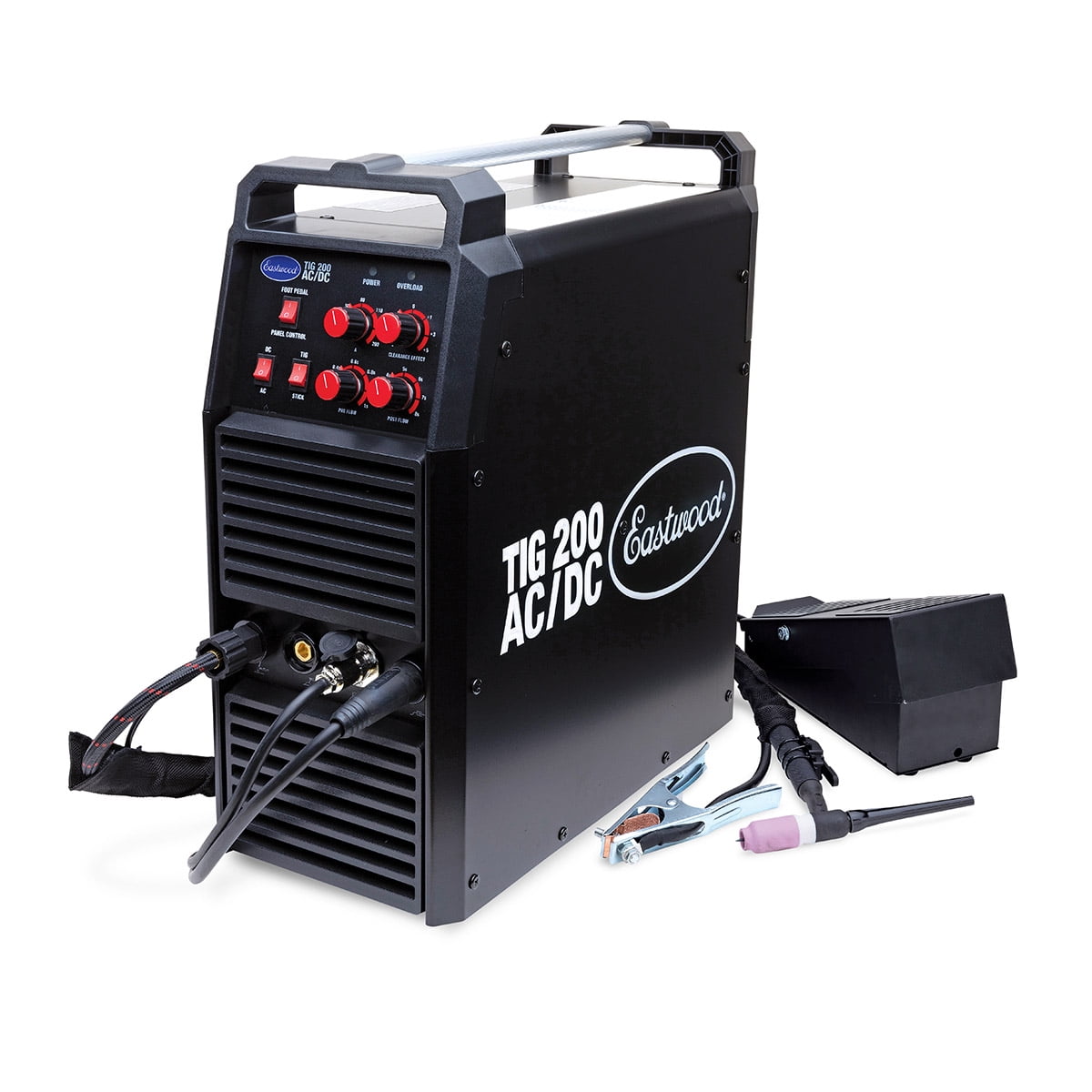

Eastwood 200 Amp AC/DC TIG Welder for Steel and Aluminum

This new and improved unit features updated technology and hundreds of dollars of improvements not found on other machines. The exact MUST-HAVE features you need to stack dimes from the start.

All of these improvements are designed to help you lay down the best TIG welds possible from a machine that weighs less than 40 lbs. Don't put yourself in a hole with lesser units that fail to provide these components because a few months after the purchase when you're frustrated with the quality, you will spend hundreds of extra dollars buying a rocker style foot pedal, gas lens kit, flex head torch and a flowmeter.

With its updated versatile design, powerful welding capabilities and guaranteed quality, this may be the last TIG you own. It comes with a Flex Head WP17 style torch that uses common consumables and allows you to get into tighter spots. The included 240V/120V adapter cord simplifies the process of switching between voltage. The 60% duty cycle keeps you welding until the job is finished. Order now and weld with confidence thanks to our 100 percent customer satisfaction guarantee.

Specifications

Input Voltage: Single-Phase 120vAC or 240vAC @ 50-60Hz
Power Cord Receptacle Plug: NEMA 6-50P
Input Current TIG: 240v: 23.8 amps | 120v: 20.0 amps
Input Current Stick: 240v: 36.2 amps | 120v: 19.2 amps
Output Current Adjustment TIG: 240v: 10-190 amps |. 120v: 10-145 amps
Output Current Adjustment Stick: 240v: 10-185 amps |. 120v: 10-140 amps
Input Voltage TIG: 240v: 10.4v – 17.6v | 120v: 10.4v – 15.8v
Input Voltage Stick: 240v: 20.4v – 27.4v | 120v: 20.4v – 25.6v
Starting Method: High Frequency
TIG Welding AC Duty Cycle (%): 240v 60% at 190 amps and 100% at 143 amps | 120v 60% at 100 amps and 100% at 77 amps
STICK Welding Duty Cycle (%): 240v 60% at 185 amps and 100% at 143 amps | 120v 60% at 60 amps and 100% at 46 amps
Post Gas Flow: 2-8 sec.
Pre Gas Flow: 0.1-1.0 sec.
Remote Foot Pedal And Control: Yes
Torch Control: Finger on/off control/Variable foot pedal
Cooling Method: Fan
Overall Dimensions: 17.8” x 8.4” x 20.20”
Weight: 38 lbs.
Warranty: 3 Years

Contents

(1) TIG 200 AC/DC Welder with NEMA6-50P Plug
(1) Shielding Gas Flow Meter / Regulator
(1) Shielding Gas Hose (4.6’)
(1) Ground Cable with Clamp (9.5’)
(1) Flex Head TIG Torch (17 Series) which accepts industry standard cups, collets and collet bodies (12' Torch Cable)
(1) Rocker Style Foot Pedal for Amperage Control (16’ Cable)
(1) 110-120 VAC to 220-240 VAC Adapter Plug
(1) Instruction Manual
(1) #8 Gas Lens
(1) Long Back Cap
(1) 3/32” Collet Body (Installed)
(1) 3/32” Collet (Installed)
(1) 3/32” x 6” Red Thoriated Tungsten
(1) 3/32” x 6” Green Pure Tungsten
