EQCOTWEA 500N Spring Tensile Compression Testing Machine Spring Table with Printing

(No ratings yet)

Key item features

The tensile compression machine can be applied to the testing of working load of extension and compression springs under certain working length.
The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate. 99 sets of test data can be stored; the user can directly look over, store and delete data in the machine.
The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value.
Spring extension tester, liquid crystal display (English), better Human Machine Interface (HMI), high precision resolution.Extension and compression universal tensile testing machine, there are N, KG, LB three kinds of measurement units to choose from.
Spring pressure test bench using Modbus - RTU standard protocol, using USB interface to better connect with configuration PLC.

Specs

Brand
EQCOTWEA
Dimensions
11.80 x 8.70 x 22.80 Inches
Weight
44 lb
Model
056251

Current price is Now $689.00

You save $60.00

was $749.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jul 11 - Jul 16

Sold and shipped by Prospersumai Co.Ltd

4.714285714285714 stars out of 5, based on 28 seller reviews(4.7)

Free 30-day returns

About this item

Product details

INTRODUCTION:

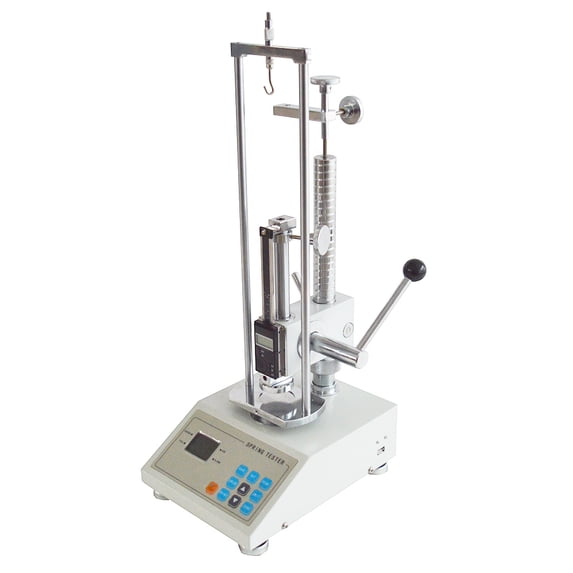

EQCOTWEA Spring Pull Testing Machine is a special instrument for testing the deformation and load relationship characteristics of tensile and compression spring. It is suitable for tensile and compression spring under a certain working length of the workload test, can also be used for rubber and other elastic components of the elastic load test.
This type with printing spring pull pressure testing machine using advanced high integration of integrated microcontroller and Chinese liquid crystal display, the appearance of the metal shell, greatly improve the anti-interference ability of the system.

PARAMETERS:
Model: ETH- 500
Power Supply: AC110-220V 50HZ/60HZ
Maximum testing load: 500N/50kg(110.2lbs)
Minimum resolution: 0.01N
Diameter of the platen: 1.9inch/48mm
Maximum free length of measurable spring: 5.9inch/150mm
Length of travel of the displacement scale: 3.5inch/90mm
Division value of the displacement scale: 0.01mm
Indication error: ±1%
Power capability (without printer): 13W
Power capability (with printer): 20W
Working temperature: 20±10℃
Temperature of storage and transportation: -27℃～+70℃
Relative temperature: 15%～80%RH
Product size: 8.7*11.8*22.8inch/22*30*58cm
Gross weight: 52.9lb/24kg

ITEMS INCLUDED:
EQCOTWEA Spring Pull Pressure Testing Machine *1
USB cable * 1
The power cord * 1
Wrench * 2

The tensile compression machine can be applied to the testing of working load of extension and compression springs under certain working length.
The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate. 99 sets of test data can be stored; the user can directly look over, store and delete data in the machine.
The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value.
Spring extension tester, liquid crystal display (English), better Human Machine Interface (HMI), high precision resolution.Extension and compression universal tensile testing machine, there are N, KG, LB three kinds of measurement units to choose from.
Spring pressure test bench using Modbus - RTU standard protocol, using USB interface to better connect with configuration PLC.
