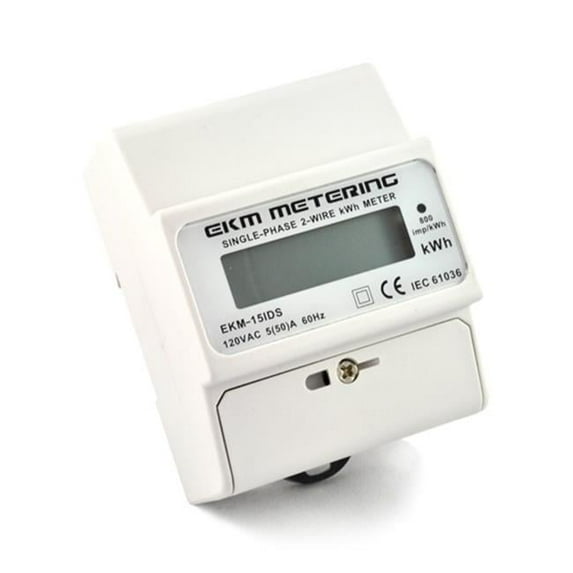

EKM 50A, 120V, 2-Wire Electric kWh Meter - 60 Hz

Our EKM-15IDS is a revenue grade kWh submeter. It is great for metering any 120 volt load to a high accuracy required for billing purposes or just for tracking usage. This meter provides an excellent value if you are looking for a simple, read-off-the-face meter. Very reliable and easy to install. This is the 120 volt version of our EKM-25IDS which is a 120/240 volt 3-wire meter.

Compact, very easy to install design. Simple DIN-rail mounts. Wires pass through 3/8" diameter tubes in the meter body will accept some No.2AWG insulated wire. The only electrical connection is made by 2 small screws which penetrate the wire insulation and pick up power for the meter and give the meter it's voltage reference. This meter draws less than 1 watt.

• State-of-the-art, fully solid-state kWh meter with 800 pulses per kWh pulse output
• Accurate to within 1%, LCD readout in hundredths of a kWh, to 99999.99 kWh
• No conversion factor or multiplier needed
• Non-resettable LCD display
• Usage data is stored even if the meter loses power for 10 years
• Tamper-proof and meter sealable
• Single-phase energy meter, 50A 120-volt 2-wire 60Hz
• Most commonly a white neutral and a black or red hot wire, 110V to 126V between
• Very voltage tolerant the meters will tolerate voltages from 84V to 156V!!
• Perfect for knowing how much power your apartment, office, RV park, industrial space, or any other device that uses 120 volt electricity

• Voltage: 120 volts
• Amperage: Up to 50 amp
• Type: Pass-Through, Single-Phase, 60Hz
• Data: Pulse Output - 800 pulses per kWh
• Weight: 1 lbs
