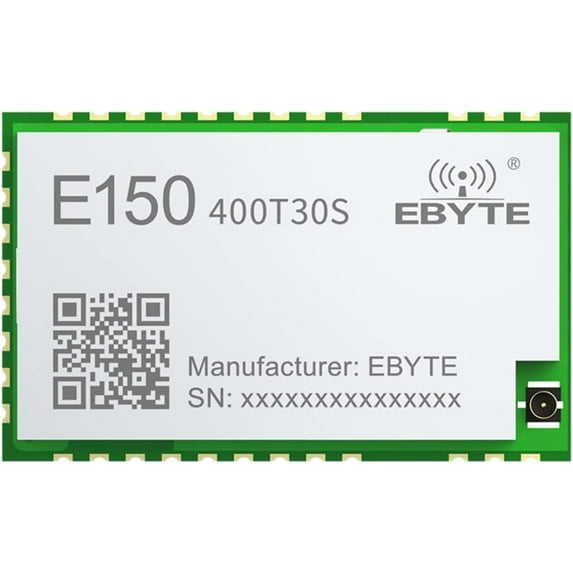

EBYTE Lora Digital Analog Wireless Acquisition Module 410.125-493.125MHz E150-400T30S Low Power 30dbm 8KM 2.4k-62.5kbps SMD Modbus IPEX Built in PA+LNA AIR Wake Up

Product DescriptionFeatures
Support advanced LoRa modulation method, with the advantage of long-distance anti-interference;
Built-in PA+LNA, the communication distance can reach 10km under ideal conditions, and the transmission
distance is better than traditional GFSK;
Support air wake-up (ultra-low power consumption), suitable for battery applications;
The maximum transmit power is 1W, and the software can be adjusted in multiple levels;
Support global license-free ISM 433MHz frequency band, frequency range: 410.125-493.125MHz, channel
spacing 1MHz;
Support data transmission rate of 2.4k-62.5kbps;
Support 3.3-5.2V power supply, and the best performance can be guaranteed if the power supply is greater
than 5V;
Support standard Modbus RTU protocol;
Support various configuration software/PLC/touch screen;
4-way switch input DI;
4-way switch output DO (DO1, DO2 open-drain output, DO3, DO4 push-pull output);
5-channel 12-bit ADC channel acquisition (2-channel voltage acquisition, 1-channel power supply voltage
acquisition and 2-channel current acquisition);
2-channel 8-bit DAC output, only supports floating-point voltage value output;
2-channel PWM output, frequency range 25 Hz-65535 Hz, multi-level duty cycle adjustable;
Support 1-247 Modbus address settings, 0 is the public address;
Support sending non-local Modbus addresses to other networked LoRa devices;
Support transparent transmission of non-Modbus commands
UART to RS485 control pin (external conversion chip is required);
Support 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 and other baud rates;
Support low power consumption mode;
Support direct access of E22 series modules;
Using industrial-grade crystal oscillator, industrial-grade standard design, support long-term use at -40+85
IPEX interface, external antenna can be installed.
