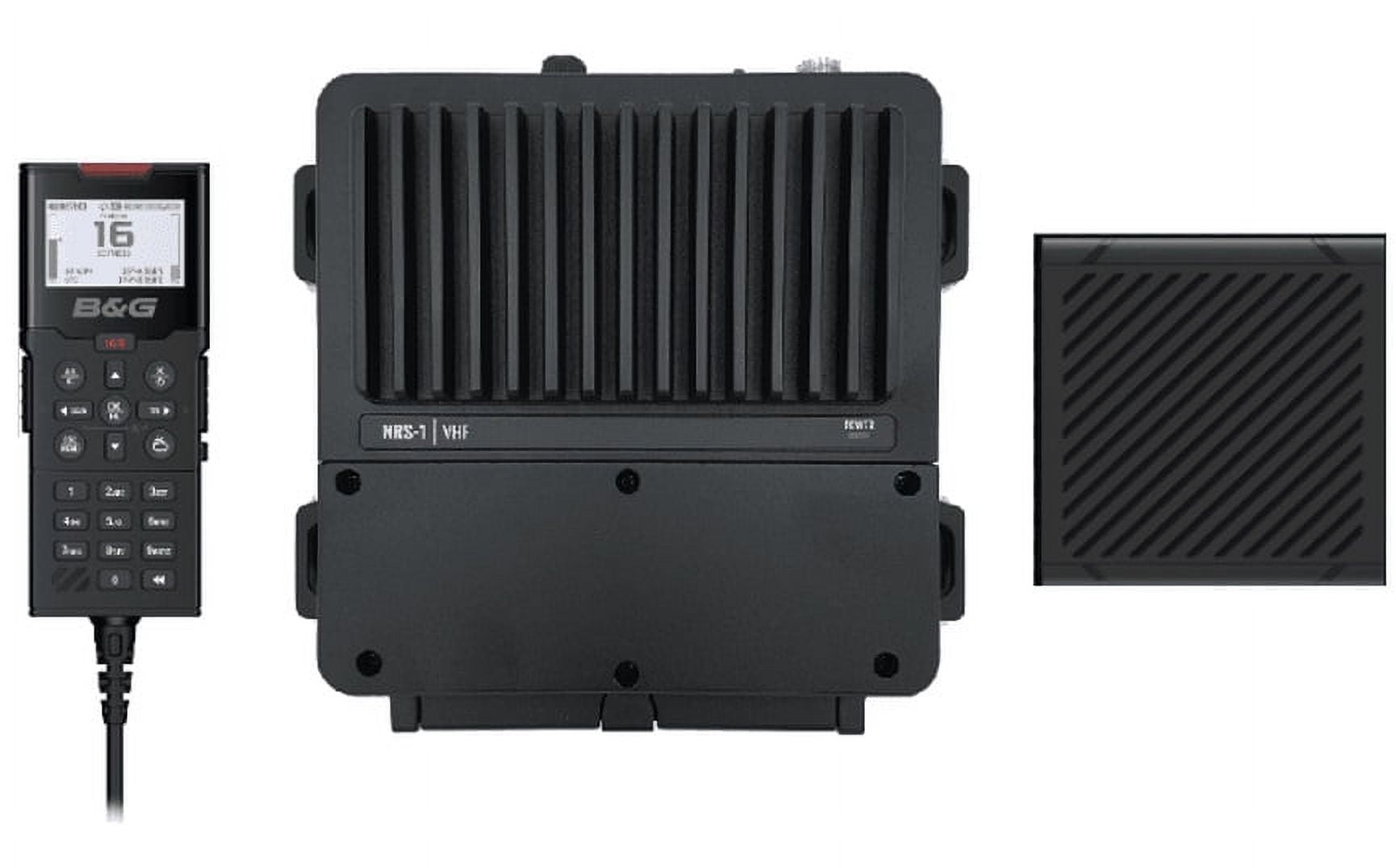

B&G 000-15644-001 V100 VHF System

B&G V100 Blackbox VHF Radio System Model: 000-15644-001 Class D DSC approved VHF radio Integrated GPS receiver Connect up to 4 wireless and 4 wired handsets Add an optional loudhailer and up to 4 external speakers NMEA 0183® and NMEA 2000® connectivity 60 second audio rewind Configurable external speakers with volume offsetting Handset backlight settings can be grouped with NMEA2000 backlight groups so MFD’s and VHF Radios can have backlight controlled together Track Buddy — track up to 5 "buddies" using their VHF MMSI Stay safer on the water with the B&G V100 VHF marine radio. With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board. Includes NRS-1 VHF Blackbox module and one H100 wired handset and one SP100 speaker. Add up to 4 total wired handsets, 4 speakers and 4 wireless H60 handsets. The V100 comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio’s display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind. Specifications System Features Yes Local/Distant control: Yes Position polling: Yes Group call: Yes Call logs: Yes - 20 individual and 10 distress Channel naming: Yes Handset naming: Yes Dual watch / Tri watch: Yes Favourite channel scan: Yes All scan: Yes User programmable MMSI: Yes User programmable ATIS ID: Yes MMSI and NAME directory: Yes - 50 vessel contacts and 20 group contacts Software updates: Yes, via NMEA 2000 NRS-1 - BLACKBOX Power supply: 12 V DC battery system Nominal operating voltage: + 13.6 V DC Low battery alert: 10.5 V DC +/- 0.5 V Over voltage protection: > 15.8 V +/- 0.5 V Current drain (transmit): ? 6 A @ 25 W / 1.5 A @ 1W (12 V DC) Current drain: NRS-1 (standby, 1 FHS): Less than 400 mA in standby Replacement fuse: 10 A, mini-blade type Temperature range: -20 C to +55 C (-4 F to 131 F) VHF antenna connector: SO-239 (50 ohm) GPS antenna connector: SMA (female) Wireless connector: RP-SMA (female) Compass safe distance: 0.5 m (1.5’) NMEA 0183 input NRS-1 / NRS-2: RMC, GGA, GLL, GNS NMEA 0183 output NRS-1 / NRS-2: DSC, DSE, MOB, VDM External Speaker output power: 4 W @ 4 ohm x 4 outputs External speaker: 4 ohm, minimum 5 Hailer output power: 25W @ 4 ohm Hailer speaker: 4 ohm, minimum 30 W Waterproof: IPx5 Weight: 1.46 kg (3.2 lbs) Transciever Usable channels (country specific): International, USA, Canada, Weather Channel spacing: 25 KHz Frequency stability: ± 5 ppm Frequency control: PLL DSC mode: Class D (Global) with dual receiver (individual CH70) Transmitter Transmitter Frequency range: 156.025 - 157.425 MHz Output power: 25 W (23 ± 2) / 1 W (0.8 ± 0.2) Transmitter protection: Open / short circuit of antenna WIRELESS SPECIFICATION Wireless standard: 802.11 b/g/n20 Operating frequency: 2412~2472 MHz (for EU); 2412-2462 MHz (for US) Tx Power (802.11 b - 11 Mbps): 9.77 dBm (Declaration for EU Compliance) What's in the Box: NRS-1 Marine VHF System Blackbox HANDSET,H100,WIRED SP100 Speaker WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
