Baja Design 447820 Squadron Sport A-Pillar Kit For Polaris RZR XP1000

Our engineers came up with a quick, sturdy, and low profile design to mount lights on the cage of your RZR 1000. You will be able to mount these with ease, and have a range of Baja Designs auxiliary lighting to choose from.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 Percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 3,150 Utilizing 4 LEDs
• Wattage/Amps: 26W / 2A
• Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
• Weight: 12 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

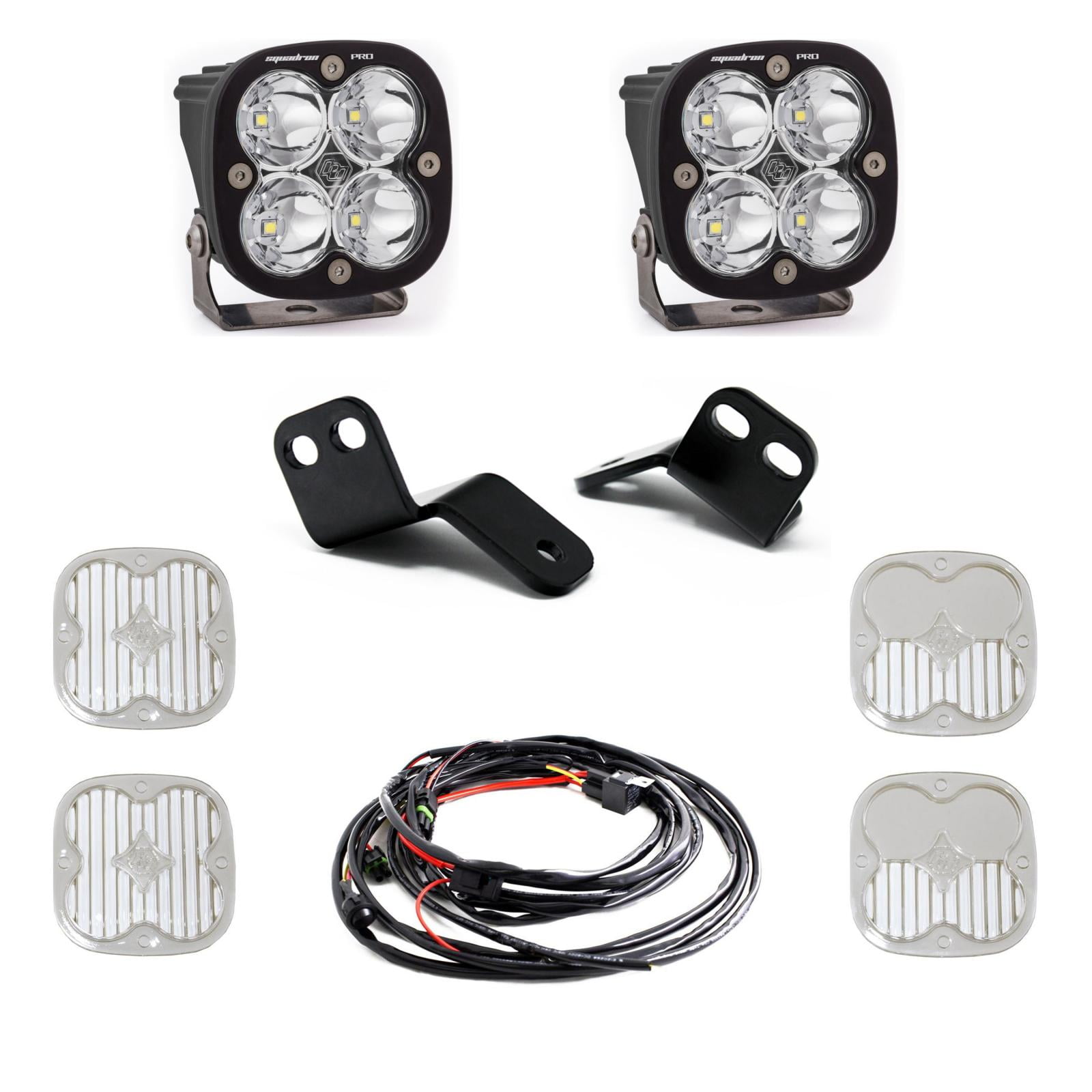

Includes

• x2 A-Pillar Brackets
• x2 Squadron Sport Spot LED
• x2 Squadron Wide Cornering Lens
• x2 Squadron Driving Combo Lens
• x1 Wiring harness
• Hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
