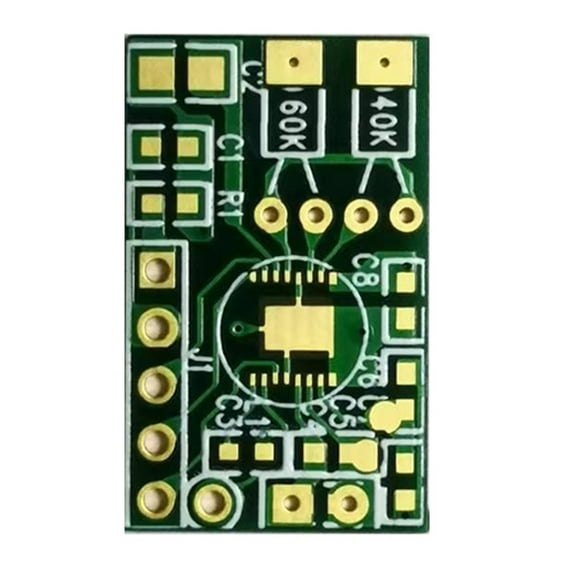

DCF77 Receiver Module Radio Time Module Radio Clock Radio Module Without Antenna

Describe:
DCF receiver module tuned to time signal transmitter DCF77 (Frankfurt 77.5 kHz). The antenna induction signal is sent to the IC for amplification, demodulation, and then identified by the MCU, so that the date and time of the timing center are completely consistent.

Below you will find important setup and circuit diagrams.

Specifications:
Product number: DCF-1060N-MAS
RCCM category: DCF/77.5KHz single frequency module
PCB size: 22.0x13.5x1.0mm/FR4
Antenna size: AR10x60mm/High Q
Nominal frequency: 77.5KHz±300Hz
Sensitivity: 26±2dB
Receiving IC: MAS6181B
Operating voltage: 1.1...3.3 V
Current consumption: 85 µA max
Receiving frequency: 77.5KHz
Board size (without antenna) LxWxH: 22x13.5x1 mm
Antenna quality: LxØ: 60x10mm
Scope of delivery: 1 piece

• Connect:
⇒ Ground = Pin G
⇒ Operating Voltage = Pin V
⇒ data = pin T
⇒ Power On/Off = Pin P2
• Important note:
⇒ PIN P1 is an on/off switch and must be set to logic low.

Note: The single frequency module cannot switch between different frequencies of DCF/WVB/HBG/BPC. JJY dual frequency module can switch between 40K/60K two frequencies. As a single-frequency module, it can only receive signals in this frequency band.

Package Included:
1*Receiver module(without antenna)

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
