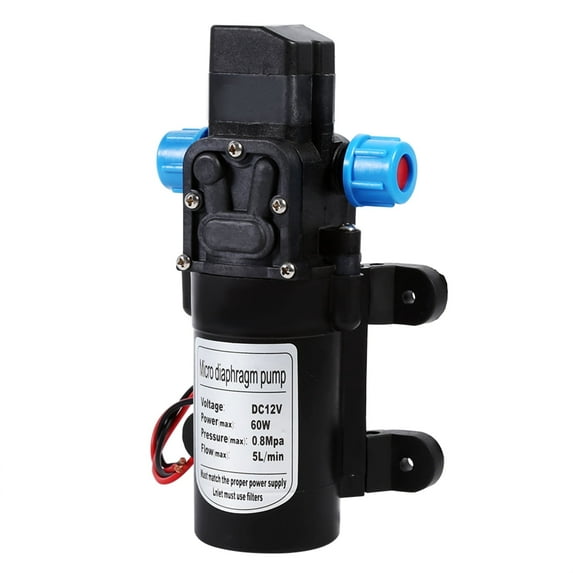

DC 12V Water Pumps, 60W DC 12V 116Psi Self Priming Pumps, 12 Volt High Pressure Micro Electric Diaphragm Water Pumps With Pressure Switch For Caravan Camping Boat Garden Sprinklers, 5L/Min

Description:
This DC micro diaphragm with a pressure switch will be automatically cut off when the pressure of water outlet is big enough. And runs again when the pressure is going down. It is not a idea let this runs dry for too long. This type of product can be applied to occasions, which have demand for energy conservation and frequent switching, such as machine washing, feeding water to a solar energy system, and remote automatic controlling system of conveying water and suspending water supply, etc.

Specifications:
Volts: DC12V
Power: 60W
Flow Rate: 5L/min
Maximum Working Pressure: 116psi 0.8MPA
Suction Lift: 1.5 meters
Lift: 50 meters
Size: Approx. 9.9 x 16.7cm / 3.9" x 6.6"
Line Length: Approx. 29cm / 11.4"
Interface Outer Diameter: Approx. 10.8mm / 0.4"
Interface Inner Diameter: Approx. 6mm / 0.2"
Package Weight: 688g
Application: Widely used in general industrial equipment, chemical equipment, agriculture lawn and garden, vehicle modification, vehicle cleaning, water purification and water treatment equipment and other industries.

Instructions:
1. The direction with a small on the water is the water outlet.
2. The wires are not divided into positive and negative poles.
3. The can be placed in any direction.

Package Included:
1 x Self Priming

Note:
1. Do not soak in water.
2. The pressure adjustment screw cannot be adjusted at will. The pressure has been adjusted before leaving the factory. The stop pressure can be finely adjusted the middle screw of the black plastic cover on the top of the , clockwise to increase the stop pressure, counterclockwise to reduce the stop pressure
3. Impurities cannot be pumped in, otherwise the will easily be blocked and the pressure will drop to no water.
4. The shorter the inlet pipe, the better, the longest should not exceed 1.5 meters, and the outlet pipe can be as long as possible within Yangcheng range. Use a tube with an inner diameter of 8mm and an outer diameter of about 12mm
5. Do not strong acid and strong alkaline liquids.

Common faults and troubleshooting:
1. When the is not operating, check whether the two wires behind the motor are loose.
2. When the diaphragm is not used for a long time, the head will have no suction. Just drop a few drops of water into the port and run for a few minutes, and it can be used normally when the sound changes.
