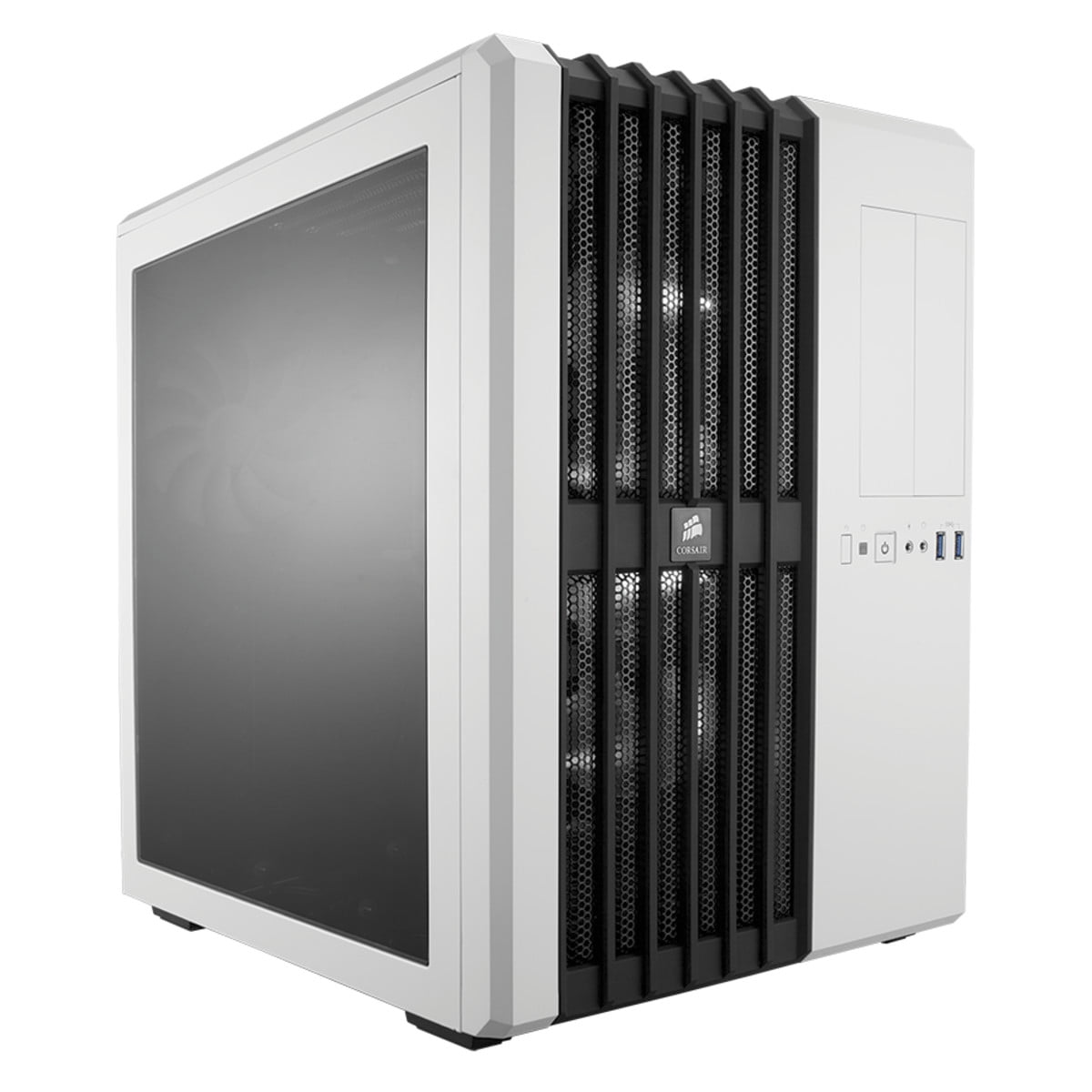

Corsair Carbide Air 540 Arctic White High Airflow ATX Case

Direct Airflow Path™ cooling for revolutionary performance. The unconventional design of Carbide Series Air 540 utilizes dual chambers to deliver cooler air to your CPU, graphics cards, motherboard, and memory without your drives or power supply getting in the way. The included custom Air Series AF140L intake and exhaust fans provide great airflow performance at lower noise levels than typical case fans. And, you can mount up to six 120mm or five 140mm fans, with 280mm top radiator support and room for a 360mm radiator on the front panel. Like all Corsair cases, Carbide Series Air 540 is designed for fast, neat, and satisfying builds. The tinted, oversized flush-mount side window lets you show off your work.

---

General Information
Manufacturer: Corsair
Manufacturer Part Number: CC-9011048-WW
Brand Name: Corsair
Product Line: Carbide
Product Model: Air 540
Product Name: Carbide Series Air 540 Arctic White High Airflow ATX Cube Case
Product Type: Computer Case

Technical Information
Motherboard Supported: ATX, EATX,µATX, Mini ITX
Number of Fans Supported: 5
Number of Fans Installed: 3
Fan Size Supported: 5.51"
Installed Fan Size: 5.51"
Features: Water Cooling Holes

Bays
Number of External 5.25" Bays: 2
Number of Internal 3.5" Bays: 2
Number of Internal 2.5" Bays: 4
Number of Total Expansion Bays: 8

I/O Expansions
Number of Total Expansion Slots: 8

Interfaces/Ports
Total Number of USB Ports: 2
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes

Power Description
Power Supply Installed: No
Number of Power Supplies Supported: 1
Power Source: Power Supply

Physical Characteristics
Color: Arctic White
Material: Steel, Plastic
Cooler Type: Liquid Cooler
Form Factor: Mid-tower
Height: 16.3"
Width: 13.1"
Depth: 18"

Miscellaneous
Package Contents: Carbide Series Air 540 Arctic White High Airflow ATX Cube Case Accessory Kit Quick Start Guide

Warranty
Limited Warranty: 2 Year
