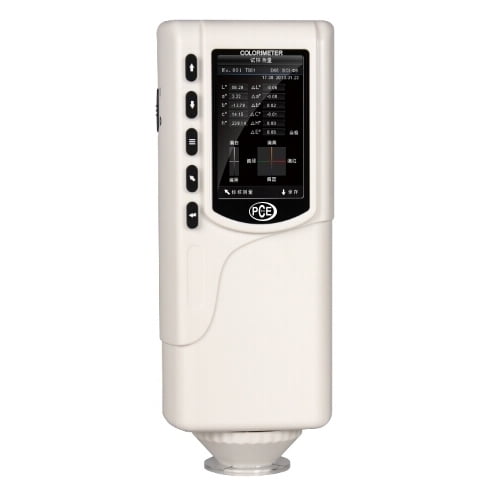

Colorimeter PCE-CSM 5

- Measuring geometry: 8°/d
- Measuring aperture: Ø 4 mm, Ø 8 mm (exchangeable)
- Sensor: Silicon photoelectric diode
- Color spaces: CIE LAB, XYZ, LCh, RGB, LUV
- Color difference formula: ΔE* ab, ΔE( h), ΔE* uv, ΔE* 94, ΔE*cmc ( 2: 1), ΔE*cmc ( 1: 1), ΔE* 00
- Other color parameters: WI ( E313, CIE, AATCC，Hunter )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCII
- Observation angle: CIE 10°
- Light source: D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
- Data on display:
Colorimetric value
Color difference (value/graph)
PASS/FAIL result
Color offset
- Measurement time: 0.4 s
- Repeatability:
Standard deviation within ΔE*ab 0.03
Average of 30 measurements of standard white plate
- Error between Equipment: ΔE* ab 0. 2
- Storage: 100 reference values, 20,000 samples
- Interface: USB / RS-232
- Display: TFT 2.8" (16:9)
- Power supply: Rechargeable lithium-ion battery 3.7V @ 3,200-mAh
- Battery life: Approx. 5,000 measurements
- Lamp life: 5 years, more than 1.6 million measurements
- White calibration
- Determination of reference values and samples
- Exchangeable measuring apertures
- Rechargeable lithium-ion battery
- Suitable for many different surfaces
- Easy to use
- Incl. PC software
