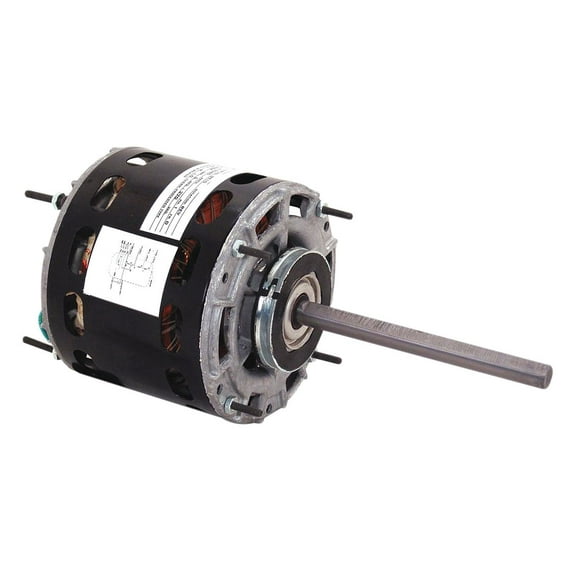

Century 1/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 208-230 Voltage - 9719

Direct Drive Blower Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type PSC, Enclosure Open Air-Over, HP 1/4, Nameplate RPM 1075, Voltage 208-230, Full Load Amps 2.0, Hz 60, Phase 1, Frame 42Y, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous Air Over, Number of Speeds 3, Mounting Ring, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5", Length Less Shaft 5-11/16", Shaft Dia. 1/2", Shaft Length 5-1/4", Shaft Type Flat, Capacitor Included No, Capacitor Required 2MDV4, Resilient Ring Dia. 2-1/2", Ring to Ring Center 5-5/16", Stud Location Both Ends, Stud Pattern 2-5/16 x 4", Stud Size #8-32 x 1/2", Bolt Circle Dia. 4-5/8", RPM Range 1001-1100, Standards UL Recognized, CSA Certified, Application Furnace Blower, Unit Heater, Ventilators and Other Shaft Mounted Fan and Blower Applications, Includes Resilient Mounting Ring
