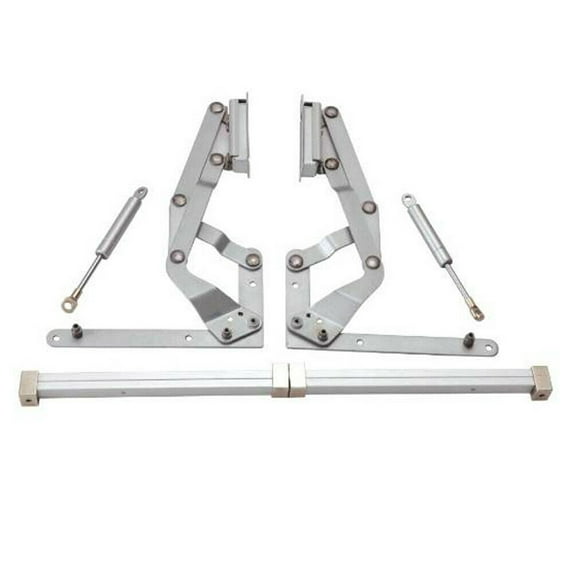

Cabinet Door Hinges Vertical Swing Lift Up Stay Pneumatic Arm Kitchen Furniture

Cabinet Door Hinges Vertical Swing Lift Up Stay Pneumatic Arm Kitchen Furniture

Specification:

Material: Zinc Alloy + Iron
Surface Treatment: Nickel Plating
Color: Grey
Product Name: Pneumatic Vertical Upturn Support
Product Features: Durable, Silent Mute, Etc.
Product Application: Upturned Door and Aluminum Frame Door of Cabinet
Applicable Cabinet Size：
Load-bearing Capacity（Withstand Door）: ≤ 5KG
Width: 60-90cm (Stretchable, and 60-90cm long doors are suitable)
Height: Min 32cm (The open height of the support is only about 37cm, so the body of cabinet cannot appear as a whole when over 37cm long cabinet door is fitted with the support.)
Depth: Min 22cm
Depth: Min 22cm

Installation Steps:

1. Fit the Pneumatic Lift on the Arm.
2. Fix the Arm to the Side of the Cabinet.
3. Measure the Center of the Bracket Hole.
4. Secure the Bracket to the Rear Side of the Door.
5. Fixed Rod.
6. Adjust the Bracket Screws to Get the Perfect Door Closure.

Packing Including：

1 Set Cabinet up Stay Door Lift

Applicable Cabinet Size：

Load-bearing Capacity（Withstand Door）: ≤ 5KG
Width: 60-90cm (Stretchable, and 60-90cm long doors are suitable)
Height: Min 32cm (The open height of the support is only about 37cm, so the body of cabinet cannot appear as a whole when over 37cm long cabinet door is fitted with the support.)
Depth: Min 22cm
Depth: Min 22cm
